INSTALLATION INSTRUCTION
GRILLE GUARD FOR 07 HYUNDAI SANTA FE
PART No.
Page 1 of 3

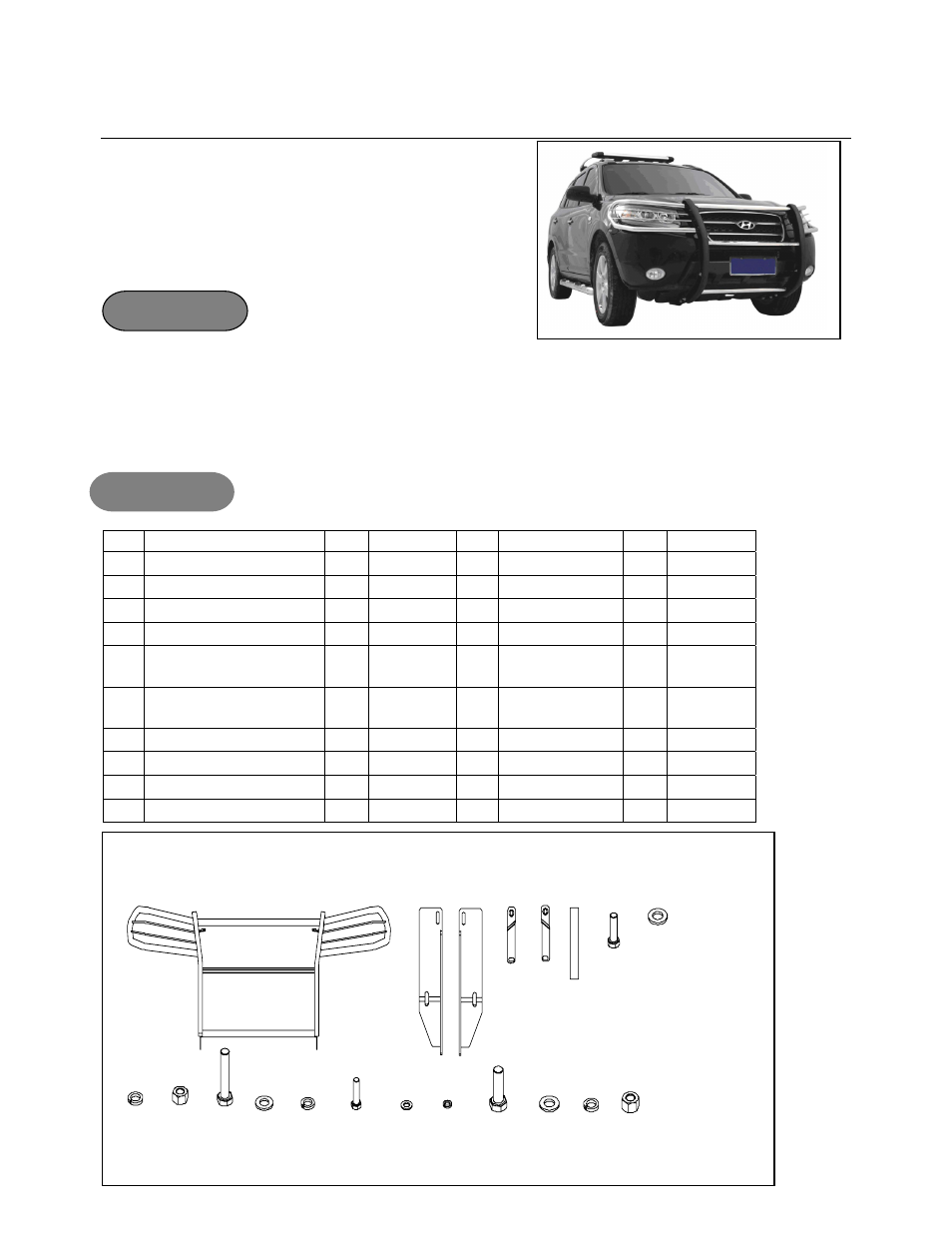

PART LIST
λ Please read this installation Menu before installing this part. When install it, pay
attention to protecting your vehicles.
λ You may need to periodically to re-tighten the fasteners on your grille guard, such
as one month or two month.
No. Name Qty RemarKs No. Name Qty RemarKs
○ 1 Grille guard 1 ○
11
Hex bolt 4 M8×60
○ 2 Left bracket 1 ○ 12 Flat washer 4 8mm
○ 3 Right bracket 1 ○
13
Spring washer 4 8mm
○ 4 Connecting plate(left) 1 ○ 14 Hex bolt 2 M6×35
○ 5
Connecting
plate(right)
1 ○
15
Flat washer 2 6mm
○ 6
One side black
sticker
2 ○
16
Spring washer 2 6mm
○ 7 Hex bolt 2 M8×30 ○ 17 Hex bolt 4 M12×35
○ 8 Flat washer 4 8mm ○ 18
Flat washer 8 12mm
○ 9 Spring washer 2 8mm ○
19
Spring washer 4 12mm
○ 10
Hex nut 2 M8 ○ 20
Hex nut 4 M12
ATTENTION
○ 1 ○ 2 ○ 3 ○ 4 ○ 5 ○ 6 ○ 7 ○ 8
○ 9 ○
10
○
11
○
12
○
13
○
14
○
15
○
16
○
17
○
18
○
19
○
20
