Aries Automotive 6052 - Manual (Page 2)

Page 1 of 2 2/22/07 (AM)
(1) 10mm x
25mm Bolt, (2)
10mm Washers,
& (1) 10mm
Nylock Nut
(1) 10mm x
35mm Bolt, (1)
10mm Washers,
& (1) 10mm Nut
Plate
Passenger Side Shown
(1) 8mm x 25mm
Bolt, (2) 8mm
Washers, & (1)
8mm Nylock Nut
(1) 10mm x
25mm Allen
Bolt, (1) 10mm
Washers, & (1)
10mm Nylock
Nut
Passenger Side Shown

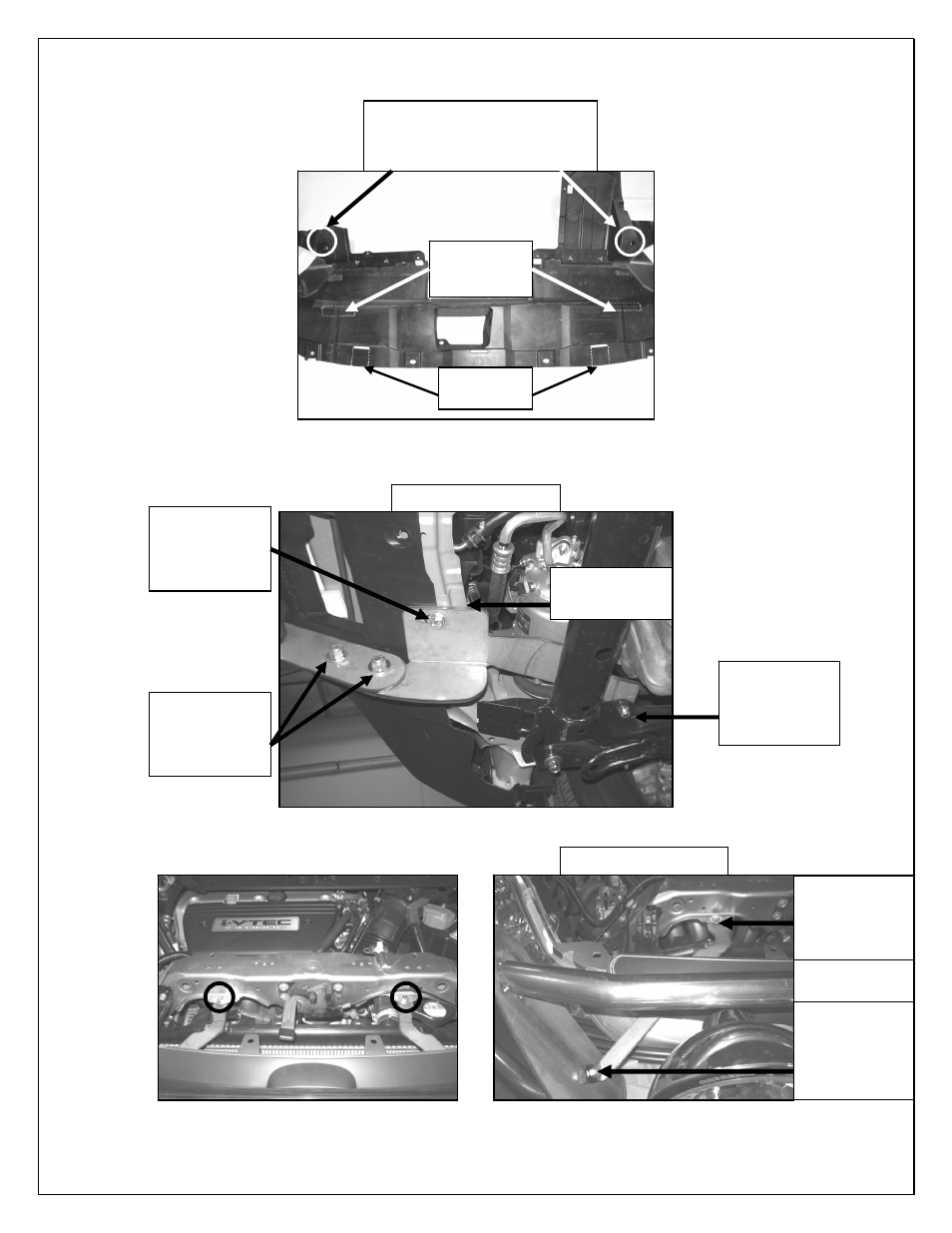

Figure 1
Figure 2
Figure 3 Figure 4
Cut about
1 ¾” x 1 ¾”
Cut a slot
about
3 ½” x 1”
(2) 12mm x
30mm Bolt, (4)
12mm Washers,
& (2) 12mm
Nylock Nut
Do not install fasteners on these
locations when re-installing, this
will be the inner mounting location
on the bracket
Top Support Mounting Location
Insert Nut Plate
trough here
