Aries Automotive 4071-2 User Manual
Page 2

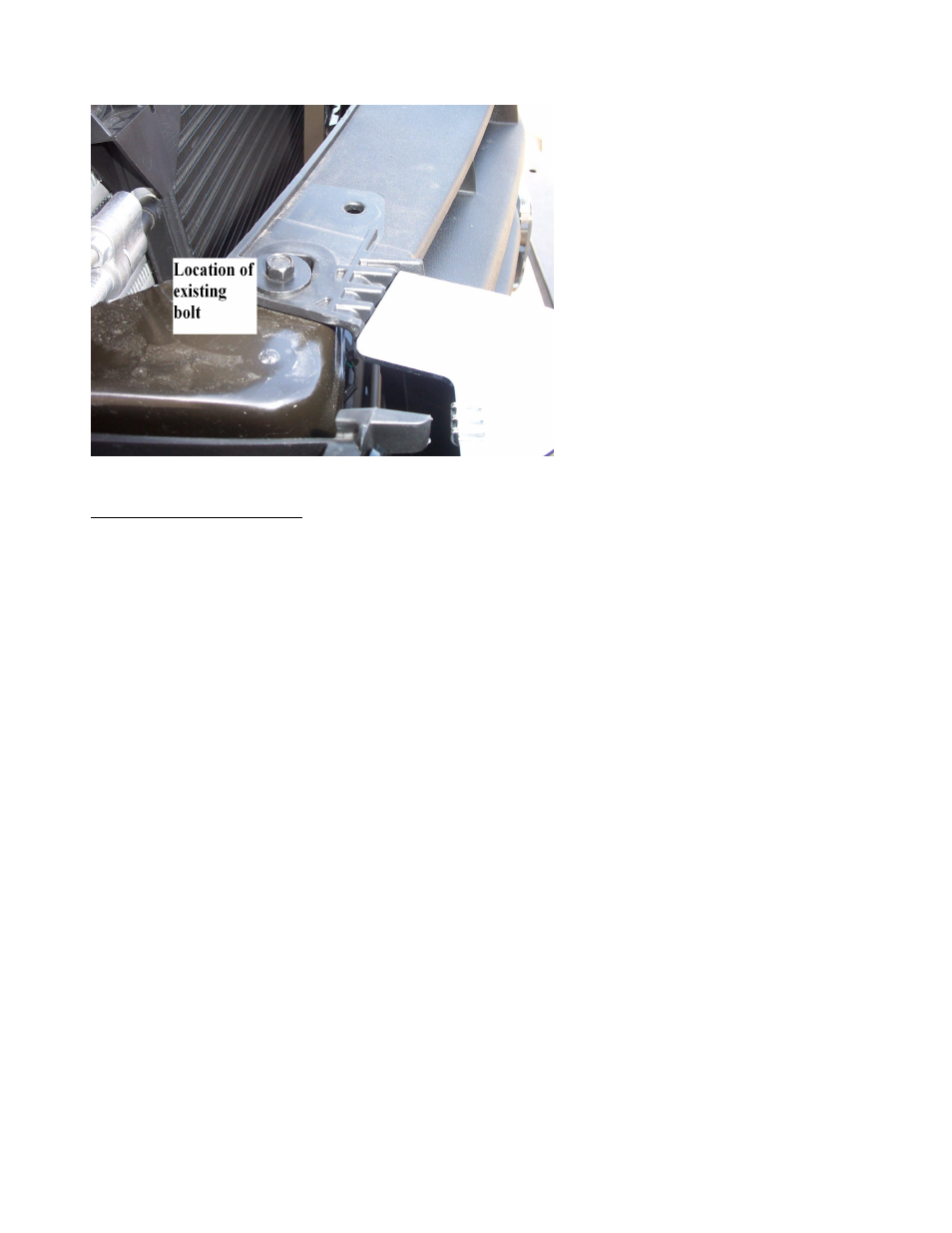

Image 1
Installing Guard to Brackets
1. Line up the 3 holes on the mount bracket with the lower portion of the guard.
2. Slide the ¼ spacer plates between the guard and mount brackets. Now use the ½ x 1 ½ bolts, ½
washers and ½ lock nuts to attach the mount brackets, spacers and guard together.
3. The top brackets are attached to the hole on wing of the guard. Use the ¼ button screws to attach
top bracket to the wing.
