GRILLE GUARD
2001-02 SILVERADO 2500HD-3500
Page 3 of 3 5/16/14 Rev 1(DP)
(2) 12mm x 40mm Hex Bolts
(2) 12mm Flat Washers
Bolt the Frame Bracket to the
outside of the frame channel and to
the inner tow hook.
On models without tow hooks, bolt
Bracket to frame with:
(2) 12mm x 40mm Hex Bolts
(4) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
Remove tow hooks if equipped
Move driver side tow hook to
passenger side, passenger
side tow hook to driver side to
clear Grille Guard Brackets

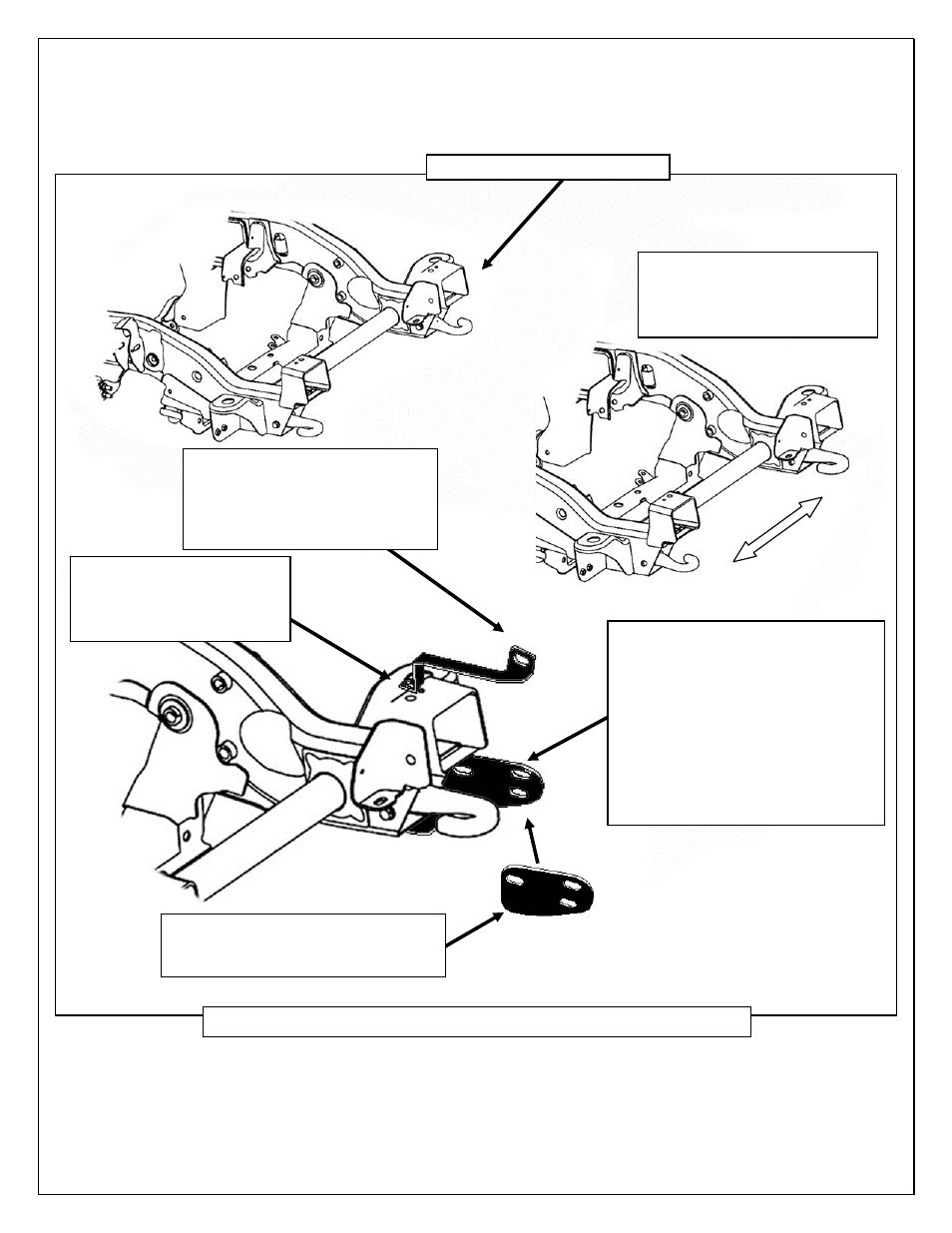

Driver/left side Top and Frame Mounting Bracket installation illustrated
Reuse the factory top
bumper bracket bolt with:
(1) 12mm Lock Washer
(1) 12mm Flat Washer
Bolt the Top Bracket to the
Grille Guard with:
10mm x 25mm Button Head Bolt
(2) 10mm Flat Washers
10mm Nylon Lock Nut
If necessary, insert Spacer between
Bracket and Grille Guard for
additional side to side adjustment
