Page 3 of 3 12/05/08 Rev1

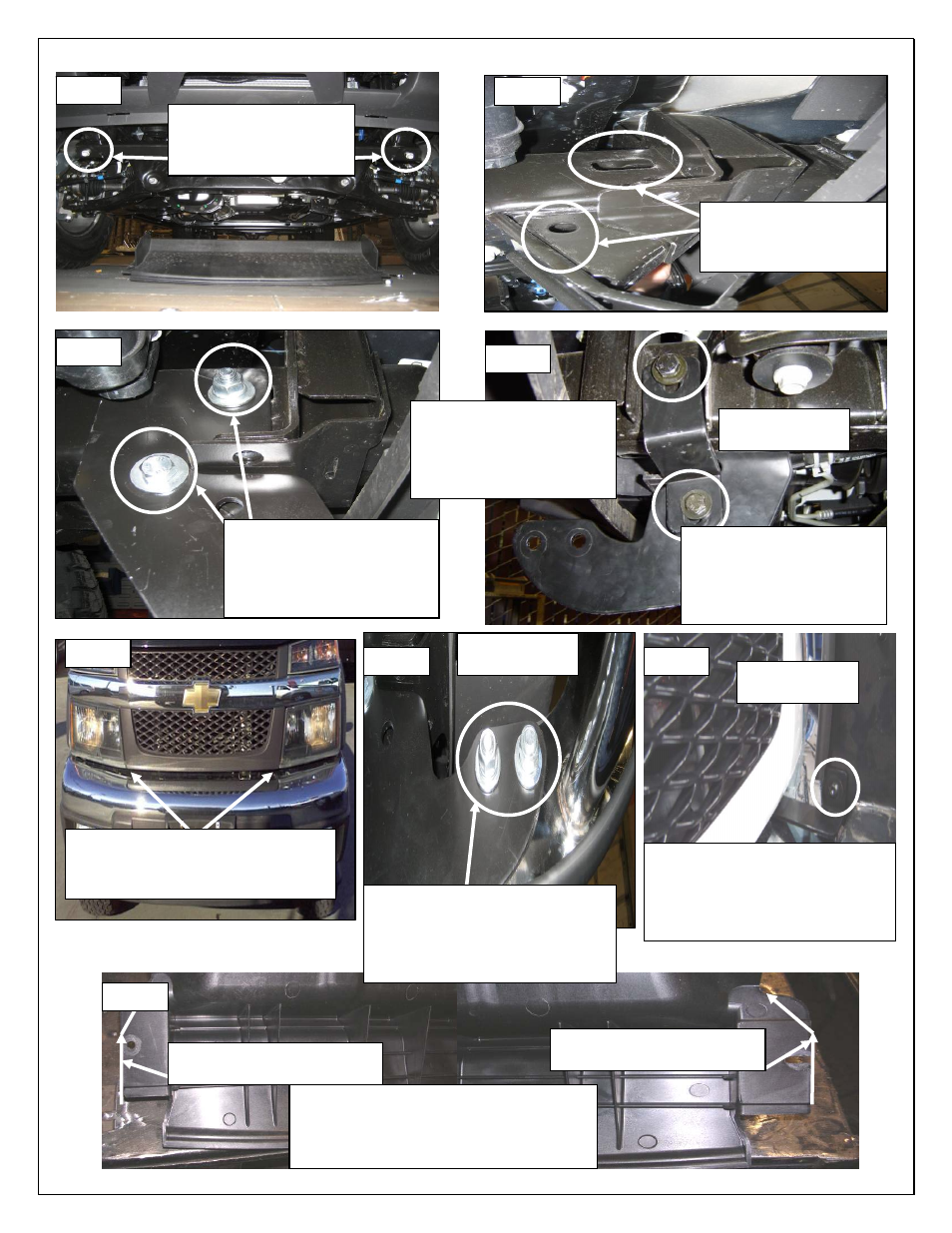

Fig 1
Hold the splash guard up to the mounting
area and mark location for cutting to clear
brackets. Cut only what is needed to allow
brackets to clear the splash guard.
Fig 3
Splash guard area to trim off
Remove right & left side
factory bolts holding
crossbar on.
Fig 2
Bottom mounting points
for brackets cross bar
removed
Secure brackets with
(2) 12mm x 100mm Hex bolt
(4) 12mm flat washers
(2) 12mm lock washer
(2) 12mm nut
Fig 6
Splash guard area to trim off
Fig 4
Driver/Left side
shown
Fig 2A
Secure brackets with
(1) 12mm x 10mm Hex bolt
(2) 12mm flat washers
(1) 12mm lock washer
(1) 12mm nut
Secure brackets with
(1) 10mm x 40mm Hex bolt
(1) 10mm flat washer
(1) 10mm lock washer
(1) 10mm nut
Location of bumper bolts for upper
brace brackets; loosen bolts to allow
brackets to slip in-between
Fig 5
Secure brackets with
(2) 12mm x 40mm Hex bolt
(4) 12mm flat washers
(2) 12mm lock washer
(2) 12mm nut
Driver/left side
shown
Fig 5A
Secure upper brace brackets with
(1) 10mm Button head bolt
(2) 10mm flat washers
(1) 10mm lock washer
(1) 10mm nut
Driver/left side
shown
