Snorkel MB26J User Manual

Page 19

2. Operation & Specifications

2 - 9

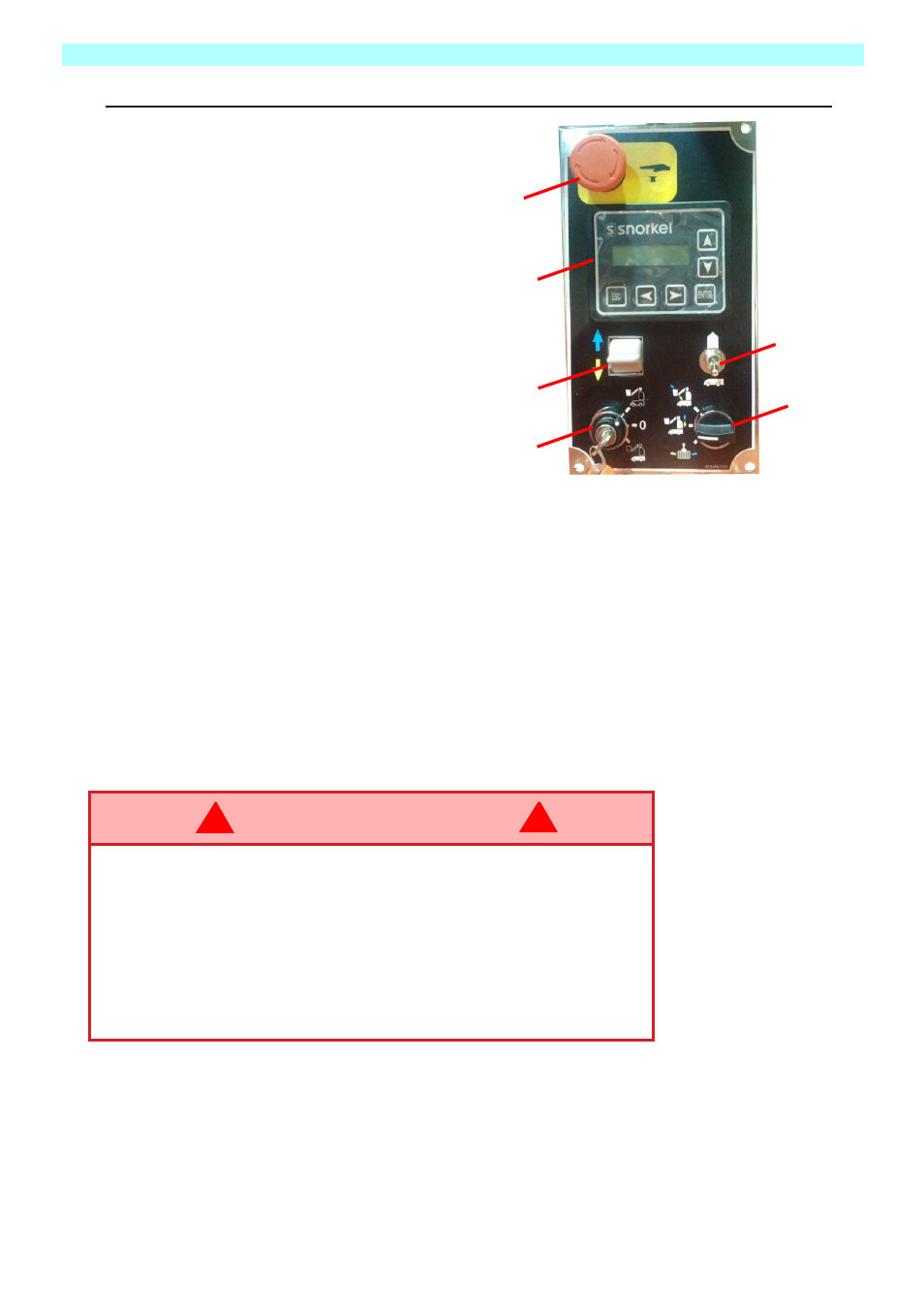

Figure 4: Lower Control Panel

1. Emergency Stop
2. KeySwitch - Platform Controls

- OFF
- Lower Controls

3. Analogue Rocker
4. Selector Switch - Jib

- Mast
- Mast Rotate

5. Enable Switch
6. Ez 230 Display

TYPICAL OPERATION

Raising the mast.
• The Keyswitch must be turned to lower controls (2).
• Select Mast using the selector switch (4)
• Press up and hold the switch (5),
• Activate the Rocker Switch (2) in the direction required.

ELEVATING & LOWERING THE WORK PLATFORM

Before operating the MB20/26J Work Platform it is imperative that the pre-operation Safety

Inspection has been completed and any deficiencies have been corrected. The operator must

also be fully trained in the use of this machine.

Before beginning any operation, the following checks should be carried out.

NOTE: Chassis controls are for service use only.

ENSURE that no other persons are within 1 metre of the machine.

Be aware of the pothole protection bar hazard on both sides of the

machine.
LOOK up and around for obstructions before performing the lift or

drive functions.

DO NOT overload the platform.

DO NOT operate near electrical power cables, keep within national

safety limits.

THIS WORK PLATFORM IS NOT ELECTRICALLY INSULATED.

W A R N I N G
