Chapter 7 – Controls
22 A38E – 8210052
To rotate the turntable counterclockwise press the
turntable rotation button and then pull the joystick
backward, the direction of the yellow arrow.
Platform Level Button
The platform level button (refer to Figure 7.4) is used with
the joystick to level the platform.
To tilt the platform floor upward or away from the
ground press the platform level button and then push
the joystick forward, the direction of the red arrow.
To tilt the platform floor downward or toward the ground
press the platform level button and then push the joy-
stick forward, the direction of the yellow arrow.
Horn
The horn button is at the bottom of the upper control panel
(refer to Figure 7.4).
Press the button to sound the horn.
•
•
•
Platform Rotator
The platform can be rotated 150 degrees, 75 degrees to
either side of the boom using a hand crank. The hand
crank handle can be folded against the crank handle
when it is not in use.
Turn the hand crank (refer to Figure 7.5) counterclock-
wise to rotate the platform to the left and clockwise to
rotate the platform to the right.

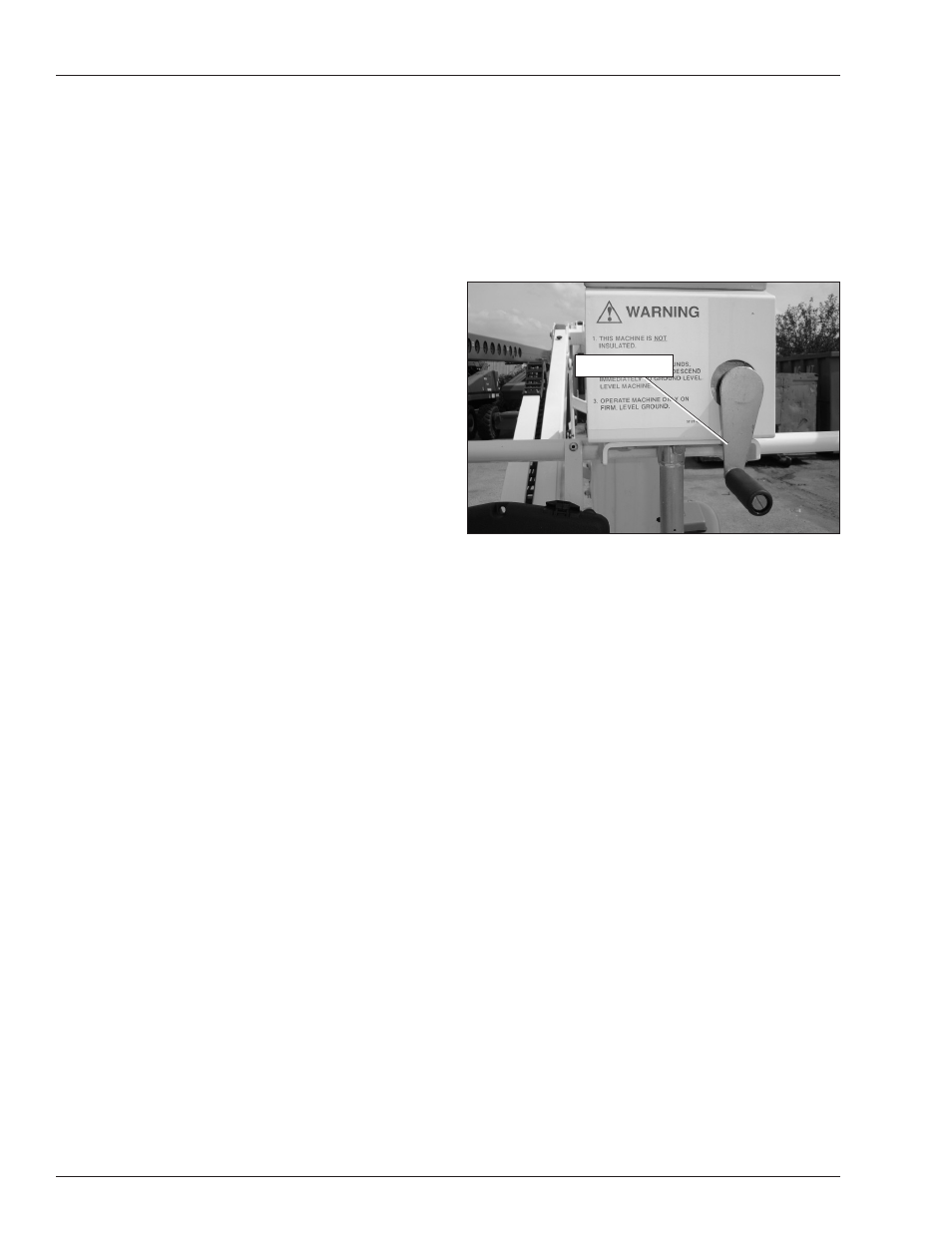

Figure 7.5 – Manual Platform Rotator
Position the platform perpendicular to the booms when
driving or stowing the aerial platform.
•
Hand Crank
