Maintenance
114110-000 X-Series - Operator Manual Page 13
M AINTENANCE
W A R N I N G ! !
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.
B L O C K I N G T H E E L E V A T I N G A S S E M B L Y

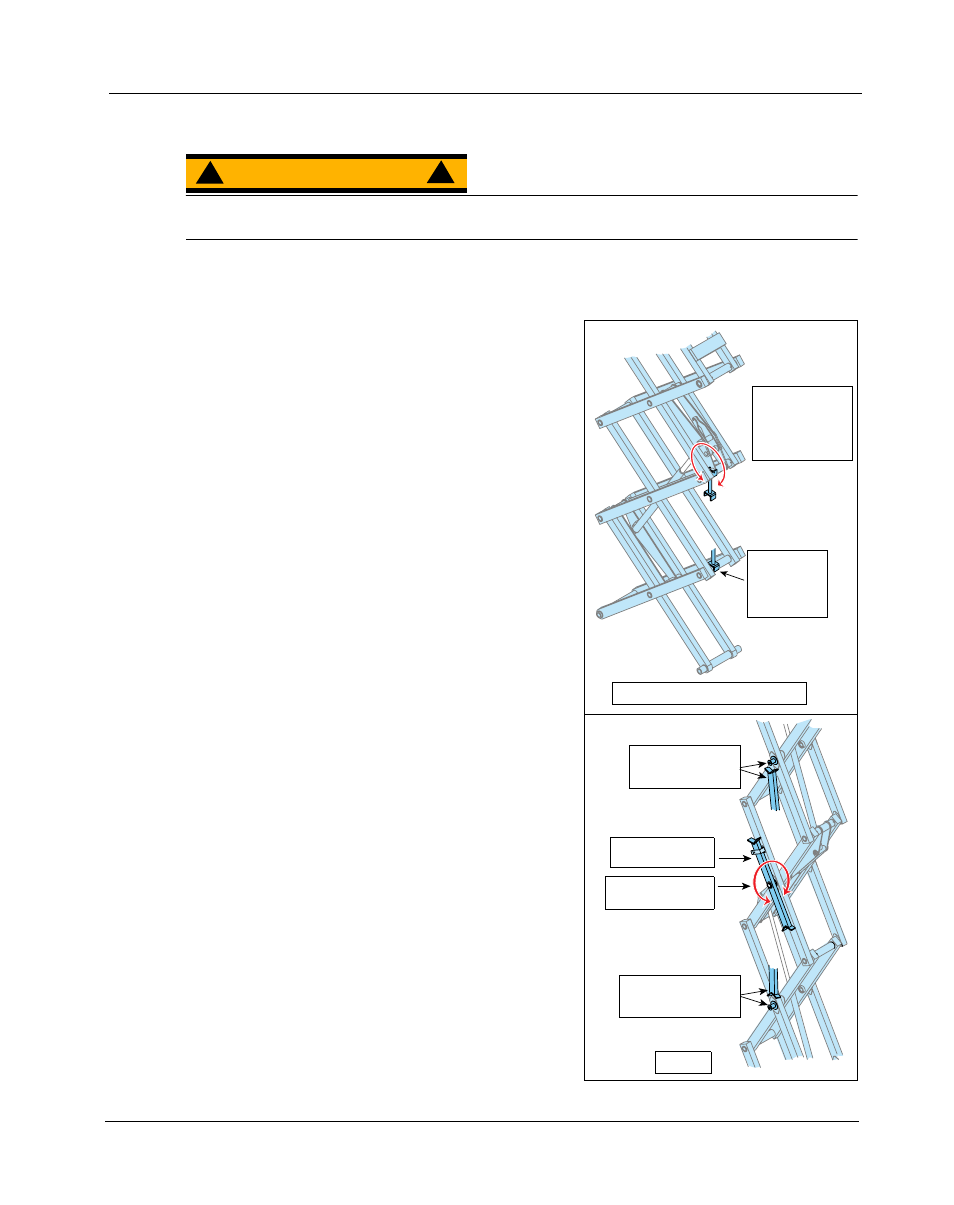

Figure 9: Scissor Brace
S CISSOR B RACE I NSTALLATION
1. Park the machine on a firm, level surface.
2. Pull Chassis Emergency Stop Switch to the ON position.
3. Pull Platform Emergency Stop Switch to the ON position.
4. Turn and hold the Chassis Key Switch to CHASSIS.
5. Push the Chassis Lift/Lower Switch to LIFT to elevate the
platform until the scissor brace can be rotated to the verti-
cal position.
6. X20N, X20W, X26N and X26UN – From the rear of the
machine, lift the scissor brace from its stowed position.
Rotate upward and outward, then down until it is hanging
vertically below its attachment point.
7. X31N – From the left side of the machine, pull the locking
pin securing the brace. Rotate the scissor brace counter
clockwise until it is in the vertical position.
8. Lower the platform by pushing the Chassis Lift/Lower
Switch to LOWER and gradually lower the platform until
the scissor brace is supporting the platform.
S CISSOR B RACE S TORAGE
1. Using the Chassis Controls, gradually elevate the platform
until the scissor brace is clear.
2. X20N, X20W, X26N and X26UN – Rotate the scissor
brace outward and upward over its mounting point until it
rests in the stowed position.
3. X31N – Rotate the scissor brace clockwise until the lock-
ing pin engages.
4. Lower the platform by pushing the Chassis Lift/Lower
Switch to LOWER to completely lower the platform.
Rotate Brace
Clockwise to
Block
Counterclockwise
to Store
Brace Rests
on Weldment
when in
Blocking
Position
X20N - X20W - X26N - X26UN
X31N
Pin Rests on Brace
when in Blocking
Position
Scissor Brace in
Rest Position
Brace Rotates to
Blocking Position
Brace Rests on Pin
when in Blocking
Position
