Specifications
26 T40RT/T46JRT – 1430001
Specifications – T40RT
Aerial Platform
Working height 14.2 m (46′)
Maximum platform height 12.2 m (40′)
Horizontal reach 10.1 m (33′)
Main boom
Articulation -15.5° to +72°
Extension 4.6 m (15′)
Turntable rotation 360° continuous
Turning radius, outside 4.6 m (15′)
Turning radius, inside 1.4 m (4′ 6″)
Tail swing 83.8 cm (33″)
Wheelbase 2.4 m (8′)
Ground clearance 35.5 cm (14″)
Maximum wheel load 3,780 kg (8,330 lbs)
Maximum hard surface contact pressure
4.46 kg/cm² (64 psi)
Weight, EVW approximate
500/600 lb capacity platforms 5,851 kg (12,900 lbs)
750 lb capacity platforms 6,305 kg (13,900 lbs)
Width 2.44 m (8′)
Stowed length 7.6 m (25′)
Stowed height 2.4 m (7′ 11″)
Platform
Standard 99 cm x 244 cm (39″ x 96″)
Rated work load, standard 272 kg (600 lb)
Rated work load, option 340 kg (750 lb)
Option 99 cm x 183 cm (39″ x 72″)
Rated work load, standard 272 kg (600 lb)
Rated work load, option 340 kg (750 lb)
Rotation 150 degrees
Maximum number of occupants 2 people
Optional AC generator 110 V
Optional AC generator 220 V
Optional AC generator 220 V, 3-phase, 12 kw
Function Speed
Turntable rotation
Clockwise 110 to 115 sec 0.7 m/s (2.29 ft/s)
Counterclockwise 110 to 115 sec 0.7 m/s (2.29 ft/s)
Main boom
Up 43 seconds minimum 0.36 m/s (1.18 ft/s)
Down 43 seconds minimum 0.36 m/s (1.18 ft/s)
Extend 32 to 35 seconds
Retract 32 to 37 seconds
Platform rotation 17 to 22 seconds
Drive
High, booms stowed 6.8 km/h [1.9 m/s] (4.25 mph)
Mid, booms stowed 3.2 km/h [0.89 m/s] (2 mph)
Low, booms raised/extended
1.2 km/h [0.33 m/s] (0.75 mph)
Drive System
Standard Four wheel drive
Gradeability 45%
Axle front oscillating
Vertical wheel travel 22.8 cm (9″)
Tires
Foam filled 355/55 D625, 14 ply
Electrical System
Voltage 12 V DC negative chassis ground
Source One - 12 V 550 CCA battery
Fluid recommended distilled water
Hydraulic System
Pressure
Drive circuit maximum 41,368 kPa (6,000 psi)
Boom circuit maximum 19,305 kPa (2,800 psi)
Reservoir capacity 140 l (37 US gal)
System capacity 170 l (45 US gal)
Maximum operating temperature 93°C (200°F)
Hydraulic fluid recommended
Above 0°C (32°F) Mobil EAL Envirosyn 46 H
Consistently between -17°C (0°F) and 0°C (32°F)
Mobil EAL Envirosyn 32 H
Engine
Diesel Kubota V1505-T
Fuel Tank Capacity
Diesel 170 l (45 US gal)
Ambient Air Temperature Operating Range
Celsius -18°C to 43°C
Fahrenheit 0°F to 110°F
Maximum Wind Speed
Gust or steady 45 km/h (28 mph)
Vibration less than 2.5 m/sec 2
Sound Power Level 103 dB(A)
Sound Pressure Level – at work station 91 dB(A)
Group Classification
Heavy Duty – intended life 100,000 load cycles

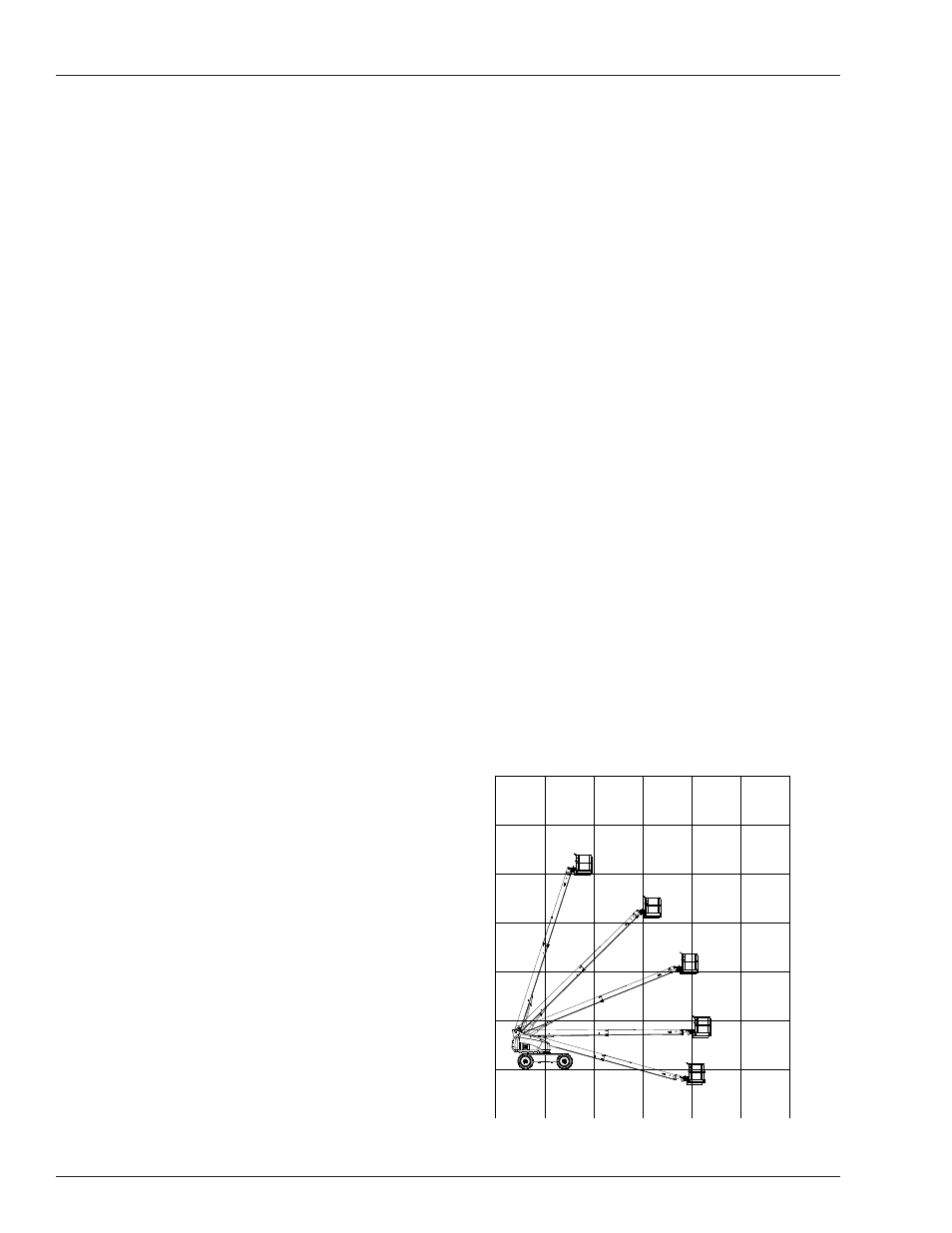

Working Envelope
0
3.0
(10)
9.1
(30)
6.1
(20)
12.2
(40)
Meters
(Feet)
6.1
(20)
0
3.0
(10)
9.1
(30)
12.2
(40)
15.2
(50)
3.0
(10)
15.2
(50)
18.3
(60)
