Chapter 7 – Prestart Inspection

SB85J Fixed Axle – 0112975

6. Latch both straps to secure the tank.

7. Connect the fuel line and open the shutoff valve.

Fuel Line
Visually inspect the entire length of the fuel line. Start at
the fuel tank and trace the line to the engine inspecting
for leaks and damage.

Air Filter
The air filter gauge (refer to Figure 7.6) has an indicator to
show when the filter needs replaced.

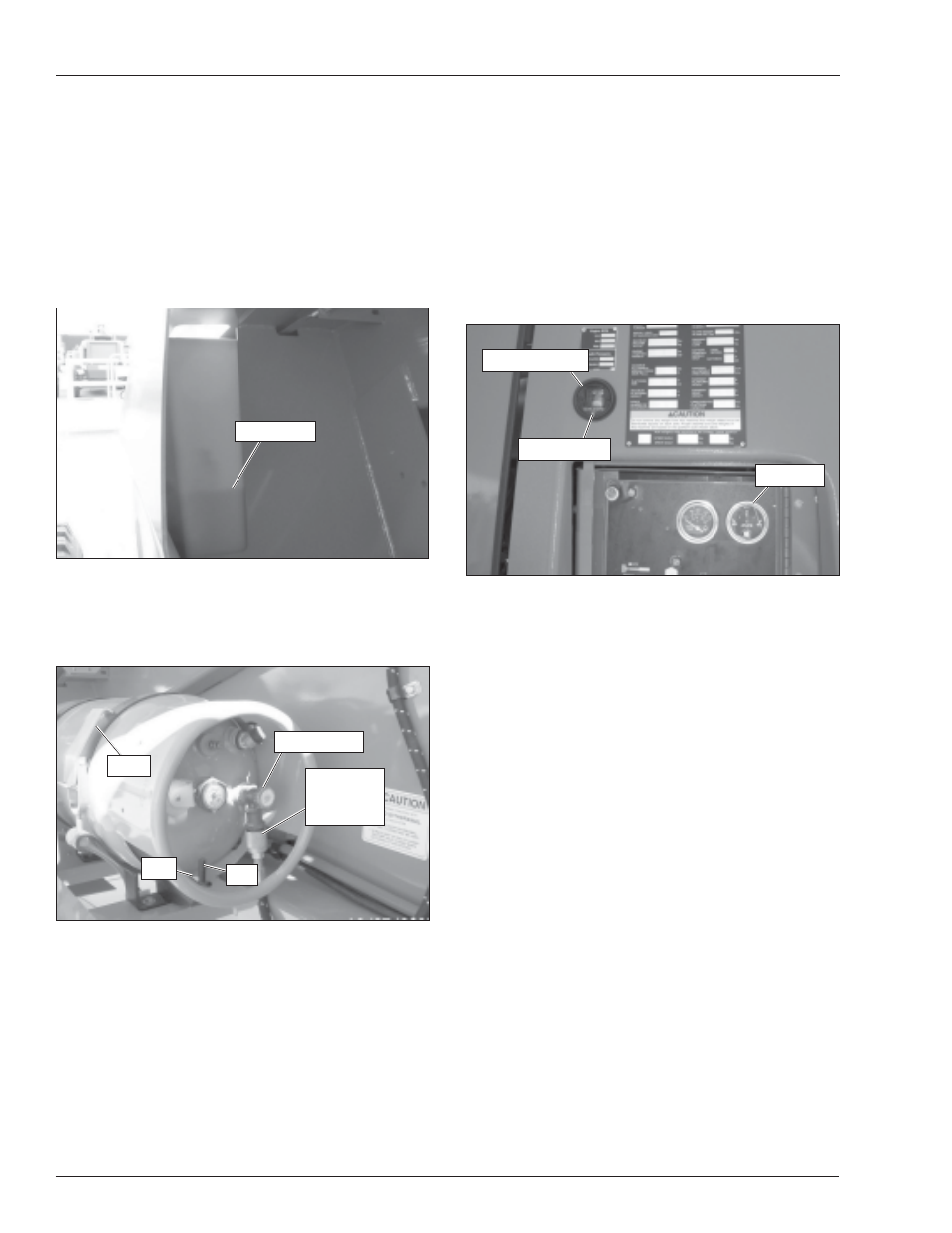

Figure 7.6 – Air Filter

To inspect the air filter:

1. Turn the battery disconnect switch on and close the

cowling door.

2. On dual fuel machines, set the fuel switch to either

LPG or gasoline.

3. At the lower controls, pull the emergency stop but-

ton outward.

4. Insert the key into the controls selector switch and

place the selector in the lower controls position. Press
the start button to turn the engine on.

5. Check the clear zone after running the engine for 30

seconds.

• If the indicator is red, replace the filter.

• If the indicator is clear, the filter is OK.

6. Shut off the engine.

Charging System
When the engine is running, the ammeter needle (refer to
Figure 7.6) should be to the right of “0.” Left of the “0” is
discharging.

Coolant leaks are easily visible on the ground. Check
under the chassis for coolant that has leaked.

Make sure the radiator core and ventilation openings on
the cover are free of bugs, dirt, or foreign material that
might restrict airflow.

Fuel Tank
Check the fuel level (refer to Figure 7.4) and add fuel if
necessary. Make sure the cap is securely fastened on
gasoline or diesel tanks.

Figure 7.4 – Gasoline or Diesel Tank

Use the following procedure to change the LPG tank.

1. Close the shutoff valve (refer to Figure 7.5).

Figure 7.5 – LPG Tank

2. Remove the fuel line from the tank using the quick

disconnect fitting.

3. Pull outward on each latch to release the straps from

the tank.

4. Carefully lift the tank from the cradle.

5. Place a full tank in the cradle making sure the slot in

the tank aligns with the pin.

Fuel Level

Latch

Slot

Shutoff Valve

Quick

Disconnect

Fitting

Air Filter Gauge

Reset Button

Ammeter
