Chapter 4 – Safety Devices
SB85J Fixed Axle – 0112975 15
The overload sensing system is not active when the ma-
chine is being driven with the booms in the stowed posi-
tion. This allows the machine to be driven without the
system sensing an overload due to rough ground condi-
tions.
To eliminate repeated tripping of the system during ma-
chine operation, there is a five second delay in machine
functions following:
• starting the engine.
• placing the drive/boom selector switch in the boom
position when the main boom is below horizontal and
fully retracted.
• removing excess load from the platform.
Engine Protection Systems
A constant tone alarm will sound to warn against high
engine temperature or low oil pressure.
The engine will shut-down if the operating temperature
exceeds a preset level or if the oil pressure is too low for
safe operation. An engine temperature gauge is on the
top of the lower control panel (refer to Figure 4.7).
High Engine Temperature Alarm
If the coolant in a Cummins or GM engine exceeds the
engine operating temperature an alarm will sound and
the engine will shut off.
If the oil in a Deutz engine exceeds 230°F (110°C) an
alarm will sound and the engine will shut off. Any time
there is no alternator current being produced, an alarm
will sound and the engine will shut off. This prevents high
engine temperature if the fan belt breaks.
Do not restart the engine until the condition that caused
the overheating has been corrected.
Low Oil Pressure Alarm
The low oil pressure alarm sounds when the engine oil
pressure is near the lower limit for safe engine operation.
If the alarm sounds, lower the platform to the ground and
then turn the engine off. Do not restart the engine until
the condition that caused the low oil pressure has been
corrected.
If the engine oil pressure falls below a safe operating value
the engine will shut off. The engine can be restarted with
low oil pressure, but it will only run a few seconds before
it shuts off again.
Horn
The horn may be used to warn personnel on the ground.
The horn button is on the right side of the upper control
panel (refer to Figure 4.8). The horn is operational when
the machine is set up for operation from the upper con-
trols.
If the platform becomes significantly overloaded, or if an
upward force on the platform exceeds approximately
2225 N (500 lb), the system will enter into error mode,
stopping all functions from the upper and lower controls.
The horn will then sound constantly and the overload light
will stay illuminated at the upper and lower controls (refer
to Figure 4.6 and 4.7).

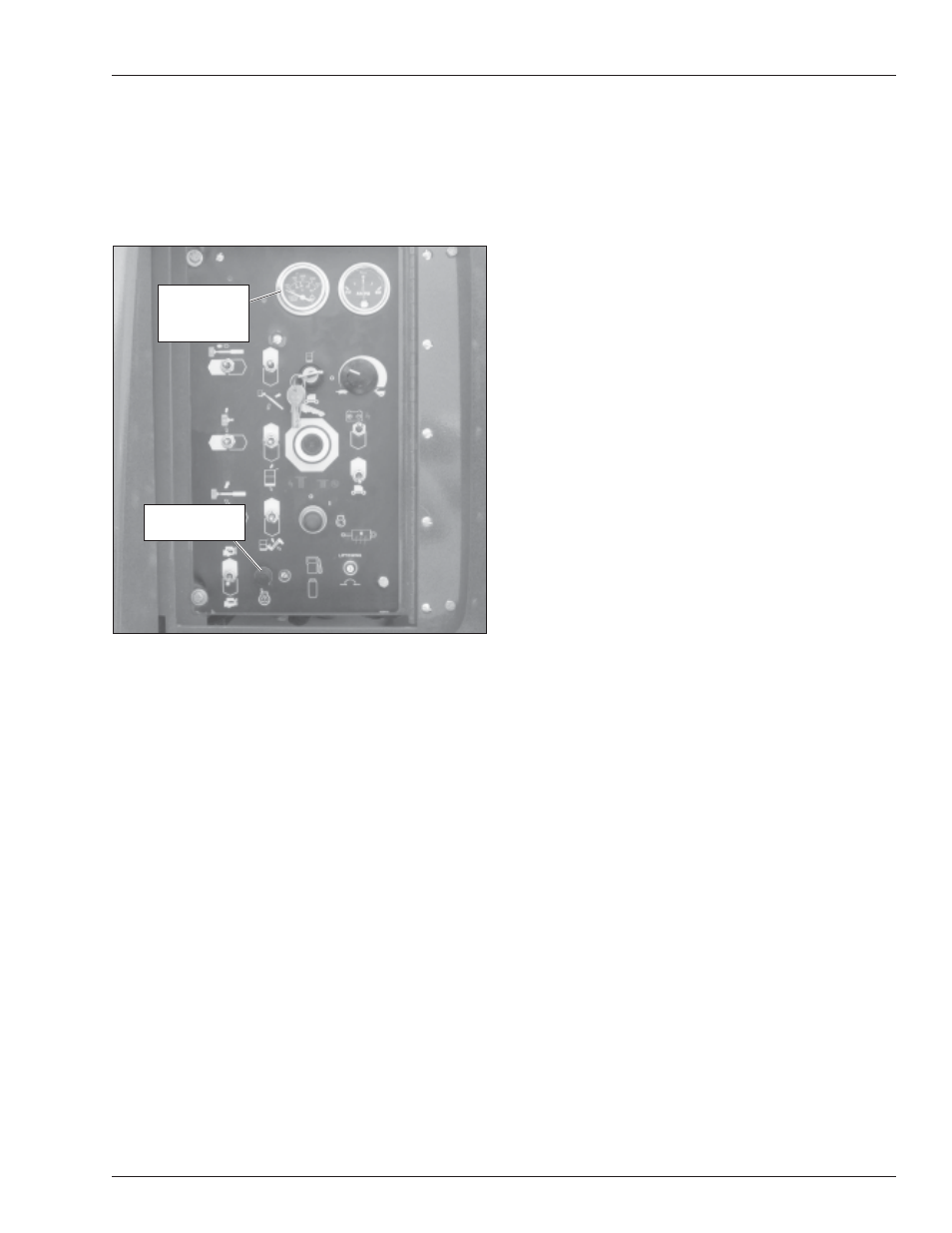

Figure 4.7 – Lower Control Panel
The system will remain in error mode until the excess
load is removed from the platform and the emergency
stop button or start switch is cycled off and back on,
resetting the system. At that time, the machine func-
tions are operational.
A
Caution
The emergency power system is for emergency low-
ering and stowing only. The length of time the pump
can be operated depends on the capacity of the
battery. Do not use this system for normal opera-
tion.
If the platform overload sensing system is tripped while
operating the machine or if the system is in error mode
and can not be reset, the emergency power system may
still be used for emergency machine operation from ei-
ther the lower or upper controls.
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not exceed the capacity values
indicated on the platform rating placard.
Platform
Overload Light
Engine
Temperature
Gauge
