Page15
Instruction Manual December 2008
4. To store the turning stabilizers of the unit, turn the handle counterclockwise until
the supporting foundation gets away from the ground. Pull up the aligning pin, retract
inwards the turning leg until the aligning pin gets into the storing aligning hole.
Warning! You must observe the spirit level on the chassis. The bubble should be
within the center circle of the gauge.
Warning! Once you doubt leveling is incorrect, just base on mast and use rectangle
level gauge to verify it.
Warning! Forbid any operation without extending out all the turning stabilizers.
Chapter 6 Operation Guide
6.1 The relevant conditions of using the equipment
6.1.1 The surface of work ground should be flat and hard with no obstacles in air and
the safety distance between the equipment and high-tension line is adequate.
6.1.2 The environment temperature should be within -10~38; Height above sea level
≤ 1000 m.
6.1.3 The environment humidity ≤ 90%.
6.1.4 Electrical power: AC 230V ± 10%, 50Hz.
6.1.5 The wind power is not more than Beaufort Scale 5 (the speed of wind is 10.7 m/
s).
6.1.6 The noise grade of this machine is 52~54 dB while operation.
Notes:
1) Prevent the sunlight from directly shining onto the hydraulic and electrical units of
the equipment if the environment temperature is above 32.
2) If the conditions mentioned above are not met, please contact with your supplier and
take the relevant guarantee measures for using the equipment.

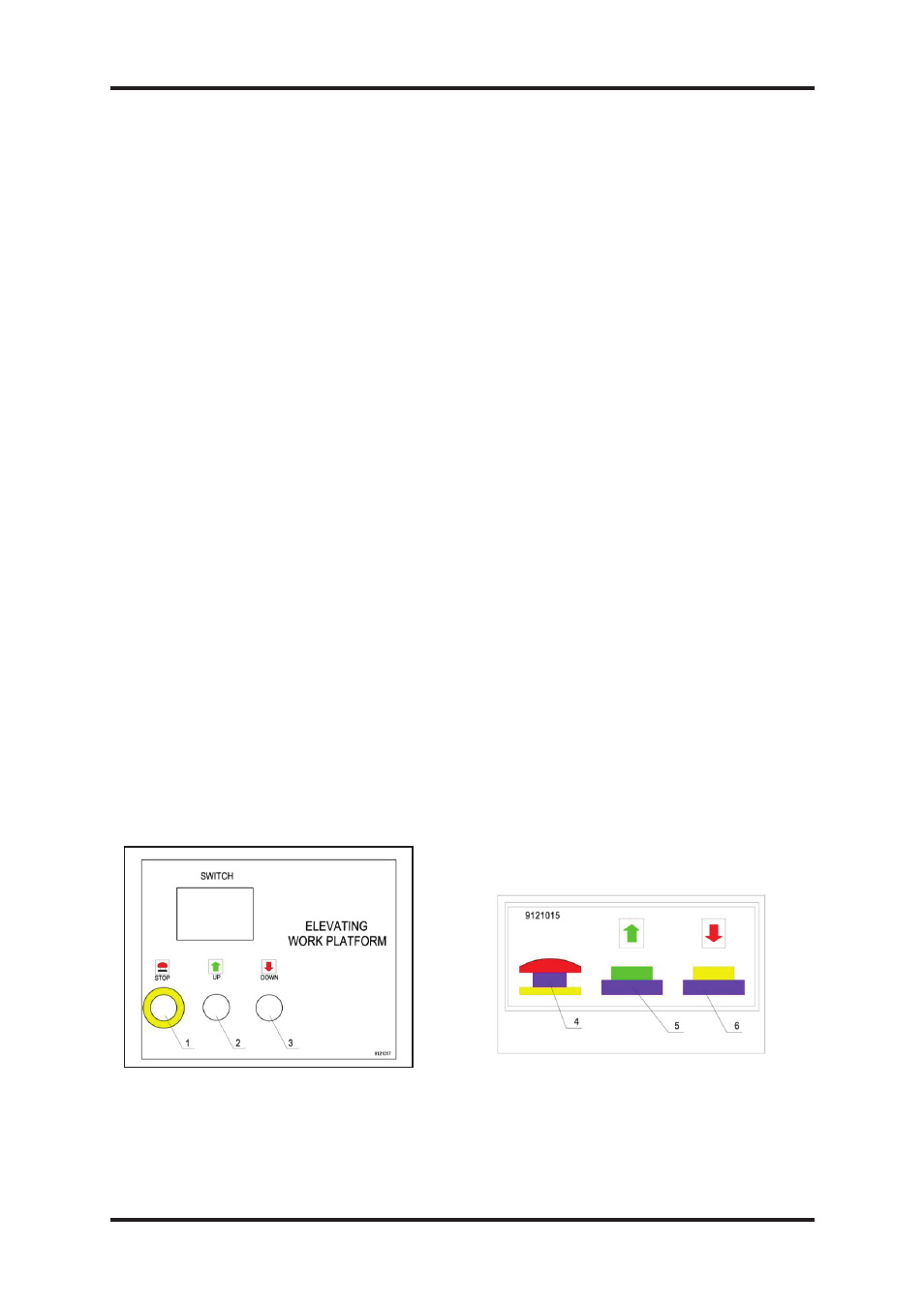

6.2 Control Panel function and Description
6.2.1 AC Control Panel
Control panel on electric box 1. Emergency stop switch
2. Up button
3. Down button
Control panel on work
