M AINTENANCE
B LOCKING E LEVATING A SSEMBLY
Brace Installation
1. Park the work platform on firm level ground.
2. Verify Platform Emergency Stop Switch is ON.
3. Turn Chassis Key Switch to CHASSIS.
4. Start the engine using chassis controls.
5. Push the throttle button in, the button will stay in and
the engine speed will increase. Using the raise button,
elevate platform until the scissors brace can be rotated
to the vertical position.
6. From the left side of the machine, disengage the locking
pin securing the brace. Rotate the scissor brace coun-
terclockwise until it is vertical and between the two
scissor center pivots.
7. Push lower button and gradually lower platform until
brace is supporting the platform.
8. Disengage throttle by pushing throttle button in again,
the button will retract and the engine will come to idle
speed.
Brace Removal
1. Using chassis controls, gradually raise platform until
the scissors brace clears the two scissor center pivots.
2. Rotate scissors brace clockwise until the locking pin
engages.
3. Push lower button to completely lower platform.
4. Make sure the throttle button is disengaged and plat-
form/chassis switch is on PLATFORM.

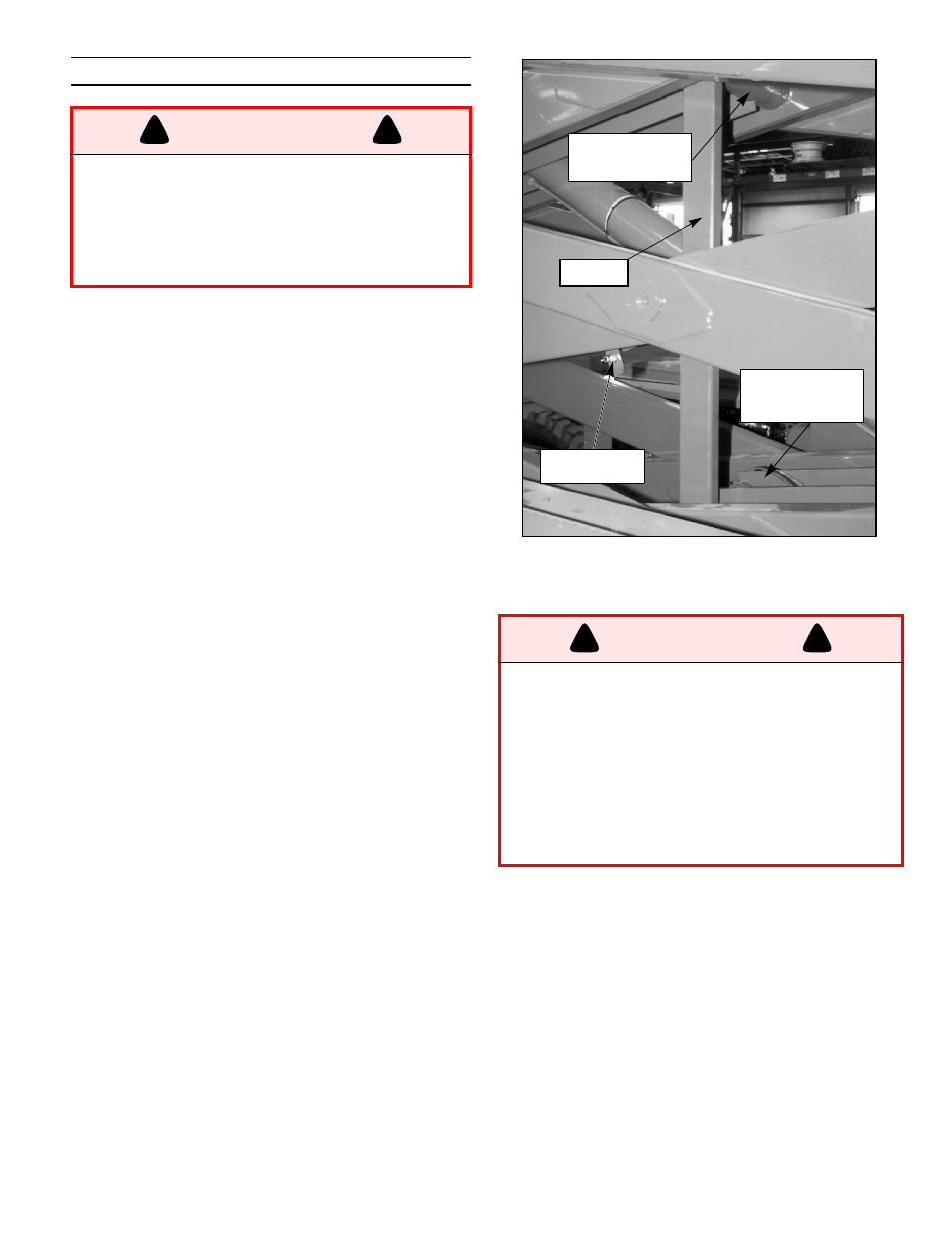

Figure 8: Blocking Elevating Assembly
B ATTERY M AINTENANCE
Check battery fluid level daily, especially if work plat-
form is being used in a warm, dry climate.
If electrolyte level is lower than 3/8 in. (10 mm)
above plates, add distilled water ONLY. Do not use
of tap water with high mineral content, it will shorten
battery life.
The battery and cables should be inspected regu-
larly for signs of cracks in the case, electrolyte leak-
age and corrosion of the terminals. Inspect cables
for worn spots or breaks in the insulation and for bro-
ken cable terminals.
Refer to the Service Manual to extend battery life
and for complete service instructions.
Never perform service on the work platform in
the elevating assembly area while platform is
elevated without first blocking the elevating
assembly.
DO NOT stand in elevating assembly area
while deploying or storing brace.
:$51,1*
Hazard of explosive gas mixture. Keep sparks,
flame, and smoking material away from battery.
Always wear safety glasses when working with
batteries.
Battery fluid is highly corrosive. Thoroughly
rinse away any spilled fluid with clean water.
Always replace batteries with UpRight batteries
or manufacturer approved replacements
weighing 62 lbs. each.
Brace
Upper Scissor
Center Pivot
Locking Pin
Lower Scissor
Center Pivot
:$51,1*
