Page 4 067449-002 LX Electric Work Platform - Operator Manual
Controls and Indicators
C
ONTROLS AND
I
NDICATORS

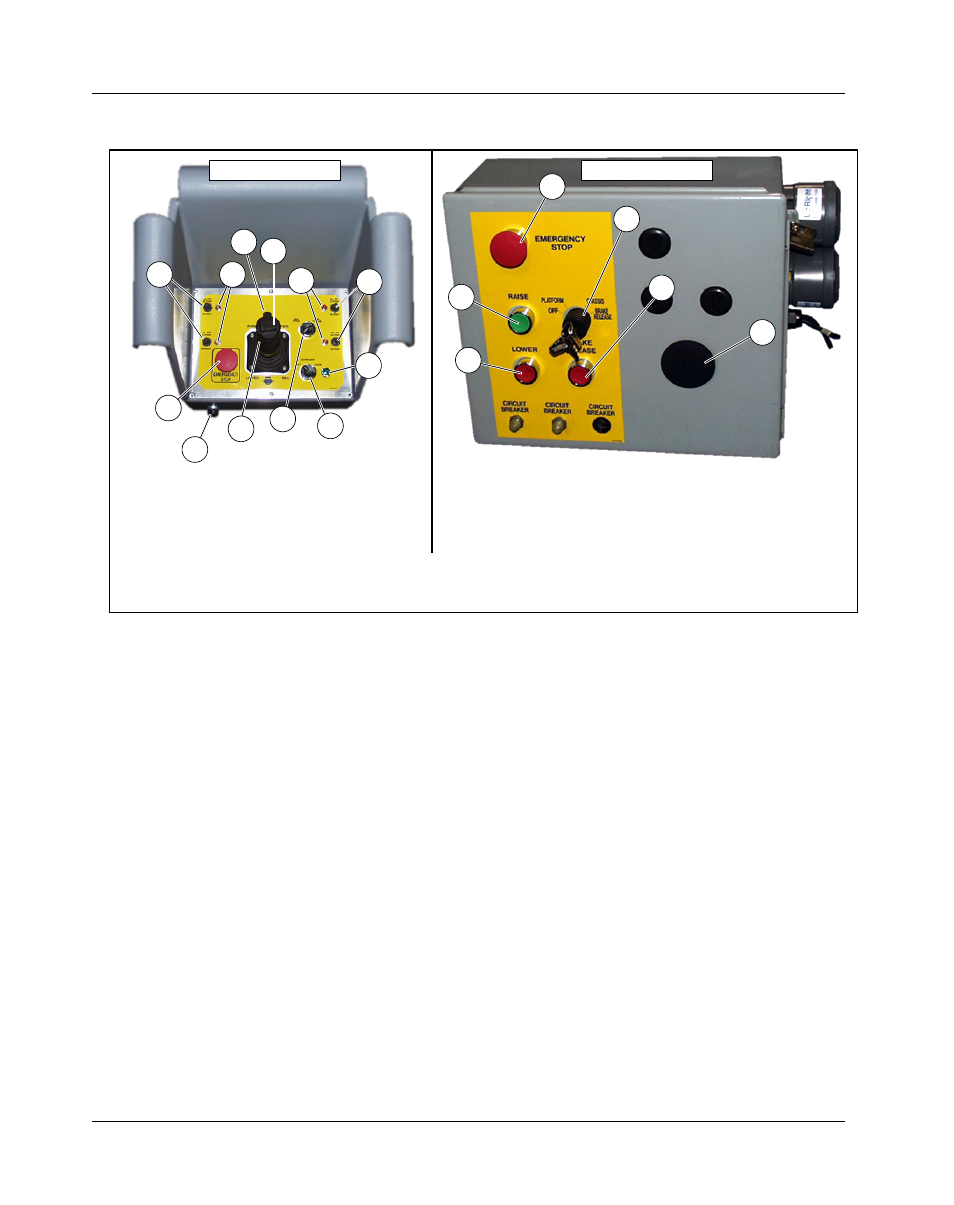

Figure 2: Controls and Indicators
P RE -O PERATION & S AFETY I NSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels and National Safety
Instructions/Requirements. Perform the following steps each day before use.
1. Open modules and inspect for damage, fluid leaks or missing parts.
2. Check the hydraulic fluid level sight gauge on the hydraulic reservoir with the platform fully lowered. Add
fluid if necessary.
3. Check that fluid level in the batteries is correct (see “Battery Maintenance” on page 12).
4. Check that all guardrails are in place, the slide-out deck extension is secured with the pin, and all fas-
teners are properly tightened.
5. Check tire pressure: 5,2 bar (75 psi).
6. Carefully inspect the entire machine for damage such as cracked welds or structural members, loose or
missing parts, fluid leaks, damaged cables or hoses, loose connections and tire damage.
1
2
3
4
5
4*
2
1
3 7**
9
8
Outrigger Options
* Outrigger Switches and Outrigger Lights are installed on outrigger equipped machines only.
** Outrigger selection is available on outrigger equipped machines only.
5*
5* 4*
1. Steering Switch
2. Interlock Lever
3. Control Handle
4. Outrigger Switches
5. Outrigger Indicator
Lights
6. Emergency Stop Switch
7. Lift/Drive Switch
8. Drive Speed/Torque
Selector Switch
9. Drive Enable Indicator
10. Horn Button (option)
6
1. Emergency Stop
2. Platform/Chassis Key Switch
3. Raise Button 4. Brake Release Button
5. Lower Button
6. Hour Meter (option)
Platform Controls Chassis Controls
10
6
