Introduction
067449-002 LX Electric Work Platform - Operator Manual Page 3
I
NTRODUCTION
This manual covers the operation of the LX 31 and LX 41 Electric machines. This manual must be
stored on the machine at all times.
G ENERAL D ESCRIPTION

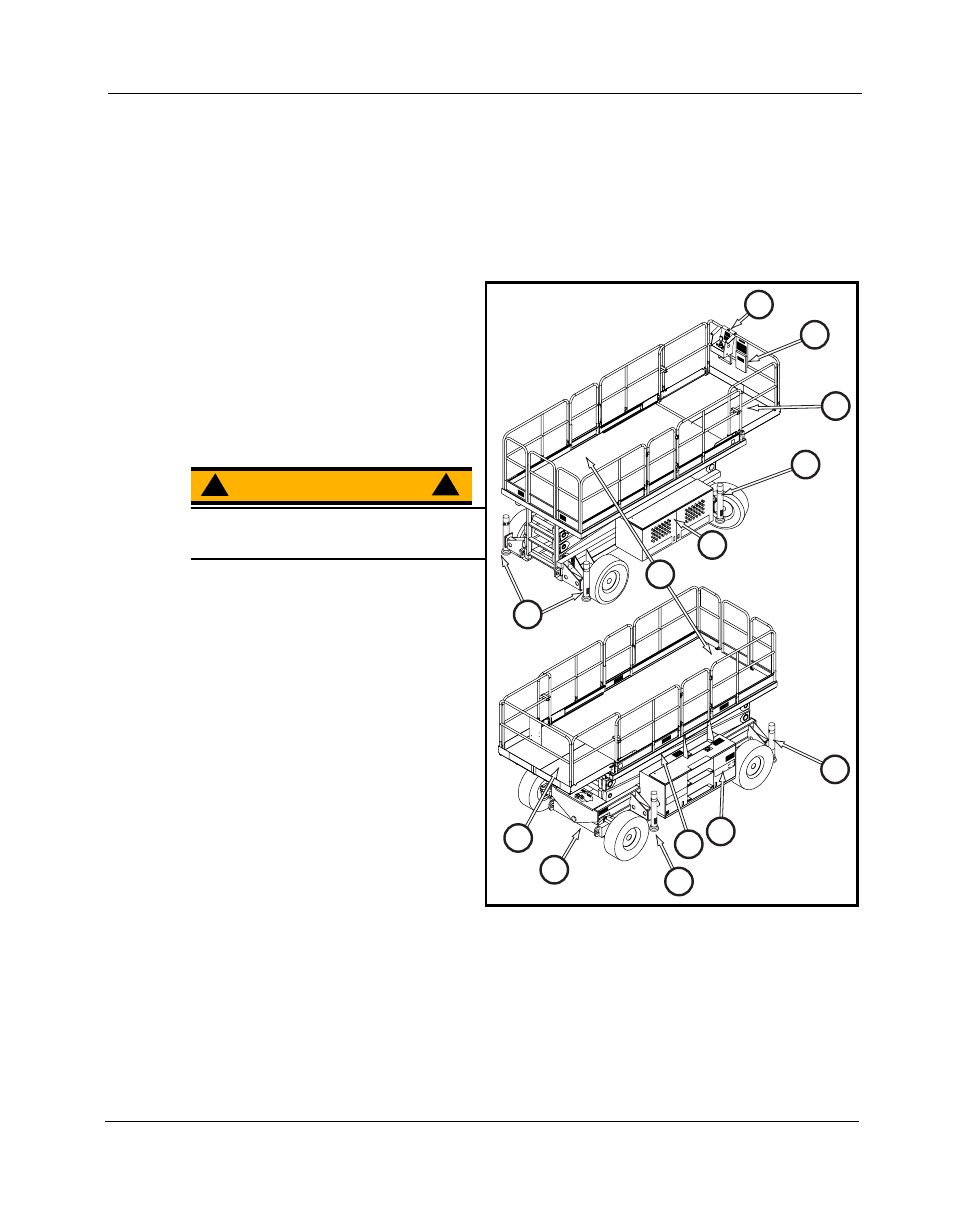

Figure 1: LX Electric Work Platform
1. Platform
The platform has a reinforced steel floor,
guardrails with midrail, toeboards and an
entrance gate at the rear and both sides of
the platform. The guardrails can be folded
down for access through doors or for ship-
ment.
2. Slide-out Deck
W A R N I N G ! !
DO NOT use the maintenance platform
without guardrails properly assembled and
in place
3. Platform Controls
The platform controls contain the controls
to operate the machine. It should be hung
on the front, left, or right guardrail.
4. Manual Case
5. Elevating Assembly
The platform is raised and lowered by the
elevating assembly; a five section scissor
assembly powered by two single-stage lift
cylinders.
6. Control Module
The control module contains the
horn/alarms, batteries, and chassis control
panel.
7. Power Module
The power module contains the hydraulic
valve manifold, hydraulic pumps, and
hydraulic reservoir.
8. Chassis
The chassis is a structural frame that supports all the components of the machine.
9. Outriggers (optional)
3
4
2
9
7
1
9
9
2
8
5
6
9
