6. A duplicate set of controls (excluding Slew Basket and Basket Trim) is
mounted on the Slew Turret under the right hand side cover, which allows the
platform to be operated from the Ground.
7. At the Ground Control Station, turn the key to ‘Ground’

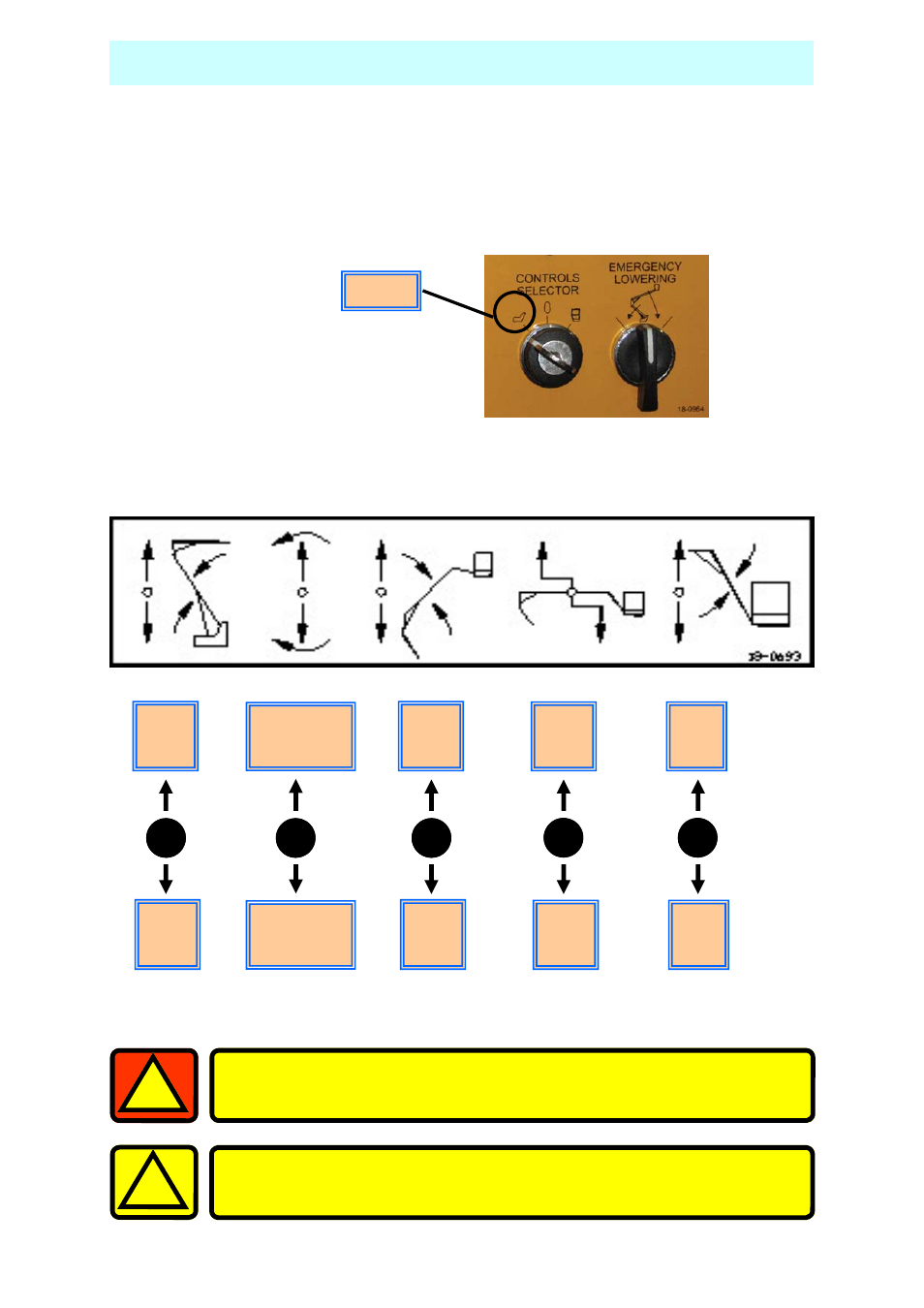

8. Explanation of the Ground Control Station, Directional Control Levers
Ground
Take EXTREME care when slewing both basket and turret, at low
levels.
!
Before raising, ensure there are no overhead obstructions or
power cables and that the outriggers are properly extended and
secure.
1
Slew
Turret
Clockwise
Slew
Turret
Anticlockwise
Lower
Flick
Boom
Retract
Tele-
Boom
Lower
Tele-
Boom
Lower
Lower
Boom
Raise
Flick
Boom
Extend
Tele-
Boom
Raise
Tele-
Boom
Raise
Lower
Boom
EXTENDING THE STRUCTURE
