Page 17
15
1.
Ensure that the booms are fully lowered and located in the front prop, all
outriggers are fully raised and that the machine is manoeuvrable.
3.
Climb into the driving seat and fasten seat belt across your lap.
4.
Insert the ingition Key and turn part way, intil the Pre-Heat lamp has
illuminated.
5.
When the lamp goes out and the pre-heat sequence has ended,
complete the turn to start the ignition and release when the
engine starts.
DRIVING THE VEHICLE
Do NOT use the Steering wheel to pull yourself into the cab as
this could cause damage to the vehicles Steering system.
!
2.

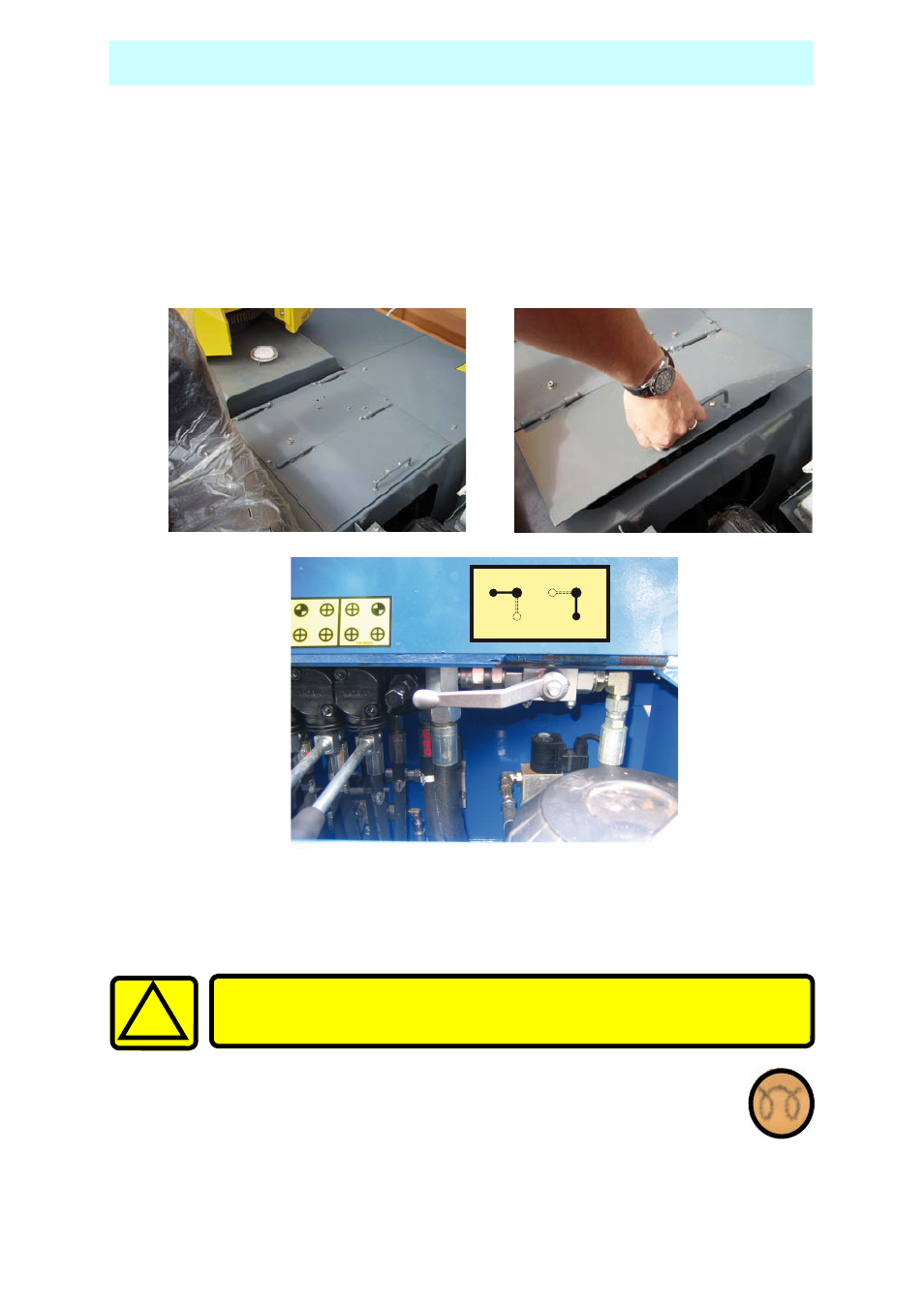

Before driving the vehicle ensure that the selector valve situated under
the outrigger control cover hatch is set to Drive/Steer operation.
Note:
If the vehicle is only being driven for slow speed manoeuvring between
boom operations this selector can be left in boom operation.
510058-000
DRIVE/STEER OPERATION
BOOM OPERATION
