Controls and Indicators
6 AB46RT – 0260228
18. Main control circuit breaker
19. Platform overload light

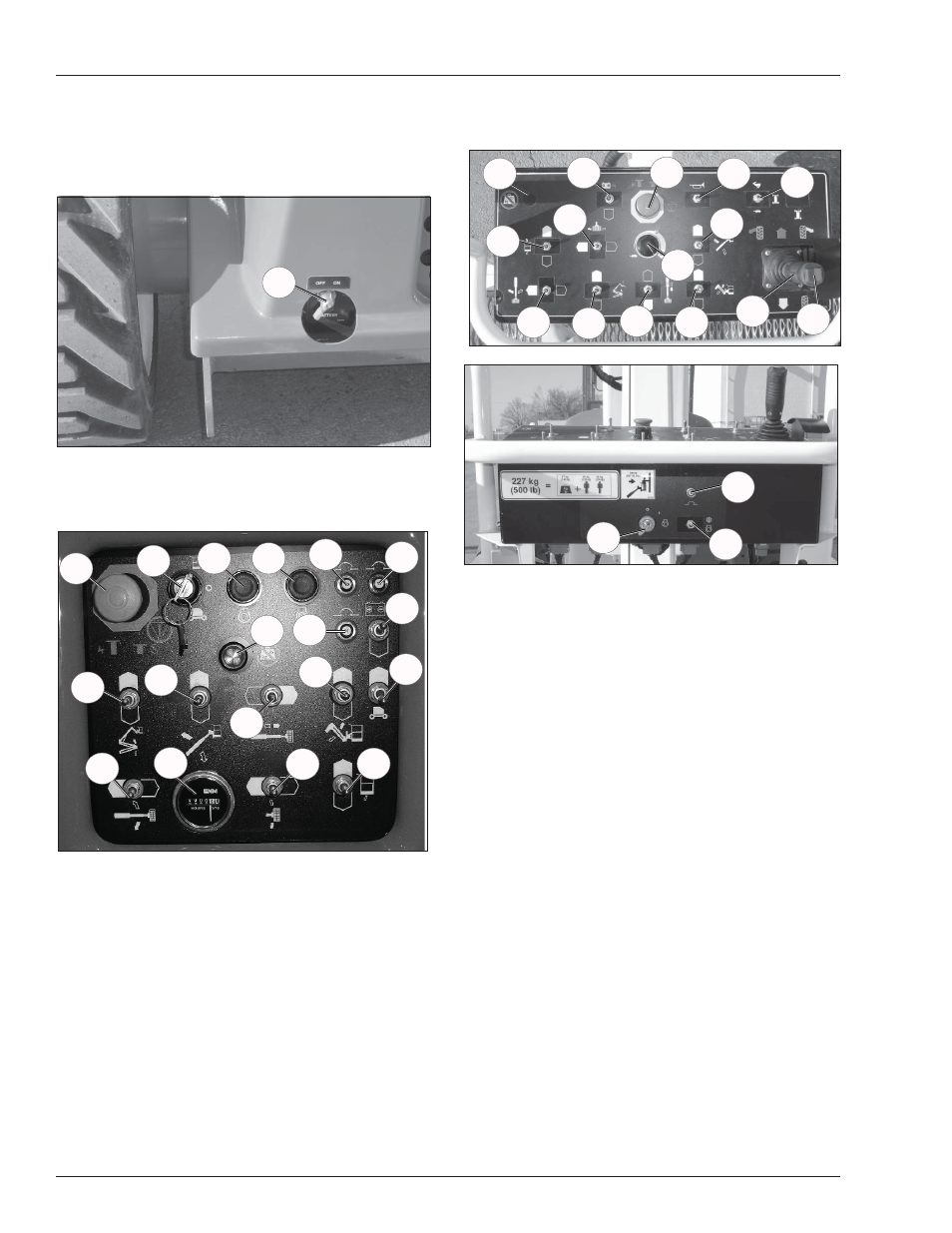

Figure 4 – Upper Controls and Indicators
20. Preheat switch
21. Start switch
22. Emergency stop button
23. Drive joystick
24. Steer switch
25. Drive range switch
26. Boom speed knob
27. Rotation switch
28. Riser switch
29. Boom elevation switch
30. Boom extension switch
31. Jib articulation switch
32. Platform level switch
33. Platform rotation switch
34. Engine/Emergency power switch
35. Horn
36. Upper control circuit breaker
37. Platform overload light
Controls and Indicators
The operator shall know the location of each control and
indicator and have a thorough knowledge of the function
and operation of each before attempting to operate the
machine.
Figure 2 –Battery Disconnect Switch
1. Battery disconnect switch
Figure 3 – Lower Controls and Indicators
2. Preheat button
3. Start switch
4. Emergency stop button
5. Controls selector switch
6. Ground operation switch
7. Rotation switch
8. Riser switch
9. Boom elevation switch
10. Boom extension switch
11. Jib articulation switch
12. Platform level switch
13. Platform rotation switch
14. Engine/emergency power switch
15. Hour meter
16. Relays circuit breaker
17. Switches circuit breaker
1
28
29
30 31
32
33
20
21
24
25
26
27
2
4
3 5
6
7
8
9
11
12 13
14
15
17
18
16
10
19
23
35 22 34 37
36
