Assembly
Your generator requires some assembly and is ready for use
after it has been properly serviced with the recommended
fuel and oil.
If you have any problems with the assembly of your generator,
please call the generator helpline at (800) 743-4115. If calling
for assistance, please have the model, revision, and serial
number from the data tag available. See Controls and Features
for data tag location.
Unpack Generator
1. Set the carton on a rigid, flat surface.
2. Remove everything from carton except generator and
confirm all listed parts are present.
3. Open carton completely by cutting each corner from
top to bottom.
4. Leave generator on carton to install wheel kit.
The generator is supplied with:
• Operator’s manual
• Battery float charger
• Oil bottles
• Wheel kit
Install Wheel Kit
NOTE: Wheel kit is not intended for over-the-road use.
You will need the following tools to install these
components:
• 7/16” and 13mm socket wrench
• 7/16” and 13mm open end wrench
• Pliers
• Safety glasses

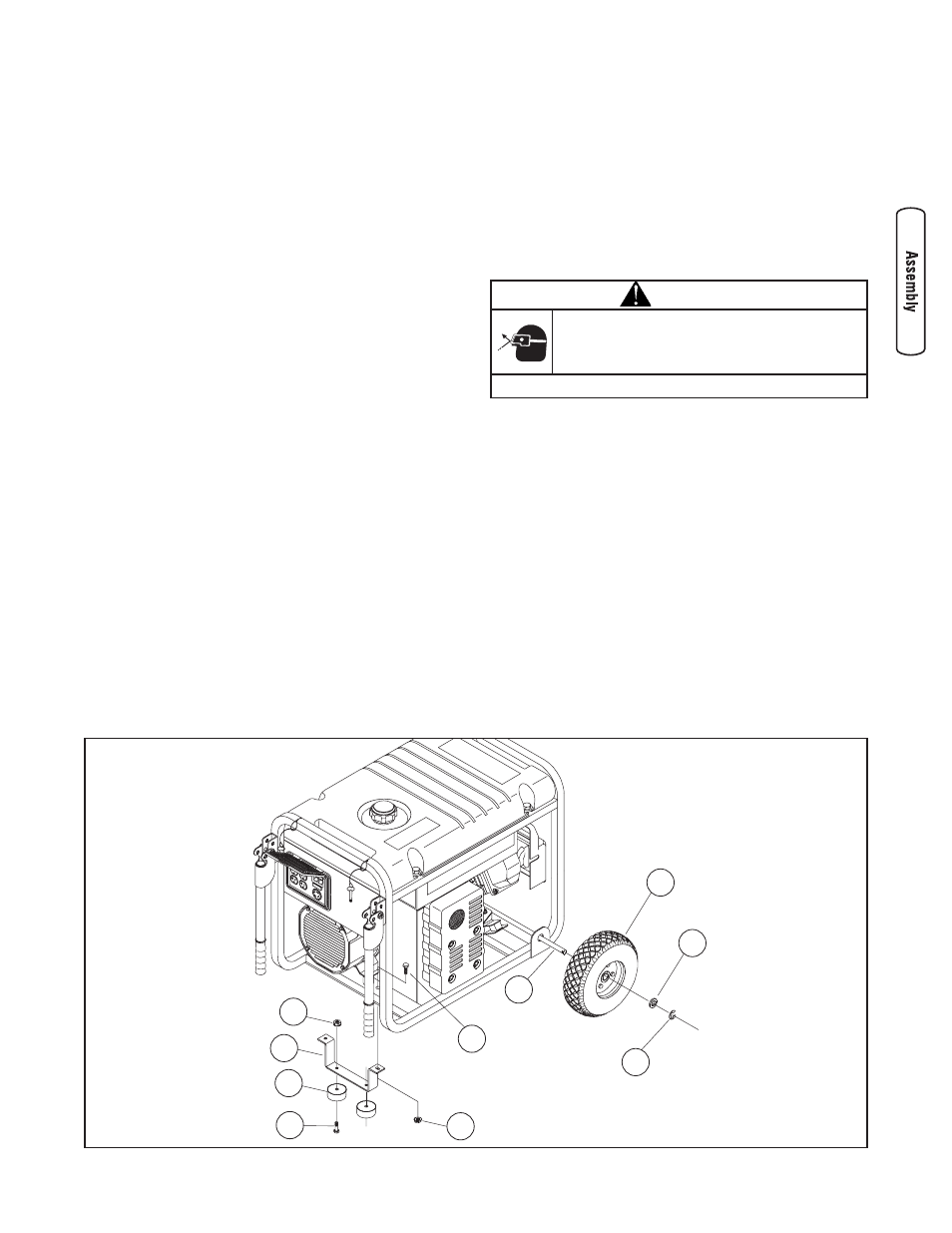

Install the wheel kit as follows:
1. Tip generator so that generator rests on frame with
engine end up.
2. Slide axle (A) through both mounting brackets.
3. Slide a wheel (B) over the axle.
NOTE: Be sure to install both wheels with the air pressure
valve on the outboard side.
4. Place a washer (C) on axle and then place an e-ring (D)
in axle groove.
5. Install e-ring with pliers, squeezing from top of e-ring
to bottom of axle.
6. Repeat step 3 thru 5 to secure second wheel.
7. Tip generator so that generator rests on frame with
engine side down.
8. Attach the vibration mounts (E) to the support leg (F)
with 1/4-20 x 1” capscrews (G) and 1/4-20 lock nuts
(H).
9. Attach support leg with M8 x 20 mm cap screws (J)
and M8 lock nuts (K).
10. Return generator to normal operating position (resting
on wheels and support leg).
11. Check each fastener to ensure it is secure and the tires
are inflated between 15-40 PSI.
CAUTION
E-rings can cause eye injury.
E-rings can spring back and become airborne
when installing or removing.
• Always wear eye protection when installing/removing e-rings.
A
B
C
D
J
H
F
E
K G
