*Note: Remove the equipment from its packaging and place it on a clean, flat surface. Inspect each item. If
any visible damage is present, contact your supplier please verify your order is complete

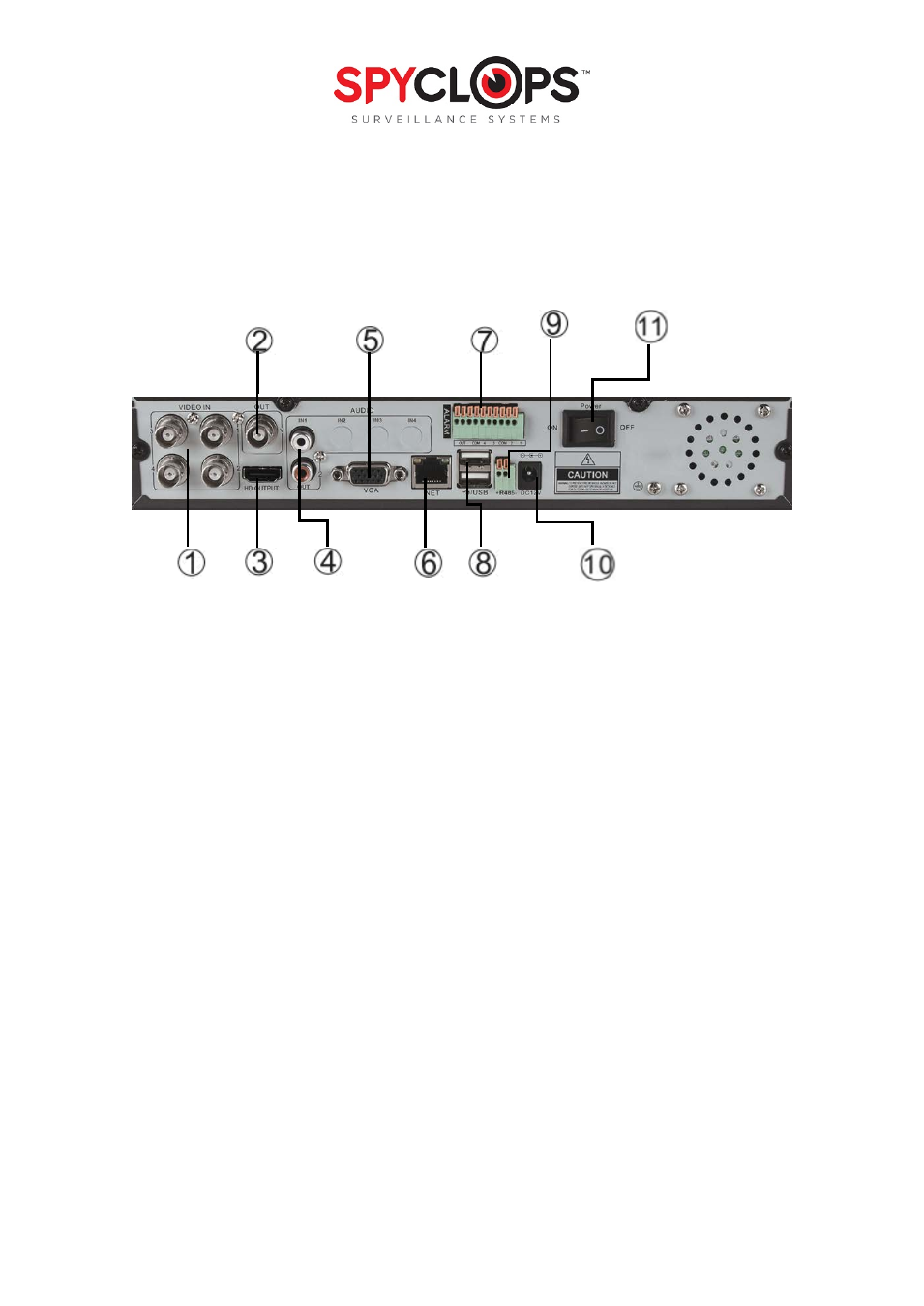

MAKING THE CONNECTIONS:
1. BNC video in from cameras
2. Video out to TV (BNC to RCA cable)
3. HDMI output
4. RCA audio IN and OUT
5. VGA output to monitor
6. RJ45 ethernet port
7. Sensor Alarm input/output
8. Mouse/USB backup
9. RS485 port for PTZ camera control
10. DC 12V adapter port
11. ON/OFF power switch
