UNPACKING
1 . Examine contents for damage prior to removing
shipping carton .
a . If shipping damage is found, immediately
contact the freight carrier to file a claim .
2 . Carefully remove the shipping carton from the
pallet containing the compressor .
3 . Visually inspect the entire compressor system for
shipping damage .
a . If shipping damage is found, immediately
contact the freight carrier and distributor .
4 . Verify that the installation kit parts were shipped
with the system:
a . Installation kit parts shipped with all
compressor system models include the
following:
• (1) Drain Tubing, 3/8 inch plastic, 10 foot
length
• Intake Filters: (2) JAir3, (3) JAir5,
(4) JAir7
• Intake Tubing: (2) JAir3, (3) JAir5,
(4) JAir7
• (1) O&M Manual
• (1) Flex Hose Kit
5 . Remove screws and nuts holding the
compressor system to the shipping pallet . Rotate
brackets out of the way keeping them secured to
the pallet for future use .
6 . Reattach nuts to secure tank shock mounts .
WARNING: Fasten unit to shipping pallet
prior to transporting to prevent tipping
or damage.

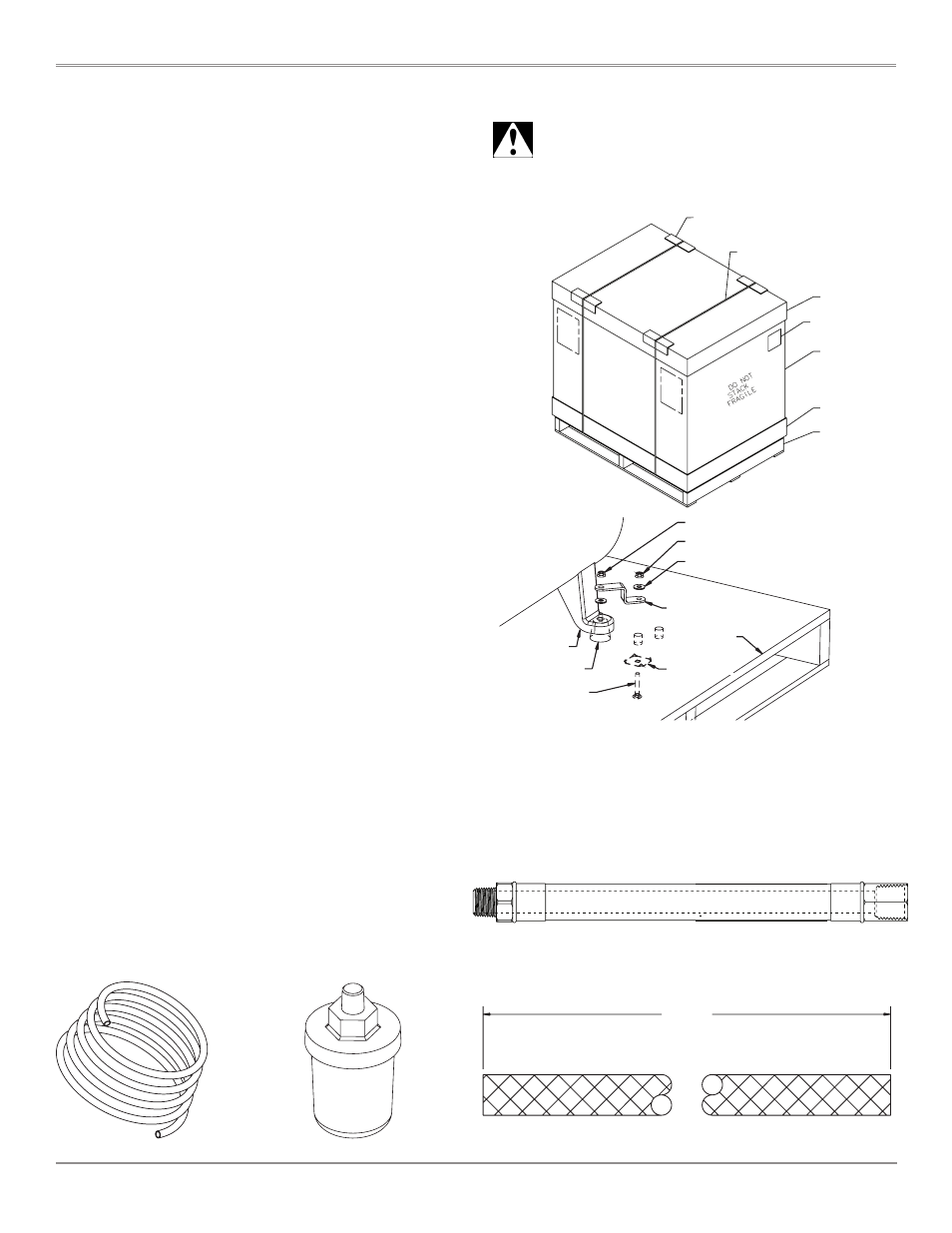

Drain Tubing Intake Filter Intake Tubing
8 .0 in
or
13 .5 in
4x, BAND SUPPORT
2x, BANDS
LID
SKID
SKIRT
CARTON
SYMBOLOGY
CHART, REF
4x, 5/16"-18 NUT
4x, 5/16"-18 NUT
8x, 5/16" WASHER
PALLET
4x, CLEAT
4x, FOOT BRACKET
TANK
4X, SHOCK MOUNT
4X, 5/16"-18
CARRIAGE BOLT
Flex Hose
