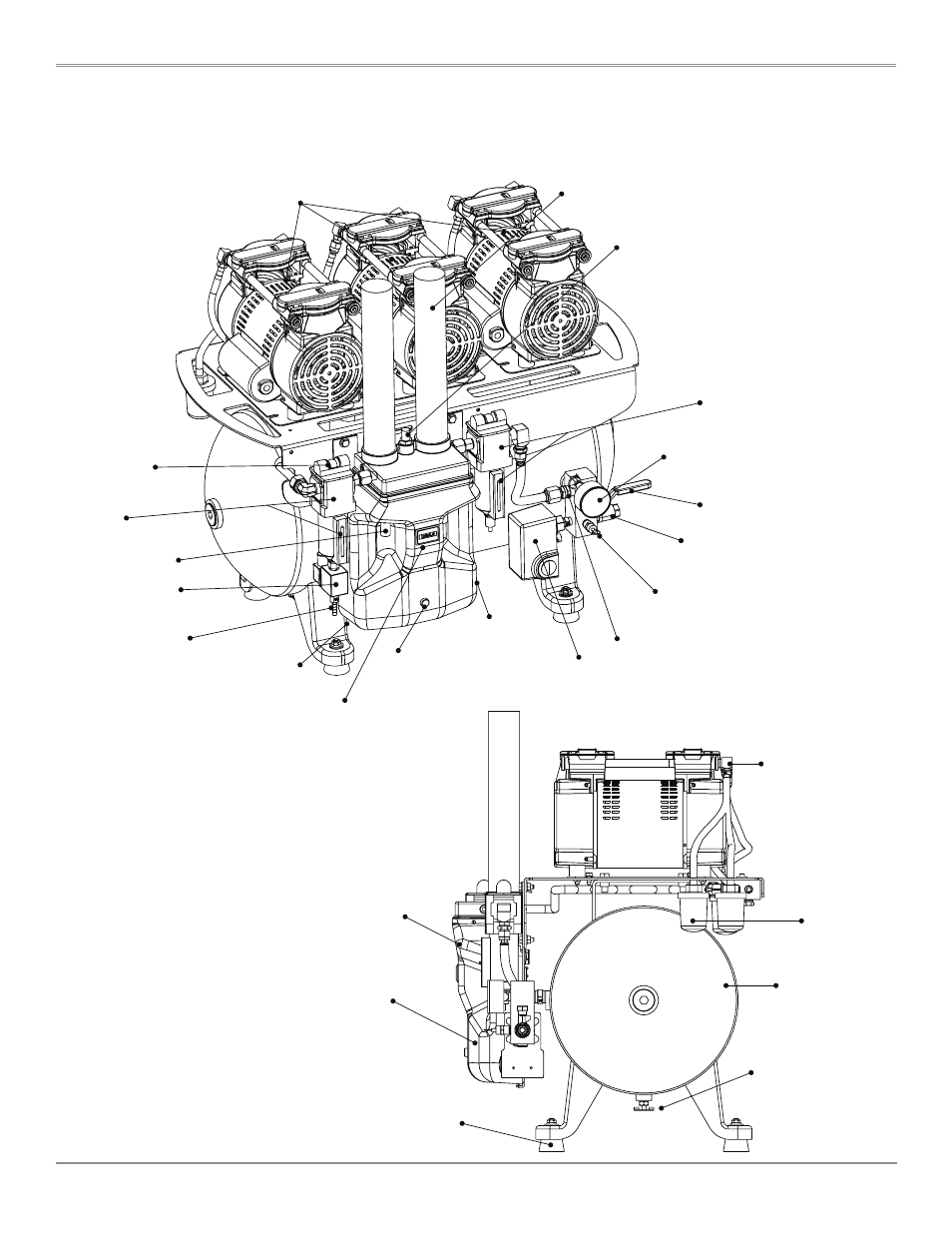

SYSTEM FEATURES - 3-5 USERS
NOTE: 1-3 user system center compressor removed
Tank drain
valve
Intake
filters
Fuse and compressor
switches (located inside
cover)
Shock
mount
Power
indication
light
24 V remote wiring
located on back
electrical plate
Hour
meter
Main power leads
located on back
electrical plate
Drain tubing
hose barb
Solenoid valve
Coalescing
filter
and bowl
Filter
indicator
Compressors
Desiccant twin tower
regenerative dryer
Moisture
indicator
After filter
and bowl
System
pressure gauge
Shut-off
valve
Air outlet
3/8 in. NPT
Safety relief
valve
Check valve
Pressure
switch
Air inlet
1/4 in. NPT
(2) Dryer
silencers
Electrical
cover
Air tank
