COD. 193553058 - v.2 - UPD 060404

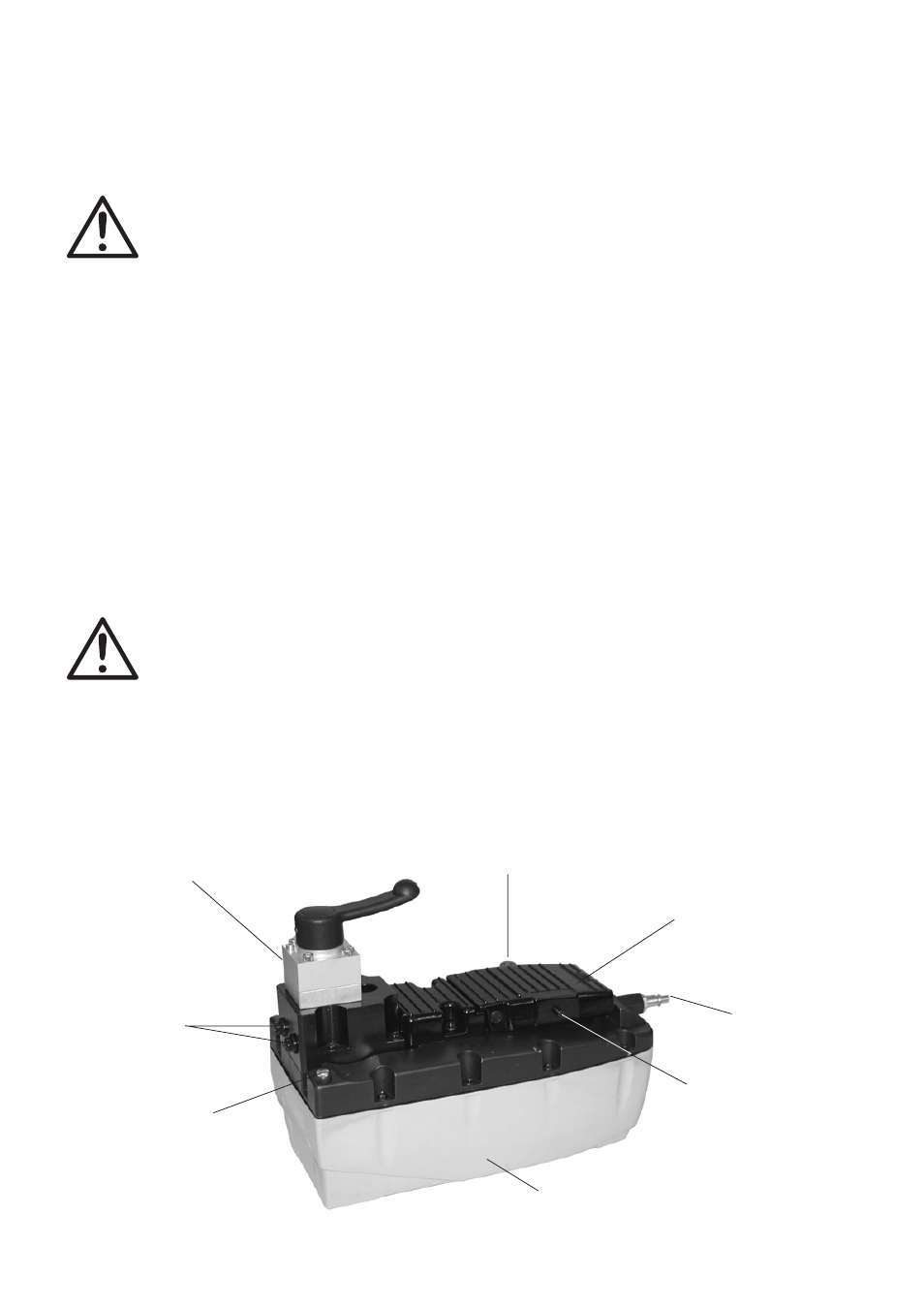

Fig.12

Filler and breather plug

Double acting connection

for drain into reservoir

Treadle

Compressed air inlet connection

Pedal locking pushbutton

Pump body/reservoir

Breather screw

Hydraulic pressure

hose ports

Fig. 12 shows the pump with 2.5 litre reservoir

GENERAL PRECA

GENERAL PRECAUTIONS

UTIONS

This manual contains important safety information: read carefully before installing and using the pump.

This manual must always accompany both the pump and the machine on which the pump is installed, even when

pump and machine or the pump alone is sold, loaned or otherwise transferred to other premises. Before installing the

pump and setting it up for operation make sure it has not been damaged during transportation: check that there are no

cracks or dents on the body and that there are no traces of oil leaks. If damage is noticed, inform the carrier of the

problem immediately. DO NOT INSTALL THE PUMP. Ask the manufacturer for instructions.

The manufacturer shall not be held liable for injury to people or animals or

damage to property caused by installation and operation of a damaged pump.

1 - TRANSPOR

1 - TRANSPORTTTTT, ST

, ST

, STORA

ORA

ORAGE AND UNP

GE AND UNP

GE AND UNPA

ACKING

CKING

Given the modest weight of the pump, no particular transport precautions are necessary.

Is the pump set aside for use some time after the date of purchase, it must be stored in a place that is adequately

protected against the weather at a temperature between 10° and 50° C.

Given the structure of the pump and its packaging, a maximum of 4 single boxes can be stacked one on top of the

other. If the pumps are delivered packed on pallets, they should be left in their original packing and unpacked

immediately prior to installation.

Dispose of packing materials in accordance with the prescriptions of the law in the country in which the pump is

unpacked.

2 - DESCRIPTION

The device supplied is an air-powered hydraulic pump that converts a compressed air supply into a pressurized

hydraulic flow (see Technical specifications Chapter 4).

The pump can be utilized to directly power single and double acting hydraulic devices.

All other uses of the pump shall be considered improper and can cause serious

accidents. The manufacturer declines all liability for damages resulting from

improper use of the pump.

Ask the manufacturer if in doubt about the correct installation or use of the pump.

Figure 12 shows the components of the pump.

Directional control valve
