22
11.3.5 Elbows on the single and double hose reels
The elbows must be replaced in the event of:
- external visible damage,
- hydraulic fl uid continually leaking on the elbow pipes.
Procedure:
1. Remove the extension hose pairs.
2. Loosen the elbow and remove it.
3. Position the new ellbow and tighten it with a torqu of M
A
= 40 Nm/29.5 lbf∙ft.

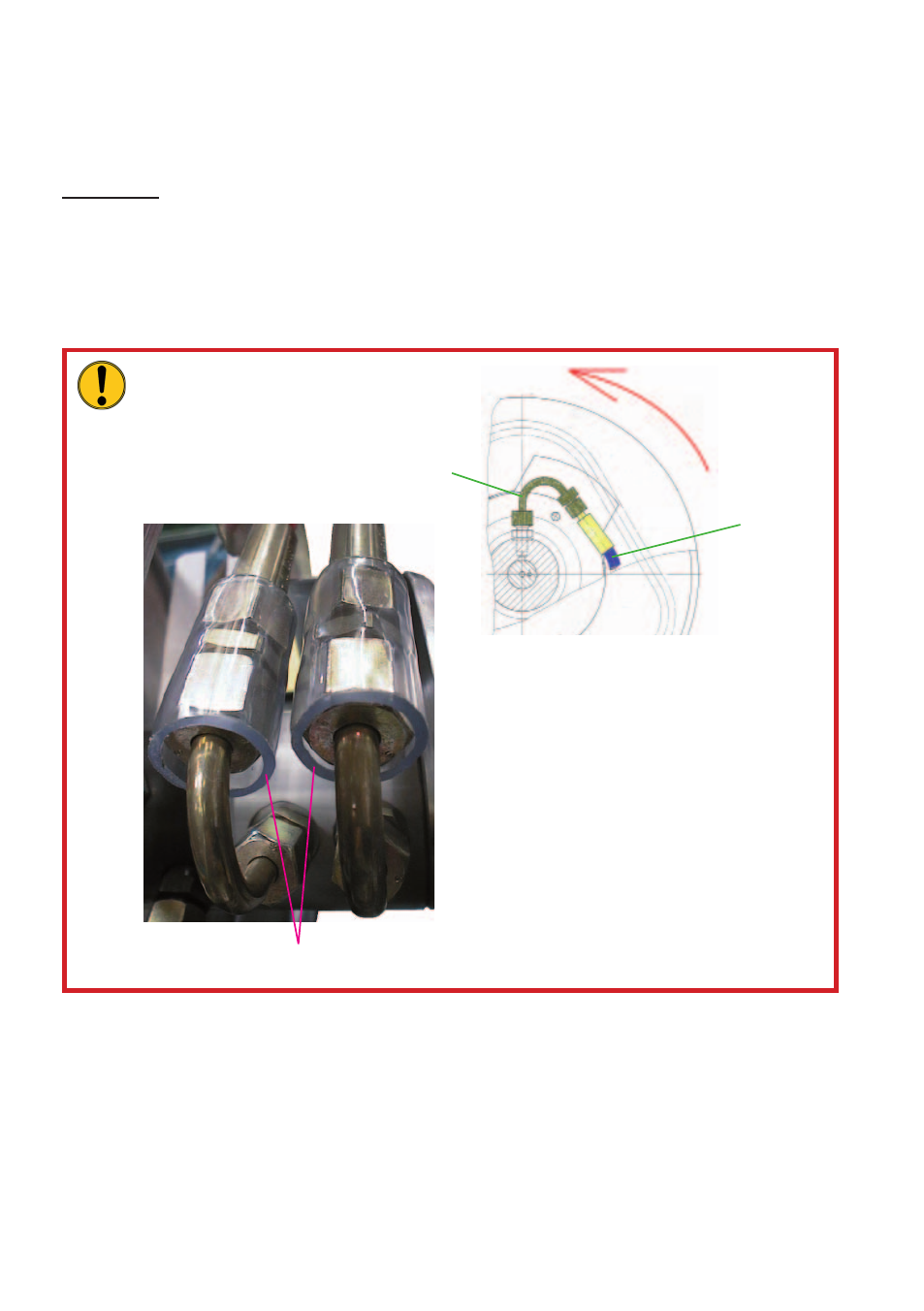

winding direction
‚Coiling‘
hose
elbow
CAUTION!
Take care that the elbows are
always mounted in the correct
oriented manner (see illustration
on the right).
protective covers
Do not forget to push the protective covers
back again over the screwed-connections
(siehe illustration on the left).
