9.3 Repairs
9.3.1 Changing or tightening connection hoses
Hose assembly of the supply and/or return hose leaks or hoses are defective. Tighten the
hose connections on the shaft.
(CAUTION! Observe torque of M
A
= 40 Nm/29.5 lbf∙ft!)
9.3.2 Changing or tightening extension hose pairs
Hose assembly of the supply and/or return hose leaks or hose pairs are defective. Pull back
the protective cover and tighten the hose connections on the elbows.
(CAUTION! Observe torque of M
A
= 40 Nm/29.5 lbf∙ft!)

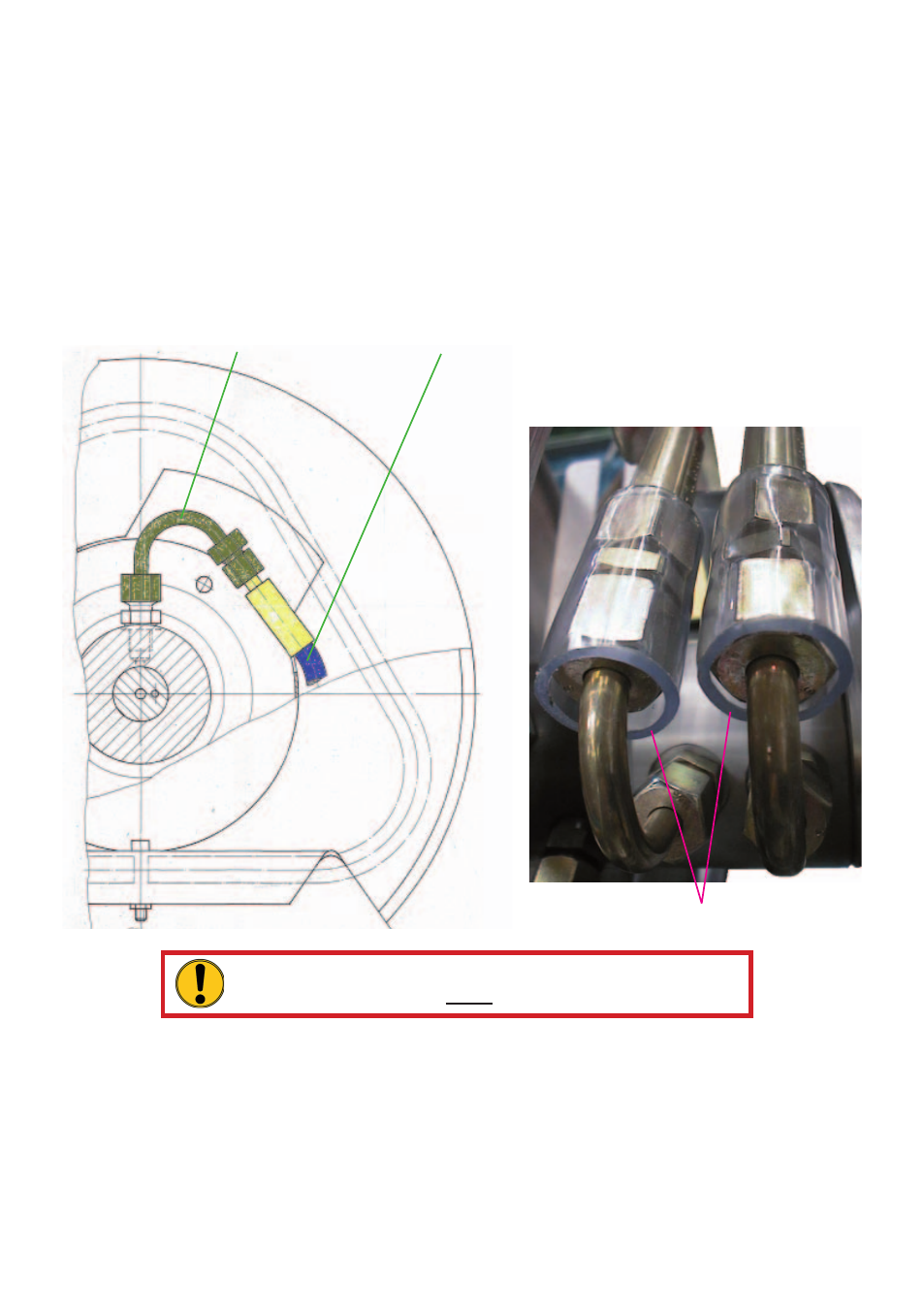

elbow
protective cover
hose
CAUTION!
Set of protectiv covers must be assembled on the reel!
