• If you have a winch you can either install it now

or after you have the bumper is installed. Be sure

to install the fair lead bolts before installing the

winch.

• Install Road Armor logo now because you wont be

able to later.

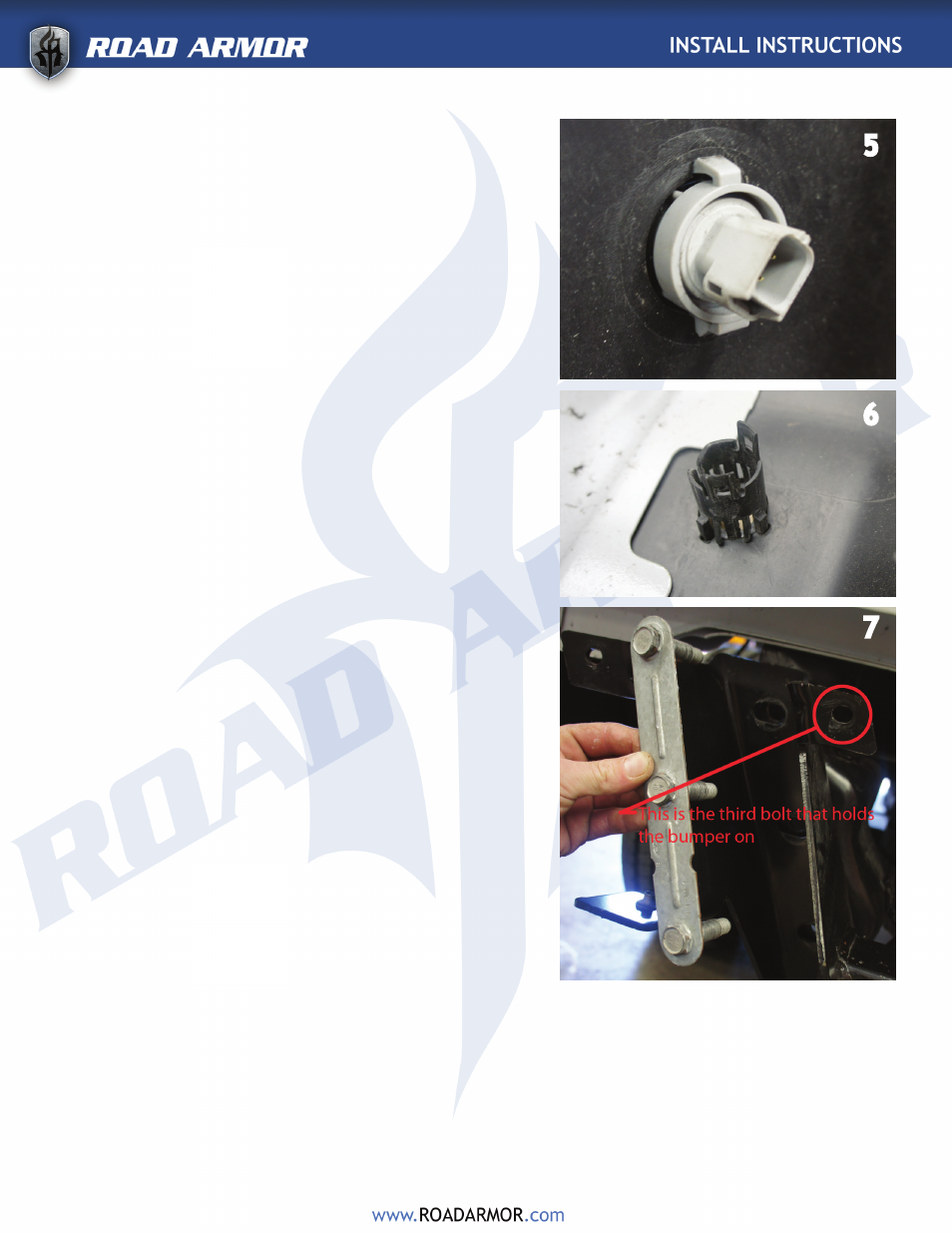

• Install license plate lights and back up sensor in-

serts into Road Armor bumper.

Note : use side cutters and cut a 1/8 off the plastic

clips on the back up sensor inserts to makeup for the

thickness of the 3/16 steel. Make the to cut the same

angle that it originally was from the factory.

Pictures 10

• Measure across the bracket slots and align the bolt

tabs on the bumper to the distance you measured

on the brackets for an easy install.

Pictures 11 - 12

• Mask off the corners of the body to prevent scratch-

es.

• Install bumper using 1/2” hardware and snug up one

bolt per side so you can make adjustments.

• Square the bumper to the body by measuring from

the top face of the bumper to a body line on both

sides of the vehicle. In addition, measure from side

to side.

Picture 13

• Caution

- when positioning the bumper, open the

tailgate with caution to make sure the bottom of

the tail gate clears the bumper.

• Once bumper is squared up to the body, tighten the

1/2” hardware.

• Plug in license plate lights and back up sensors.

Note : If you have back up sensors you will need to un-

plug the outside sensors from the wire harness in order

to fish the plugs through the brackets.
