Road Armor 2010-2014 Ford Raptor Front Bumper - Manual (Page 2)

Suggested Lights Front Bumper: Rigid Dually
series

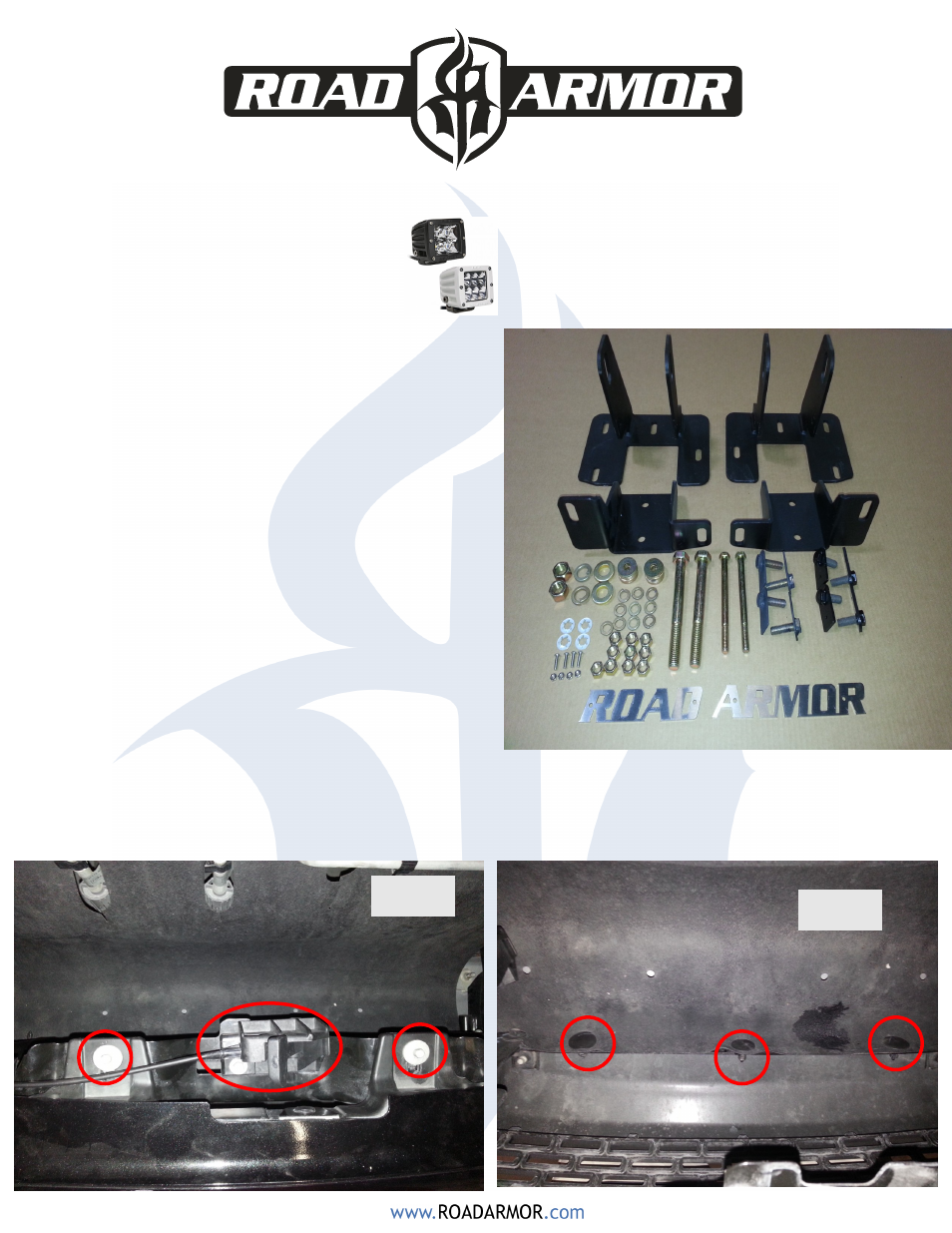

Verify you have all the hardware that was sent with the
Bumper. The front Bumper requires the following hardware
(all are Grade 8)
( 4 ) 1/2” x 1 1/2” Single Bolt Plates
( 4 ) 1/2” x 2” Single Bolt Plates
( 2 ) Double Bolt Plates
( 16 ) 1/2” Flat Washers
( 14 ) 1/2” Lock Washers
( 14 ) 1/2” Hex Nuts
( 8 ) 1/2” Retaining Washers
( 2 ) 3/4”-10 x 6.5” Bolts
( 4 ) 3/4” Flat Washers
( 2 ) 3/4” Lock Washers
( 2 ) 3/4 Hex Nuts
( 1 ) 1/4”-20 x 3/4” Bolt
( 2 ) 1/4” Flat Washers
( 1 ) 1/4” Lock Washer
( 1 ) 1/4” Hex Nut
( 4 ) Plastic Inserts
( 8 ) Allen Head Bolt - Winch Hardware
( 1 ) Package of Road Armor Logo Hardware
On to prepping the vehicle for installation. Park on a level surface, remove the license plate, and disconnect the battery. Now mask
off the front and rear of the body to avoid scratches or chips in the paint when uninstalling/installing the bumpers.
Step 1 Remove all Three Hood latch mounting bolts
Step 1
Step 2
Step 2 Remove skirting
