Monitor port

Connects a monitor to your Macintosh.

Apple desktop bus

V

Connects your Macintosh to an input device, such as a

(ADB) port

keyboard or a trackball.

Audio input ports

-

Connects your Macintosh to the RCA-type audio output ports

(left & right)

of video or audio equipment such as VCRs and tape decks.

Audio output ports

-

Connects your Macintosh to the RCA-type audio input ports of

(left & right)

video or audio equipment such as VCRs and tape decks.

Access covers for

Your Macintosh supports up to three Peripheral Component

expansion slots (3)

Interconnect (PCI) cards.

Security lock ports

F

You can attach a security lock to your Macintosh. See your
computer products retailer for security lock devices that work
with your computer.

Composite video ports

˜Â

Connects your Macintosh to most VCRs, laserdisc players,

(IN and OUT)

video cameras, and other video equipment.

Monitor power socket

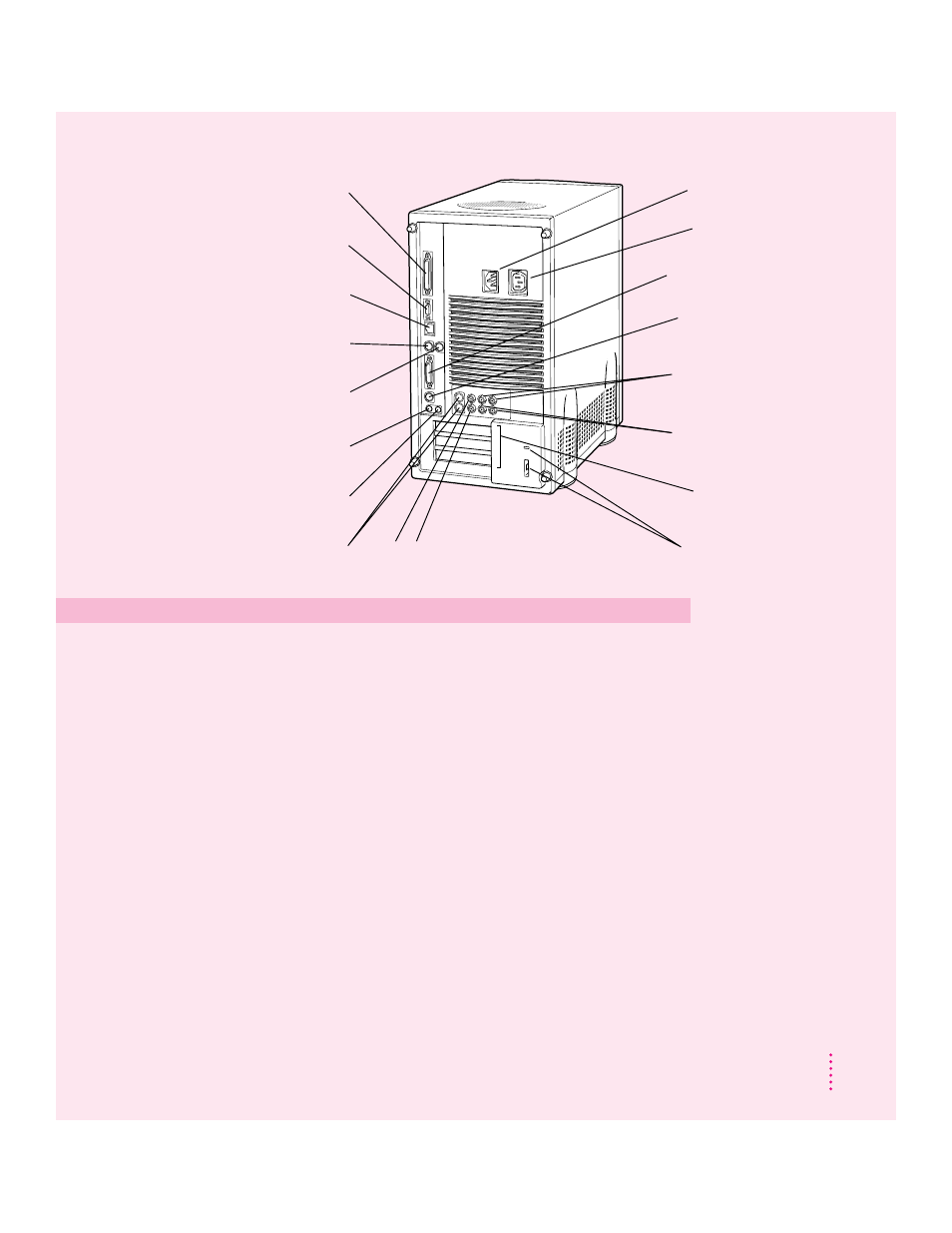

Monitor port

SCSI port

Ethernet port (AAUI)

Sound output port

Apple Desktop Bus
(ADB) port

Sound input port

Power socket

Security lock ports

Modem port (GeoPort)

Printer port (GeoPort)

g

G

Ethernet port (10BASE-T)

G

W

[

S-video ports (IN and OUT)

ж Ж

Composite video ports (IN and OUT)

˜ Â

V

Audio input ports
(left & right)

-

-

F

Access covers for
expansion slots (3)

Audio output ports
(left & right)

-
