UNIT
564A/764A
ELECTRICAL
CHARACTERISTICS
UNIT
WEIGHT
CENTER OF GRAVITY mm [in.]
Lb
Kg
X
Y
Z
042
208/230-1-60, 208/230-3-60 297 135 355.6 [14.00] 508.0 [20.00] 304.8 [12.00]
048
208/230-1-60, 208/230-3-60 310 114 355.6 [14.00] 508.0 [20.00] 304.8 [12.00]
LEGEND
NEC — National Electrical Code
REQUIRED CLEARANCES TO COMBUSTIBLE
MATERIAL, mm [in.]
Top of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Duct Side of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . 0
Bottom of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
NEC REQUIRED CLEARANCES, mm [in.]
Between Units, Power Entry Side
. . . . . . . 1066.8 [42.00]
Unit and Ungrounded Surfaces,
Power Entry Side . . . . . . . . . . . . . . . . . 914.0 [36.00]
Unit and Block or Concrete Walls and Other
Grounded Surfaces, Power Entry Side . . . . 1066.8 [42.00]
REQUIRED CLEARANCES FOR SERVICING, mm [in.]
Condenser Coil Access Side . . . . . . . . . . . . 762.0 [30.00]
Power Entry Side
(Except for NEC Requirements) . . . . . . . . . 762.0 [30.00]
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . 914.0 [36.00]
Side Opposite Ducts . . . . . . . . . . . . . . . . . 762.0 [30.00]
NOTES:
1. Clearances must be maintained to prevent recirculation of
air from condenser-fan discharge. With the exception of the
condenser coil (914 mm [36 in.]), a removable fence or bar-
ricade requires no clearance.
2. Dimensions are in millimeters. Dimensions in [
] are in inches.

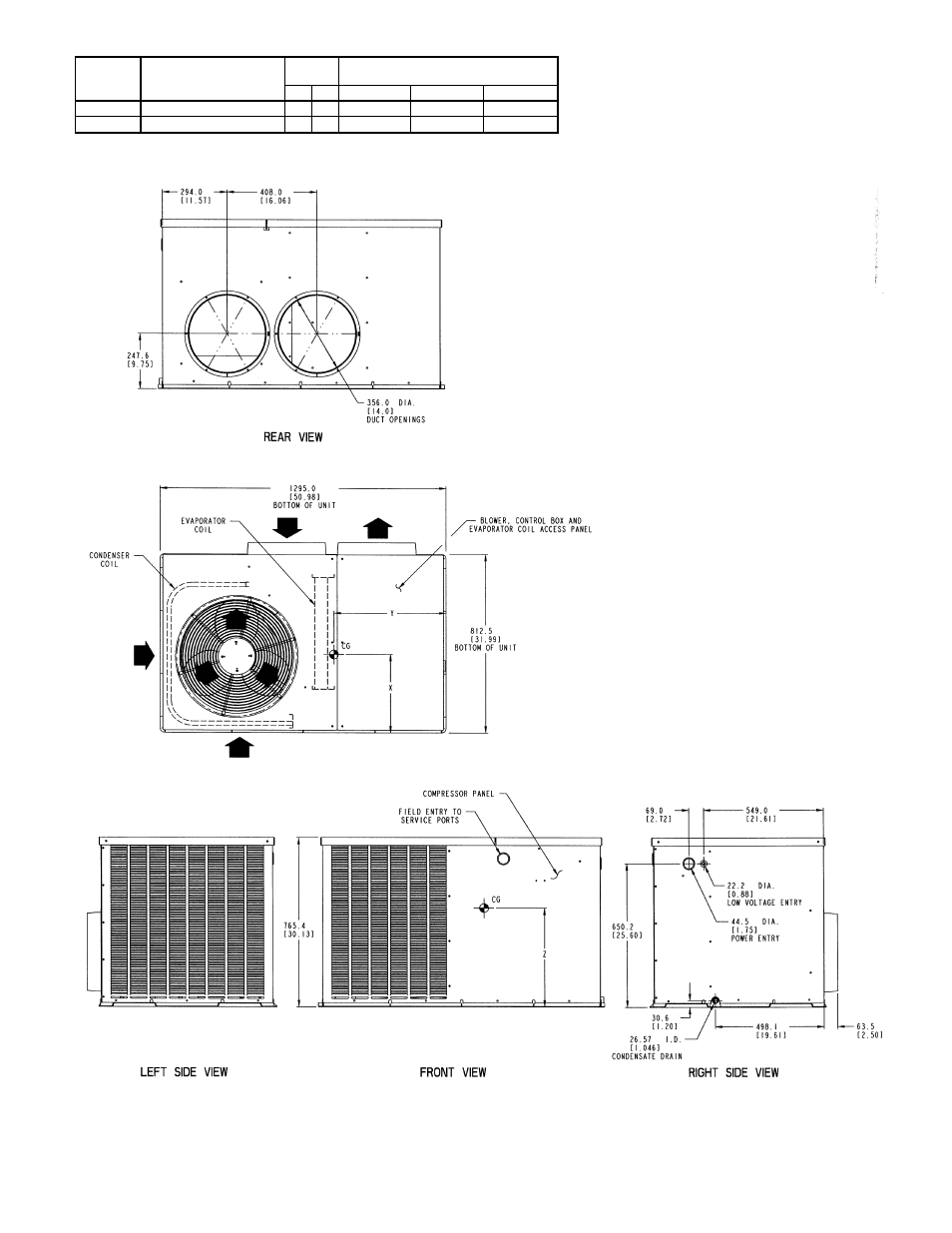

Fig. 3 — Base Unit Dimensions — 564A/764A042,048
