Apple iMac G5, 20-inch User Manual
Page 8
8 -
iMac G5 Inverter, 20-inch
8.

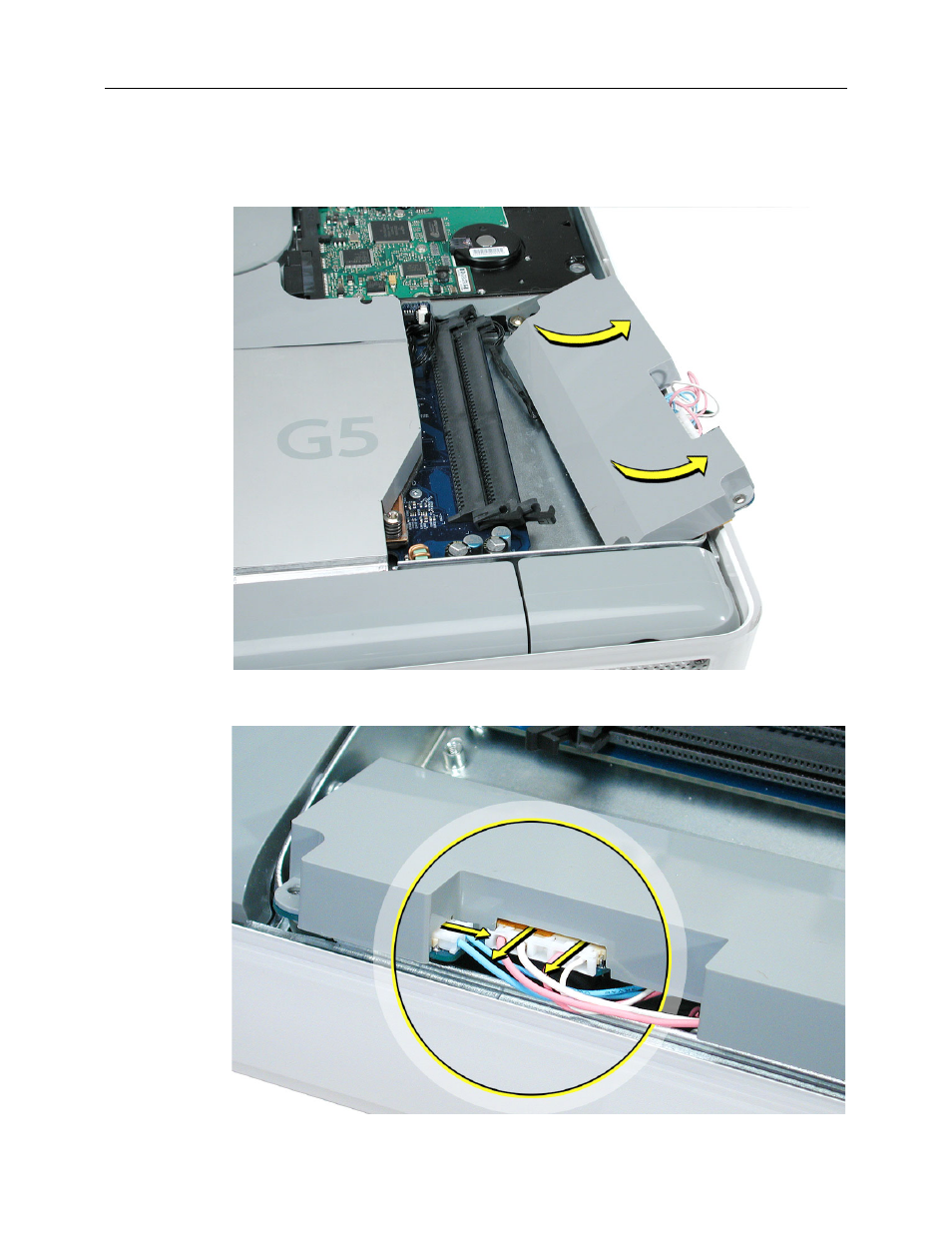

Slide the inverter out at an angle. Locate the colored cables connected on the right
side of the inverter.
Important:
Carefully slide out the inverter so that it doesn't make
contact with the DIMM connector latches
.
9.
Disconnect the two inverter cables by pulling on the connectors, not on the cables.
Disconnect the larger connector first.
