Apple iMac G5, 20-inch User Manual
Page 11
iMac G5 Inverter, 20-inch -
11

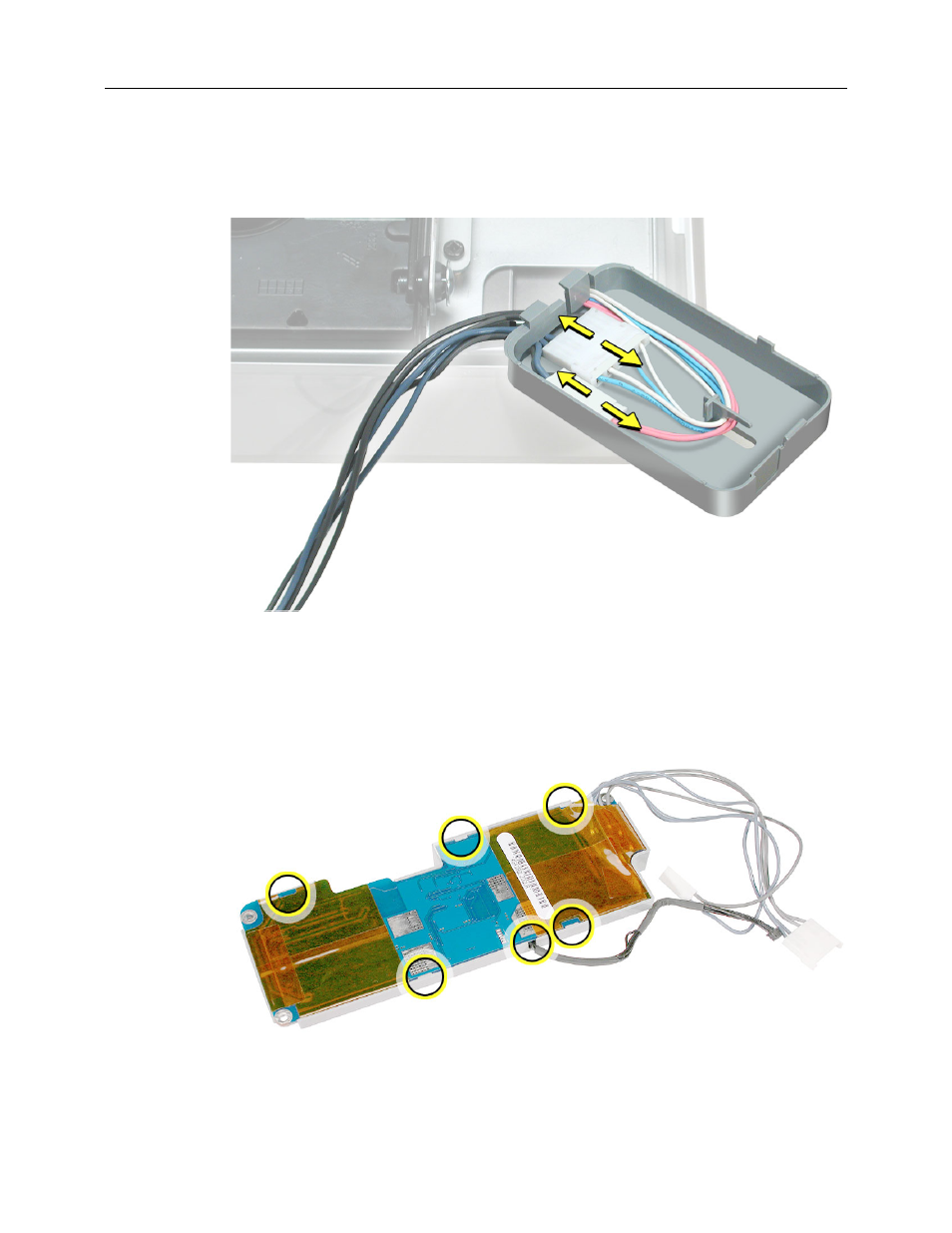

14. Disconnect the two white connectors underneath the cover. Pull on the connectors,
not on the cables. Free the cables from the clips inside the cover. Set the inverter and
cover aside.
15. Turn over the inverter as shown. Using your fingers or a flatblade screwdriver, remove
the gray plastic inverter cover by prying the tabs (circled below) away from the board.
Set the cover aside.
