iMac G5 Inverter, 20-inch -

15

5.

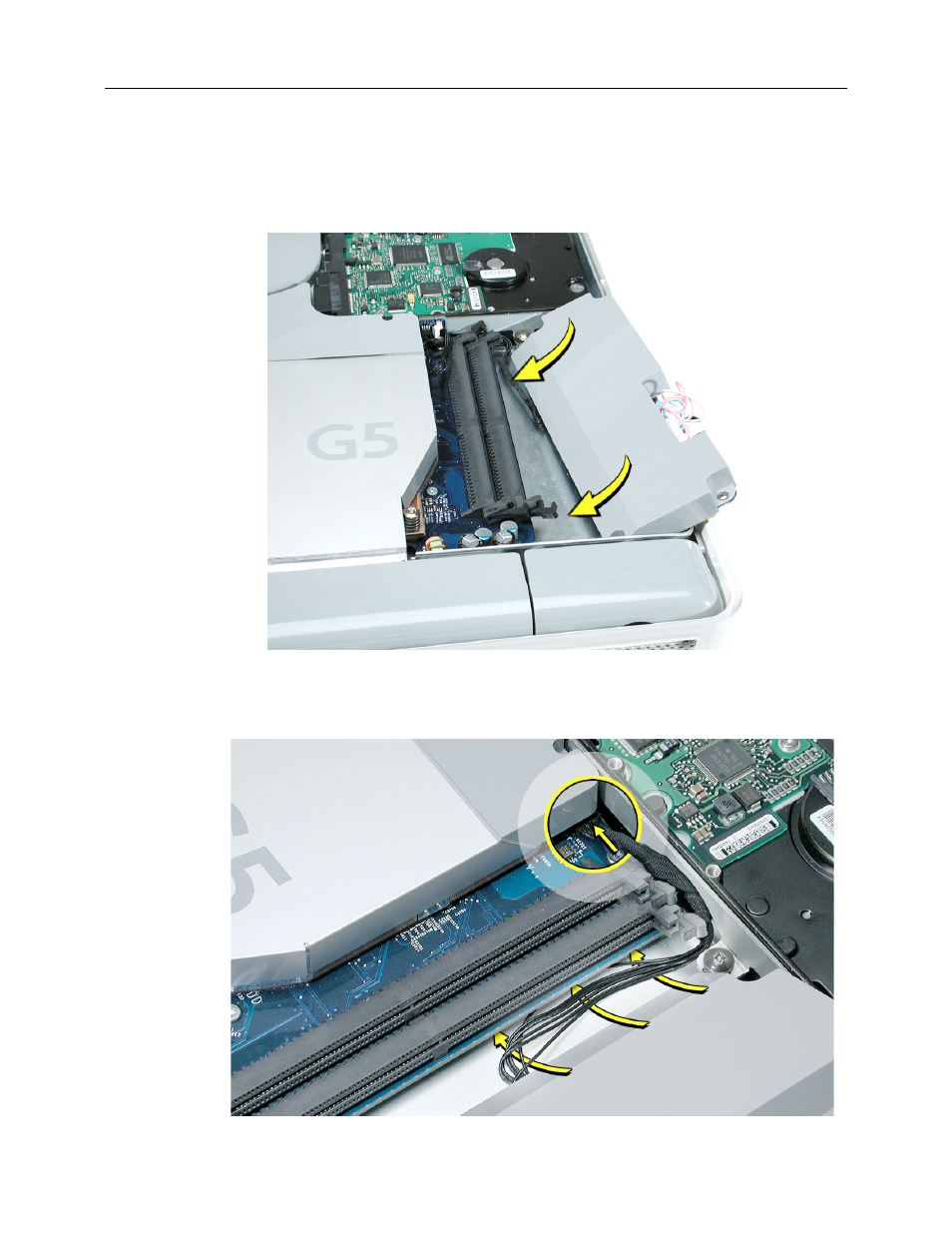

Slide the inverter partially into place.

Note:

The excess black cable tucks under the

memory slots.

Important:

Be careful of the DIMM latches when you install the

inverter board, they are very delicate. Push the DIMM latches into the closed position

before installing the inverter board.

6.

Route the black inverter cable along the side of the hard drive. With a needlenose

pliers, or other small tool, push the inverter cable (the teeth on the connector face up)

into the connector.
