Xserve (Early 2008) Front Bezel Brackets Replacement Instructions
3
Removing the Installed Front Bezel Brackets

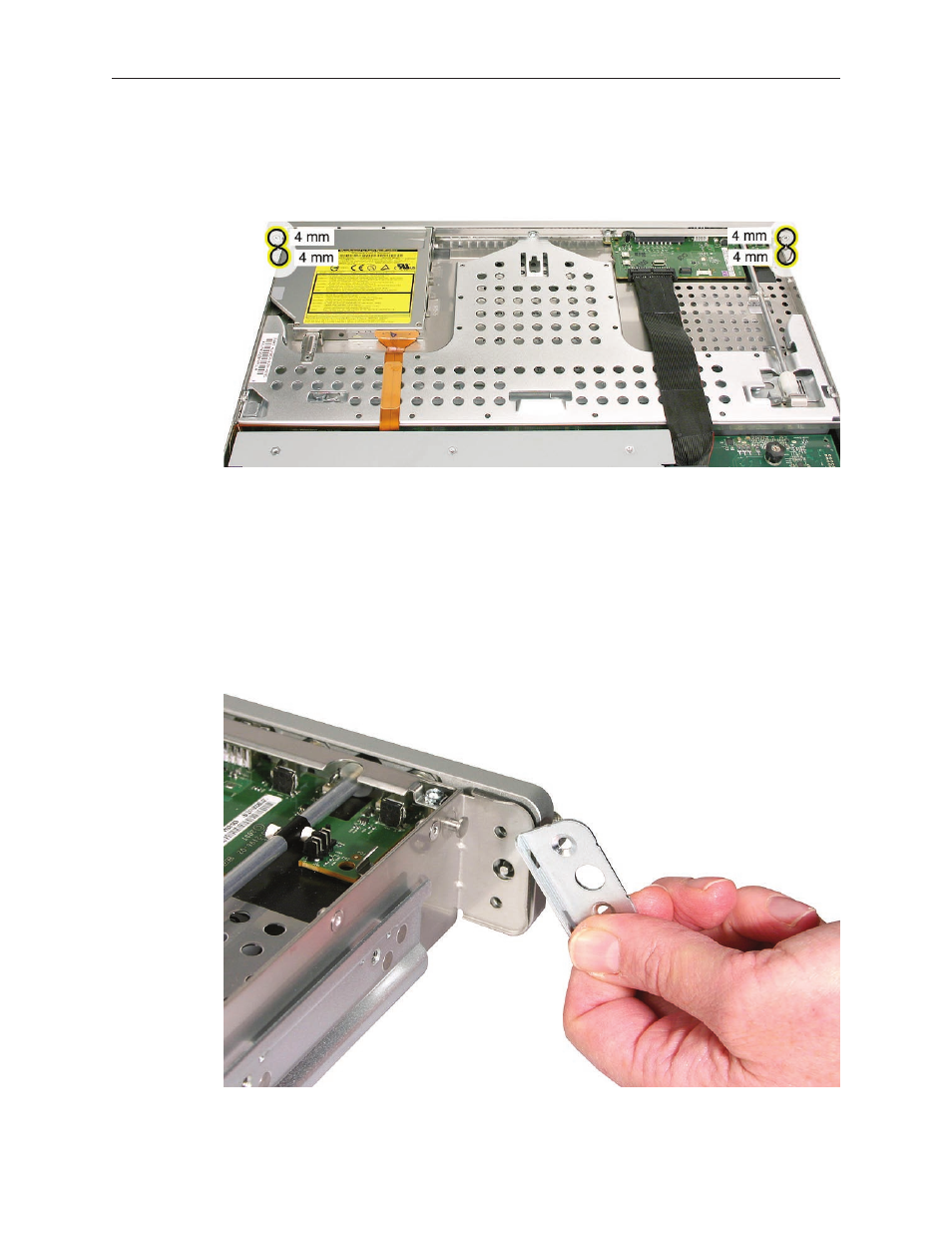

From behind the front bezel, remove the four identical 4-mm long screws and the two brackets.
Important: When removing or replacing the bezel brackets, be careful not to put pressure on the
top of the bezel over the optical drive slot.
Installing the Replacement Front Bezel Brackets
Position the right replacement bracket on the server, and install its two mounting screws.
1.
Repeat for the left replacement bracket.
2.
