Xserve (Late 2006) Video Mezzanine Card Replacement Instructions

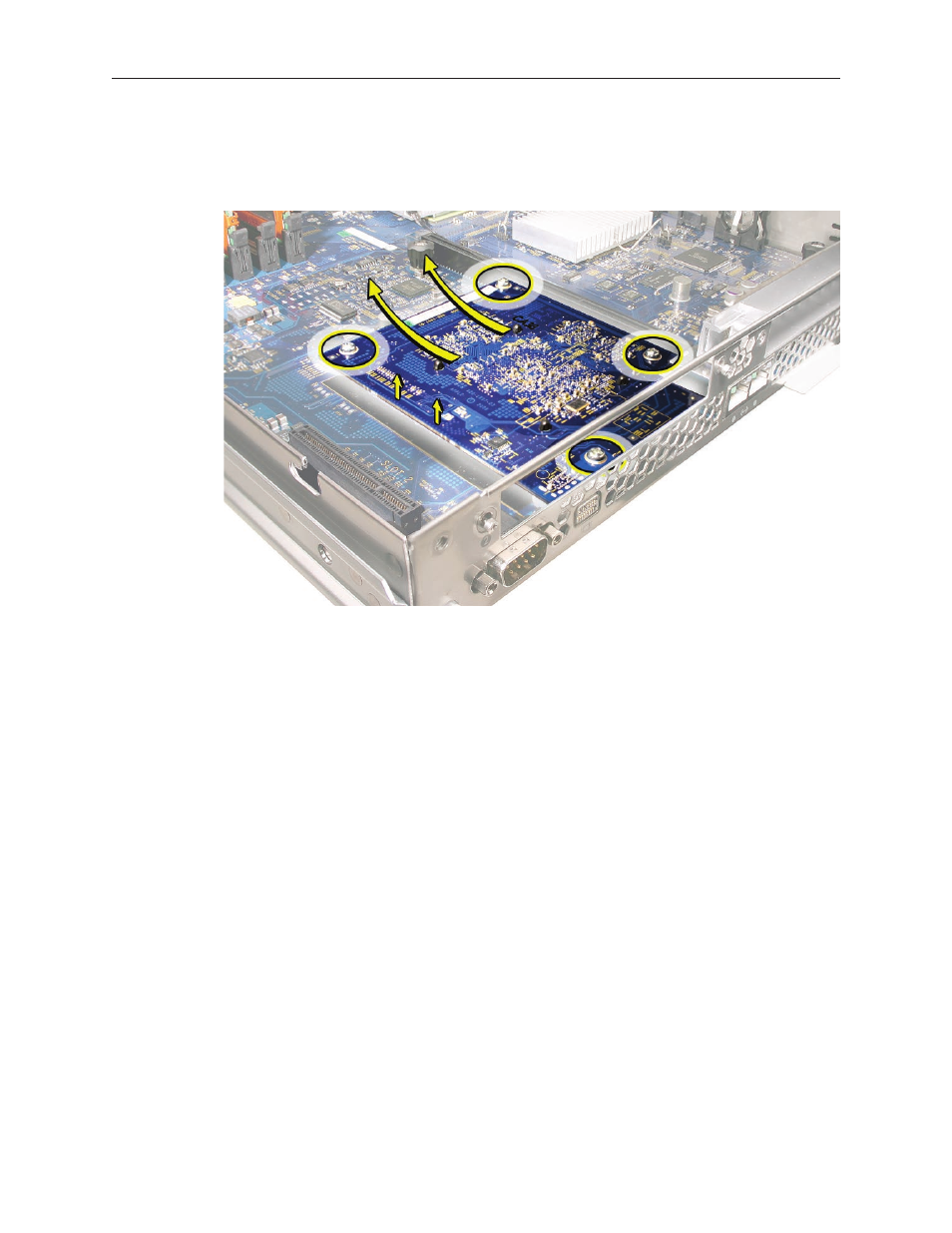

Remove the four Phillips screws that fasten the mezzanine card to the logic board.
Pull up evenly on all sides of the card to disconnect it from its logic board connector under

the card, and remove the card from the Xserve.

Installing the Replacement Video Mezzanine Card

Align the replacement video mezzanine card with its logic board connector and press down

gently and evenly on the card to seat it.

Replace the card’s four mounting screws.

Replacing the Right PCI Riser Card

Align the right riser card with its slot on the logic board and press to seat the riser.

Tighten the captive screws that secure the riser bracket to the back panel.

Closing the Xserve

Replace and secure the cover.

Slide the Xserve back into the rack, and tighten the front thumbscrews to secure the Xserve
in the rack.

If the server case was locked, use the enclosure key to lock the security lock on the front
panel.
