- 13 -

2.9x9.5mm

MOUNTING SCREW

FIG.16

LOWER

FLUE

UPPER

FLUE

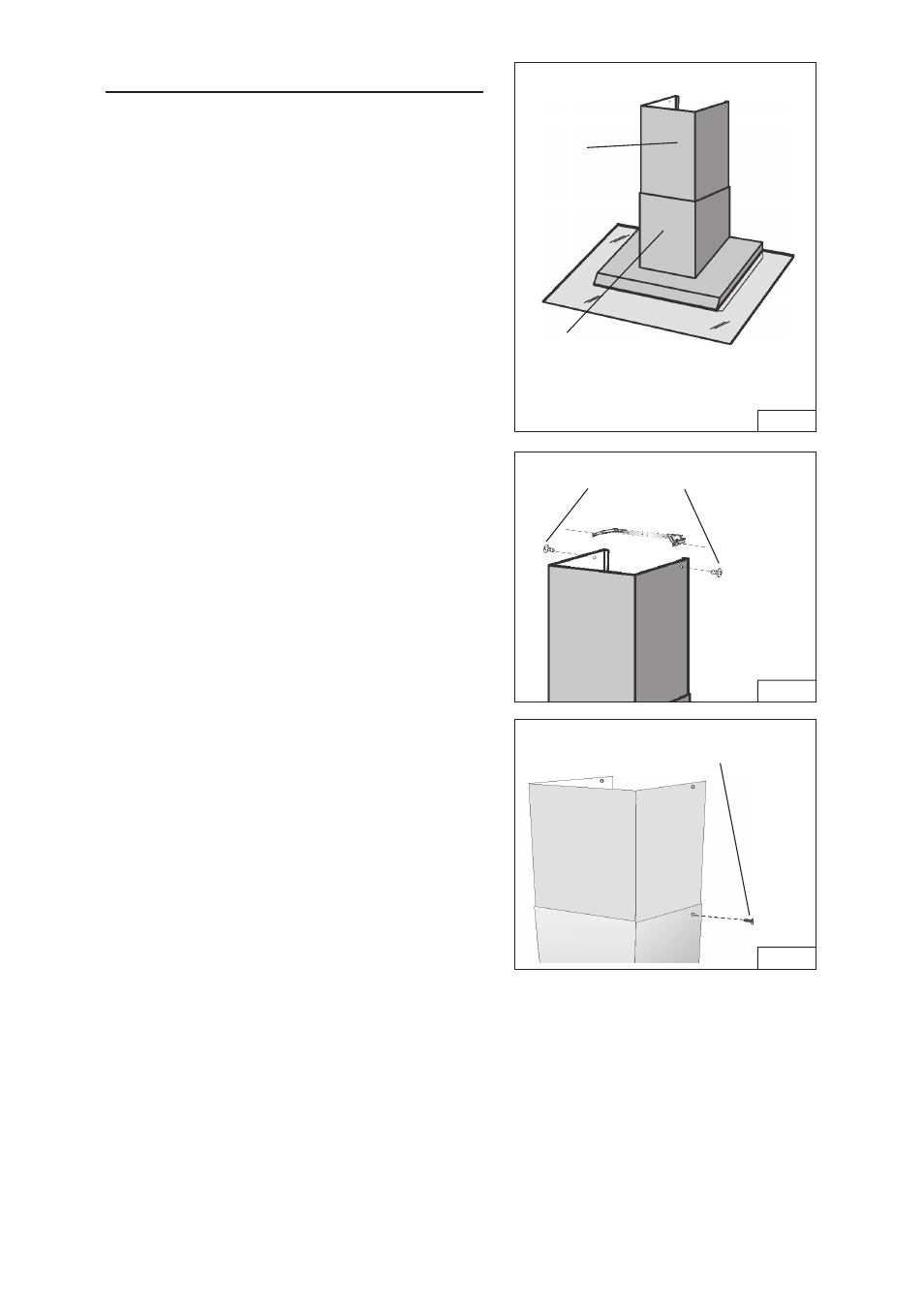

INSTALL THE HOOD, cont’d

7. Carefully place the decorative flue on the

hood. Fig. 14.

ROOMS WITH 10-FOOT CEILINGS

Rooms with 10-foot ceilings require flue ex-

tension model AEWC26xB, available from

your local dealer.

8. Discard the upper flue supplied with the

product. Replace it with the flue

extension.

9. Raise the upper flue until its holes align

with holes in the flue mounting bracket

(located on ceiling). Fig. 15.

10. Secure the flue with (2) 3.9x9.5mm

mounting screws. Fig. 15.

11. Secure the lower flue to the upper flue

with (1) 2.9x9.5mm mounting screw. Drill

the hole (1/16” Diameter) in the upper

flue. Fig. 16.

3.9x9.5mm

MOUNTING SCREWS

FIG.15

FIG.14
