INSTALL FLUE MOUNTING
BRACKET

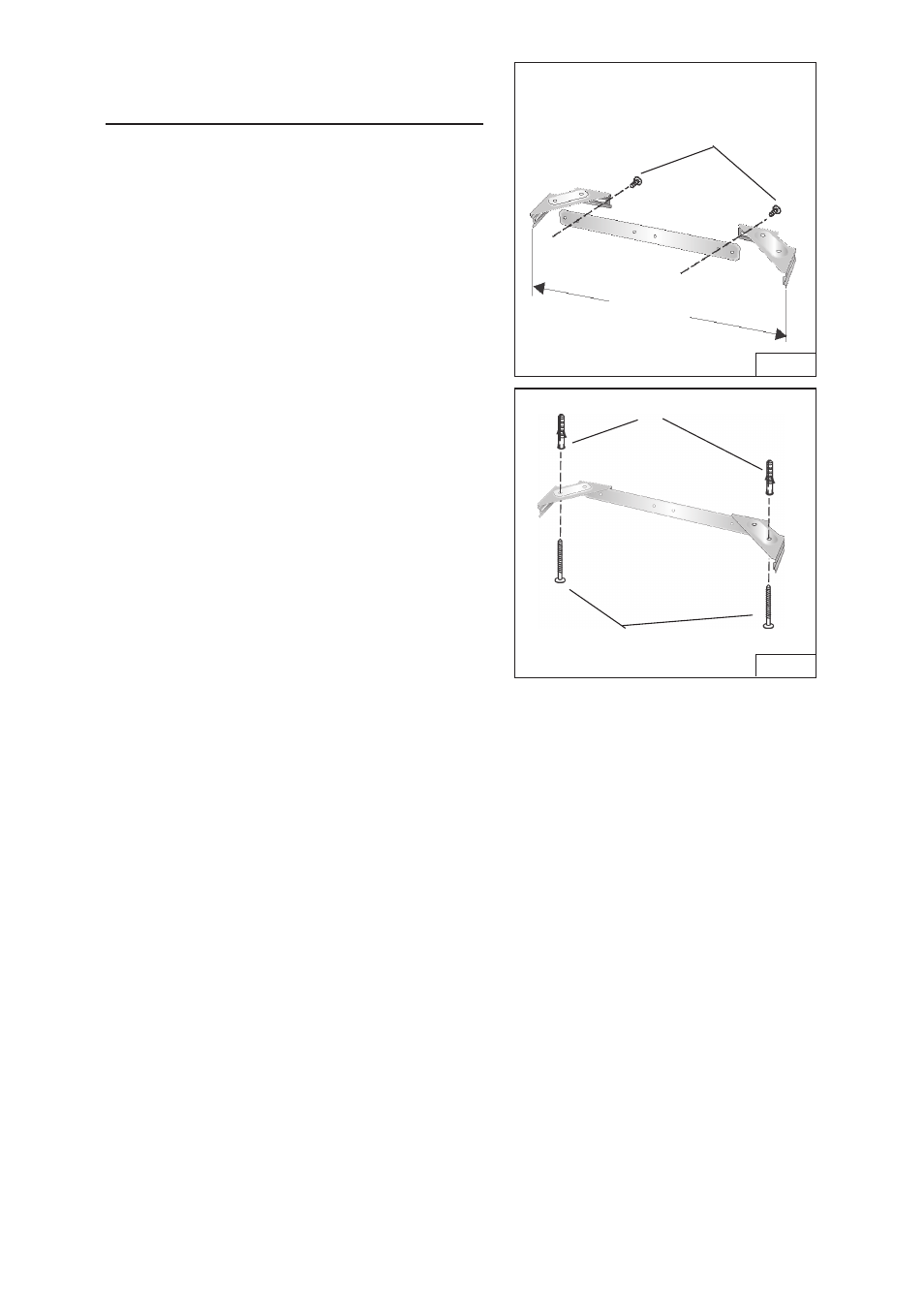

1. Assemble the flue mounting bracket,

adjusting outside width as shown. Fig.10

2. Carefully center the mounting bracket

directly over the range hood location.

3. Secure the bracket assembly to the ceiling

using (2) 4.8x38mm mounting screws

and drywall anchors (Fig. 11). Make sure

the bracket is pushed into the corner,

tight against the wall and centered over

the hood.

FLUE MOUNTING BRACKET

9-13/16”

(24.9 cm)

FIG.10

3.9 x 6 mm FLAT HEAD

BRACKET SCREWS

FIG.11

4.8x38mm

MOUNTING SCREWS

DRYWALL ANCHORS
