Xserve (Late 2006/Early 2008) FB-DIMM Memory Replacement Instructions 5

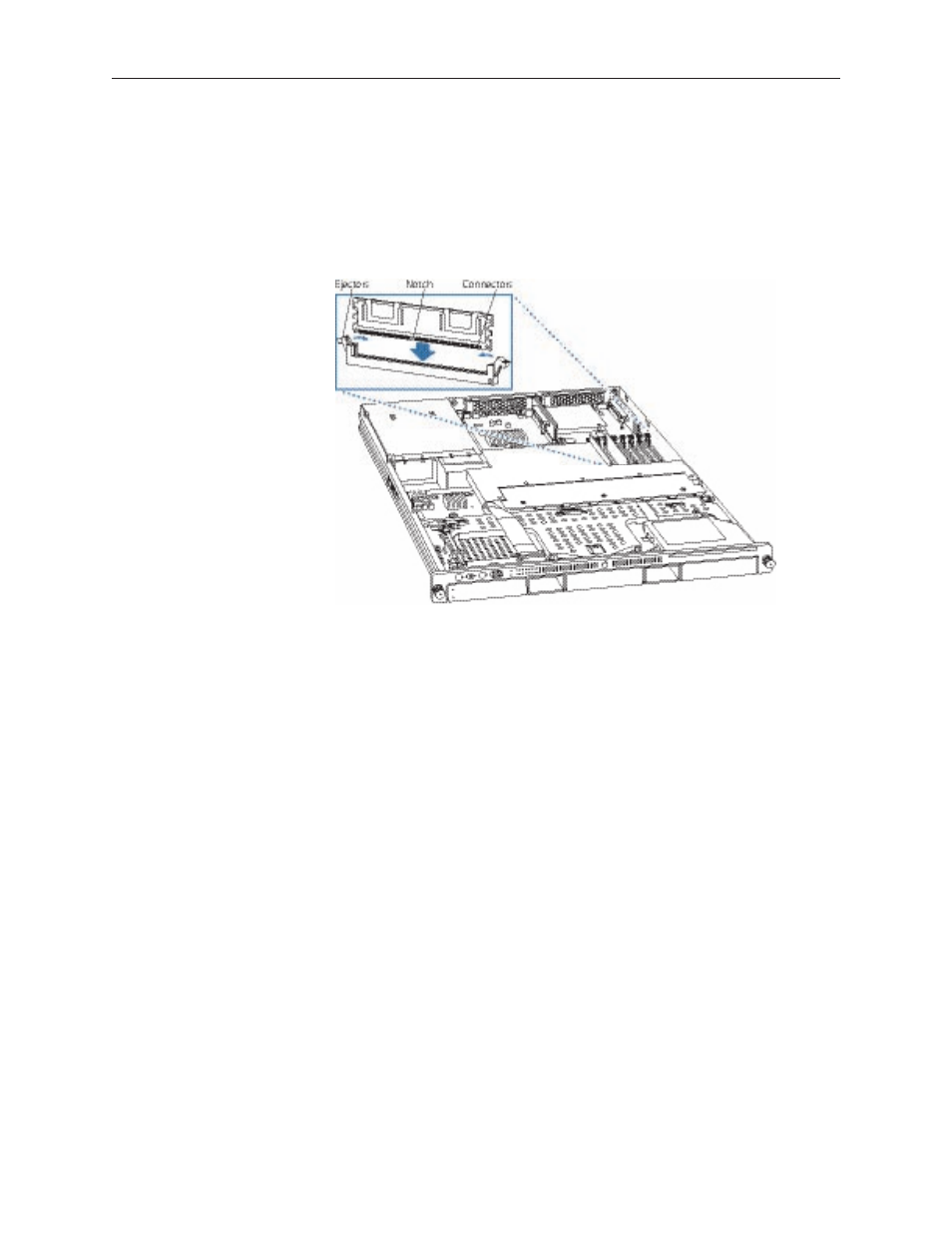

Installing the Replacement FB-DIMM
Position the replacement FB-DIMM over the memory slot. 1.
Note: The FB-DIMM is designed to fit into the slot only one way. Be sure to align the notch in
the FB-DIMM with the small rib inside the slot.
Press down until the FB-DIMM ejectors snap into place. 2.
Closing the Xserve
Replace and secure the cover. 1.
Slide the Xserve back into the rack, and tighten the front thumbscrews to secure the Xserve 2.
in the rack.
If the server case was locked, use the enclosure key to lock the security lock on the front 3.
panel.
Warning: Never turn on the server unless all of its internal and external parts are in place
and it is closed. Operating the server when it is open or missing parts can damage it or
cause injury.
