FAA Approved Installation Manual for the EDM-960 system Report No 909
Primary Engine Data Management System Page 26 of 46 Rev D
Date 2-6-2014
31. Manifold Pressure (MAP) Sensor

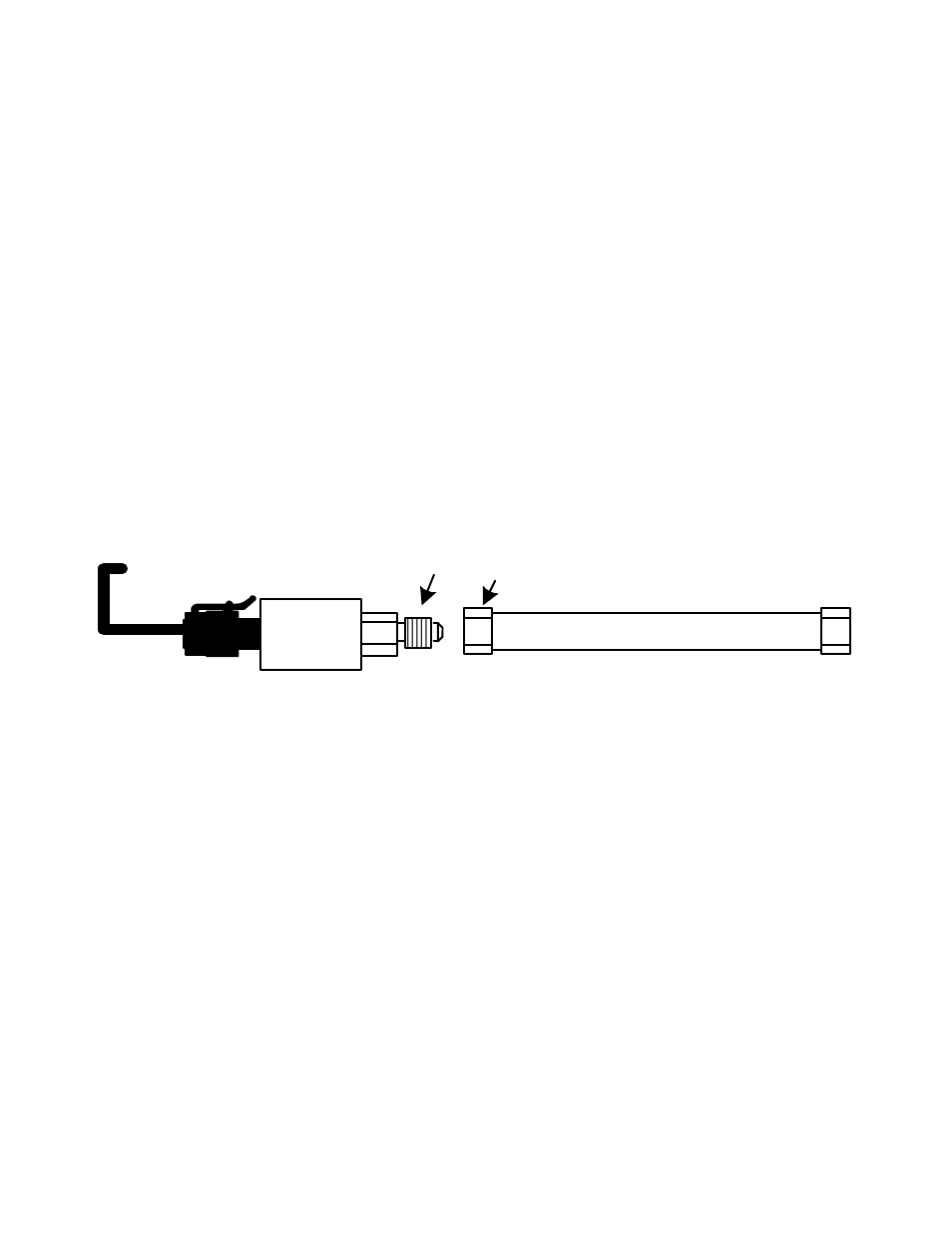

Screw an AN816-4D (flared to pipe thread) into the Aeroquip 303 hose to and from the bulkhead fitting an 832-4 as
shown below if not already installed from the aircraft factory MAP gage.
PN 159934A
0-30 PSIA
AEROQUIP 303 Flex hose
7/16 UNJF
#4 fitting
DO NOT MOUNT SENSOR DIRECTLY TO ENGINE
MS-24587 FITTING
P-2 GRN FP-Sig +
P-3 RED-FP PWR+5
P-1 BLK FP GND
Manifold Air-pressure
