FAA Approved Installation Manual for the EDM-960 system Report No 909
Primary Engine Data Management System Page 10 of 46 Rev D
Date 2-6-2014
11. EDM-960 in aircraft with centerline thrust engines

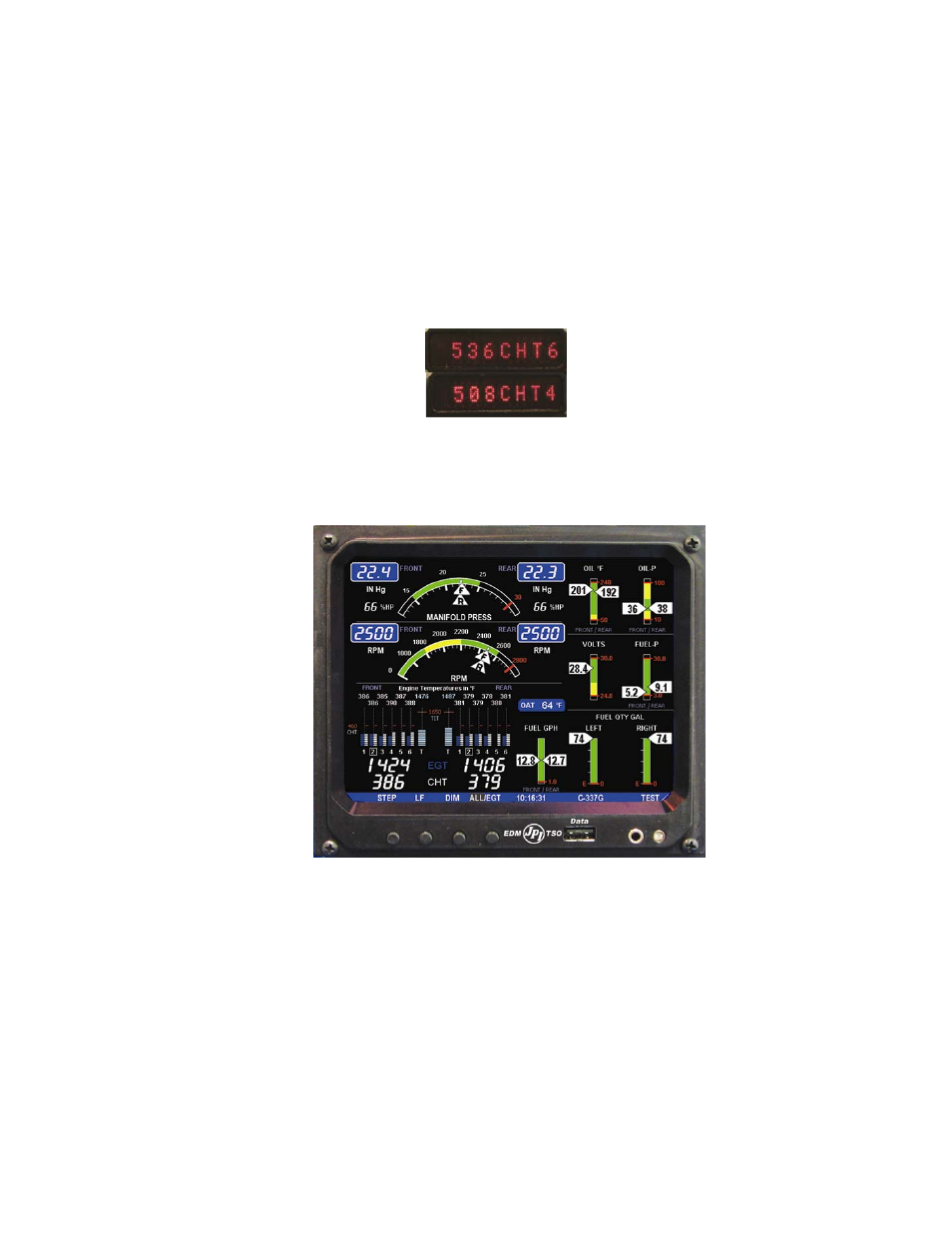

FRONT/REAR engine RAD’s must be oriented top to bottom as shown below.
FRONT
REAR
EDM-960 centerline thrust display
