Hornady Lock-N-Load Ammo Plant - Manual (Page 30)

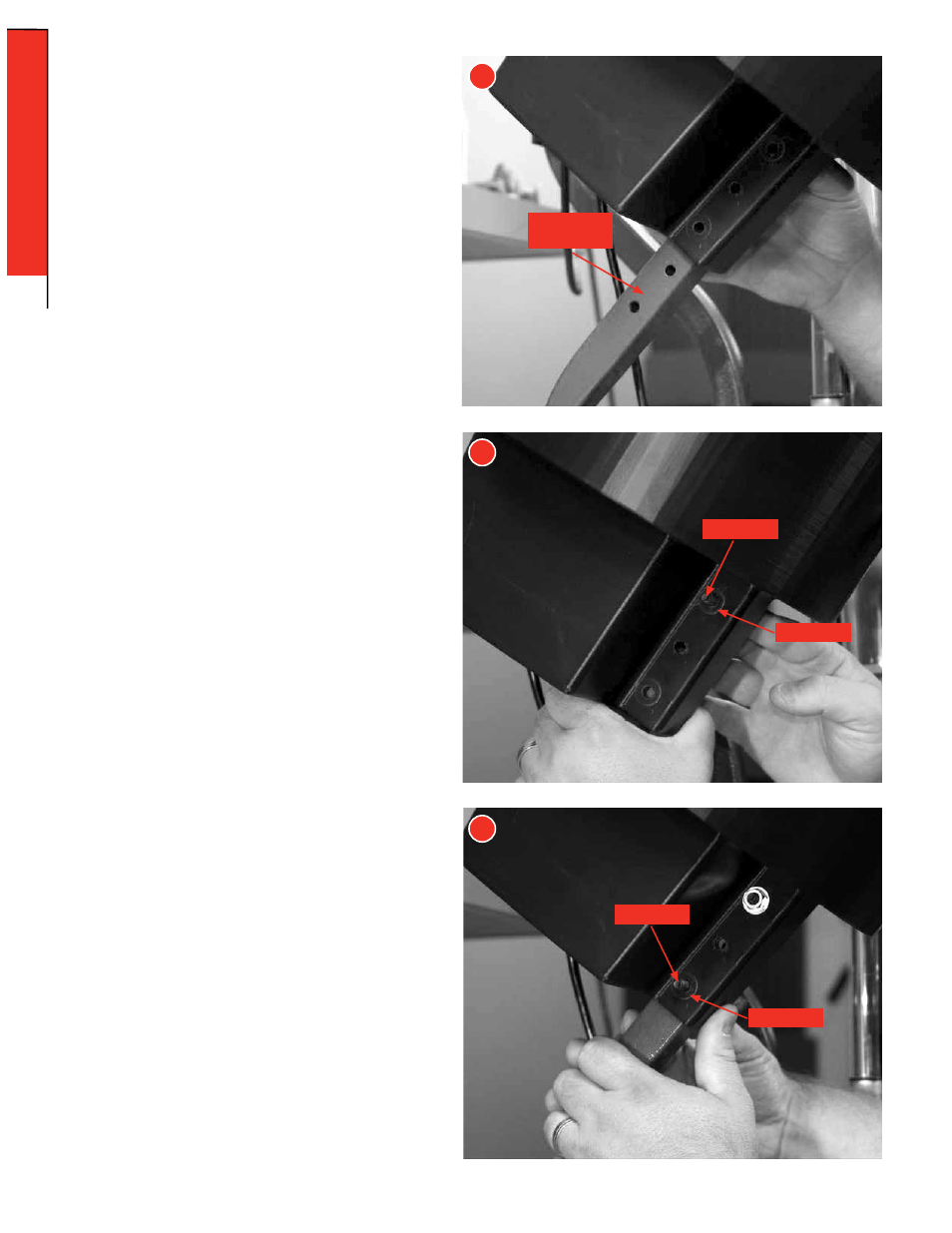

Place a ¼-20 X 2 SHCS Bolt (30) with one ¼" Flat Washer
(31) thru the bottom hole of the Bullet Feed Hopper and the
Square Tubing Mounting Bracket.
If you are having issues with bullets not being able to keep
up feeding (approximately 100 bullets in 5 to 6 minutes),
switch the bolt from the bottom hole to the middle hole.
Slide the Hopper (29) over the top of the Square Tubing
Mounting Bracket (37), with the open face of the Hopper facing
the front of the bench or table.
Place a ¼-20 X 2 SHCS Bolt (30) with one ¼" Flat Washer (31)
through the top hole of the Bullet Feed Hopper and the Square
Tubing Bracket.
Mounting the Bullet Feed Hopper to the
Square Tubing Mounting Bracket
4
5
6
Flat Washer
Flat Washer
SHCS Bolt
SHCS Bolt
4
5
6
Square Tubing
Bracket
- 30 -
ASSEMBL
Y
ASSEMBLY: PISTOL BULLET FEEDER
