PureFlow AirDog
AirDog
®
FP-100 & FP-150 Ford PowerStroke 1999 – 2003 7.3L
Section 5-E High Flow Suction Tube
INSTALLING THE HIGH FLOW SUCTION TUBE, C ont’d

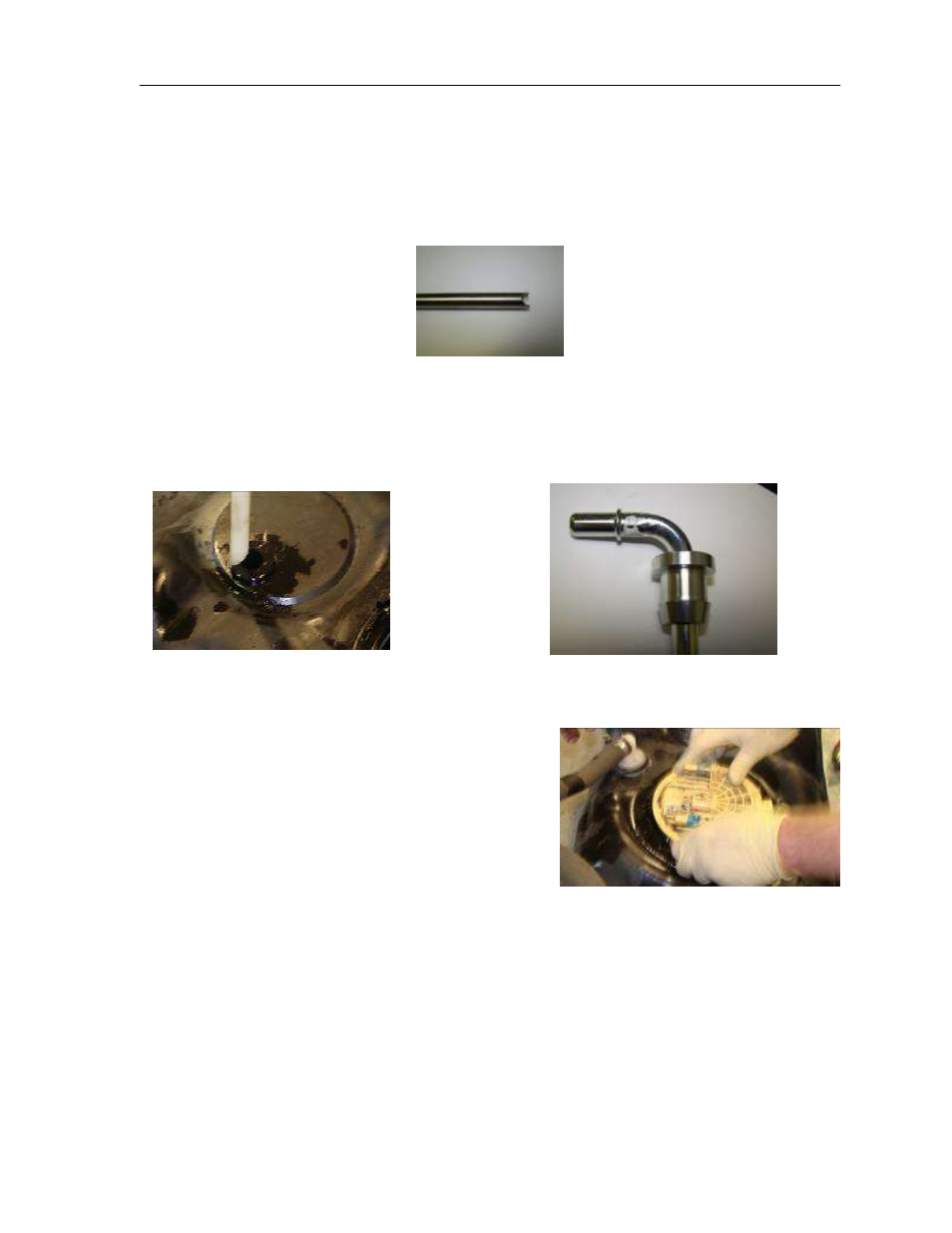

5D-5. Measure and cut the suction tube to a length that will allow approximately 1/8”
clearance off the bottom of the tank. It is suggested to form the end of the tube similar
to Figure 40.
Figure 40
5D-6. Lubricate the bulkhead fitting with motor oil. Pressing firmly, insert the suction tube
assembly into the grommet. Be sure the bulkhead fitting is completely seated in the
grommet.
Figure 41 Figure 42
5D-7. Re-install the Collection basket.
Figure 43
5D-8. Connect the end of the “Suction Hose Assembly” to the bulk head fitting while it is
easily accessible. A “click” will be heard when it is properly installed.
5D-9 Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose
