14
PureFlow AirDog
AirDog
®
FP-100 & FP-150 Ford PowerStroke 1999 – 2003 7.3L
Section 5-C Fuel Lines
Fuel Suction Line for AirDog
®
FP-100
, cont’d!

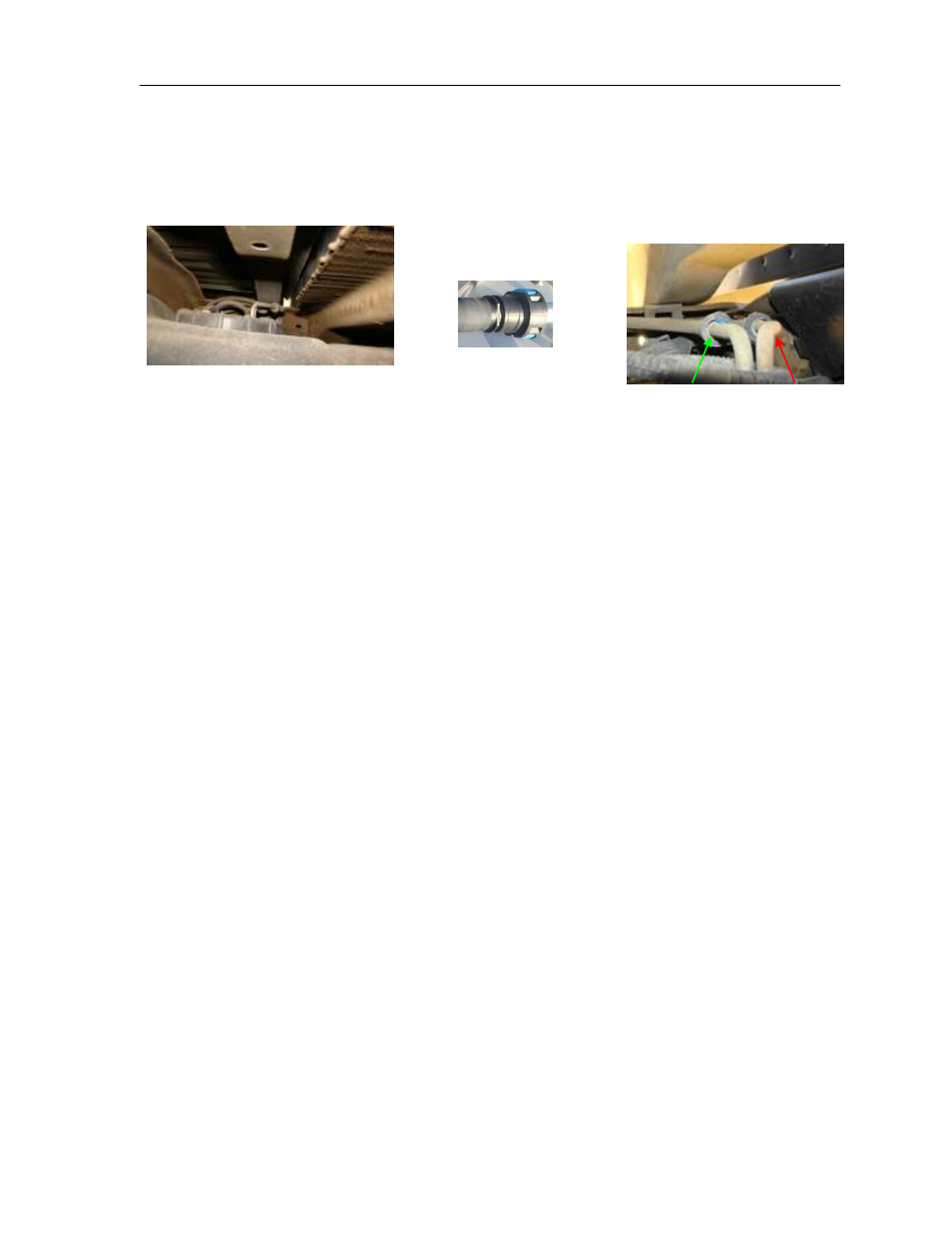

Figure 27
Figure 26
Figure 25 Suction Line Return Line
In More Detail
To release the quick-connect fitting from the fuel tank suction tube, push the fitting toward
the suction tube. With the plastic tabs firmly depressed, pull the fitting assembly from the
suction tube. Hold the Quick Connect Fitting square to the suction tube. It may be difficult to
disconnect the fitting it is cocked or becomes cocked during removal.
5C-3. Attach the other end of the “Suction Hose Assembly” to the male quick connect on
the top of the fuel module where the factory suction line was once located. A “click
will be heard when the assembly is properly connected. (Figure 27)
5C-4. Any excess fuel hose can be addressed by routing the hose in a fashion to take up
the extra length, or a section of the hose can be removed. Push lock splices have
been included if you choose to remove the excess hose.
