FP-100 & FP-150 Ford PowerStroke 1999 – 2003 7.3L
Section 5-A Fuel Lines
Fuel Supply Line from the AirDog
®
to the High Pressure Pump

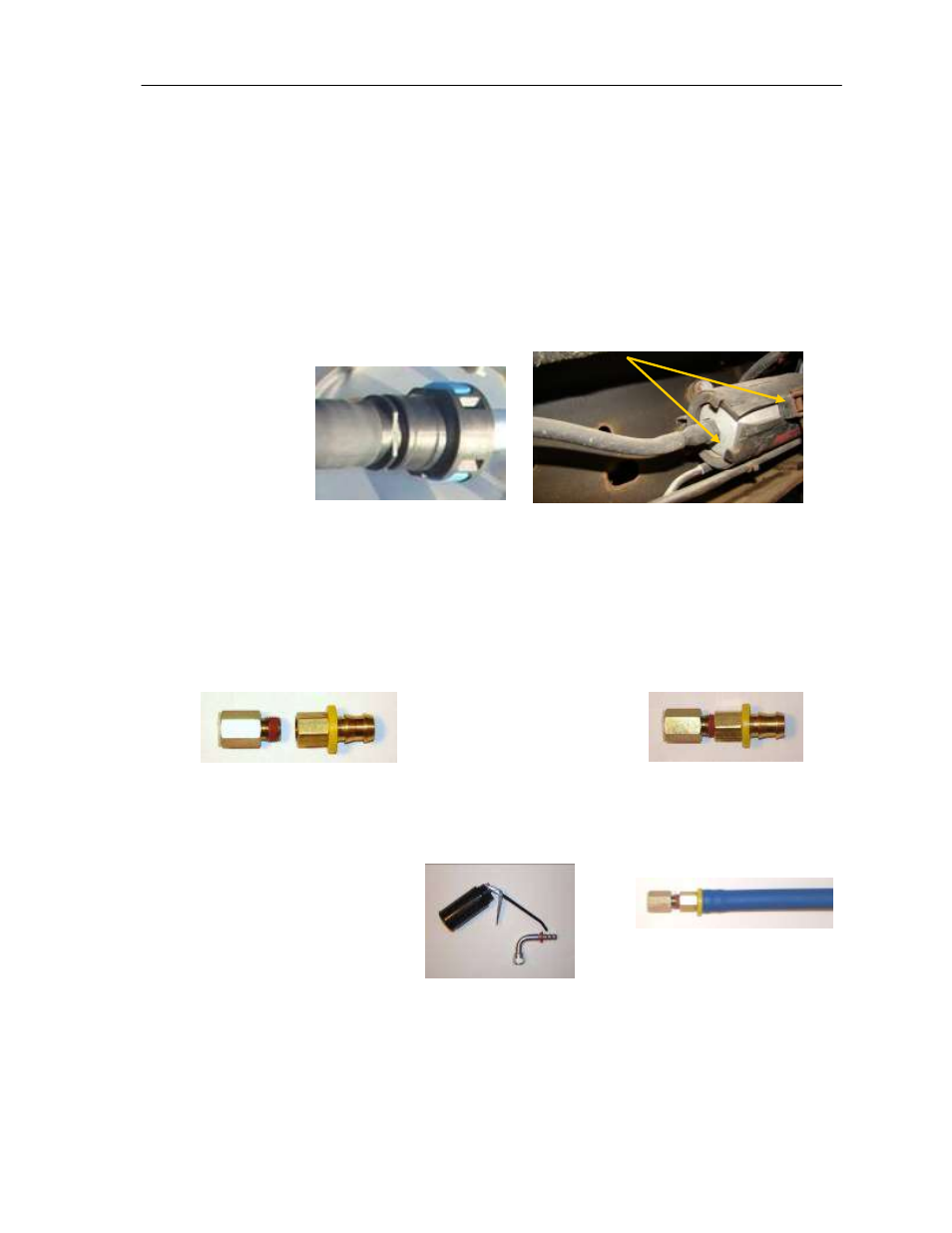

Remove the original factory fuel supply line at the electric OE lift pump, located on the
driver’s side inside frame rail by squeezing the tabs on the end of the connector together.
Push the quick connect fitting toward the OE lift pump while firmly depressing the tabs. With
the tabs depressed, pull the fitting assembly from the inlet tube. Use care to hold the quick
connect fitting squarely onto the inlet tube. It may be difficult to disconnect the fitting if it
becomes cocked during removal.
With 5/16” Quick Connect Fitting
Figure 14 Figure 15
5A-1. Measure and cut the length of line on the “Pressure Hose Assembly” required to
connect the 'Fuel to Engine' port on the AirDog
®
to the PowerStroke high pressure
fuel pump.
5A-2. Assemble the ¼”Female NPT x ½” push lock to the 5/16” Quick Connect fitting.
Figure 16 Figure 17
5A-3. Insert the push lock quick connect assembly into the cut end of the hose. Oil can be
used on the barb to ease the installation.
Figure 18 Figure 19
