FP-100 & FP-150 Ford PowerStroke 1999 – 2003 7.3L
Section 4 AirDog ® & Mounting Brackets
Installing the AirDog
®
& Mounting Brackets on the Truck’s
Frame, cont’d!
NOTE: You may attach the AirDog® to the bracket either before or after attaching the
assembly to the frame, whichever is easier for you. Mount the AirDog® so the “FUEL IN”
port is directed toward the rear of the vehicle.

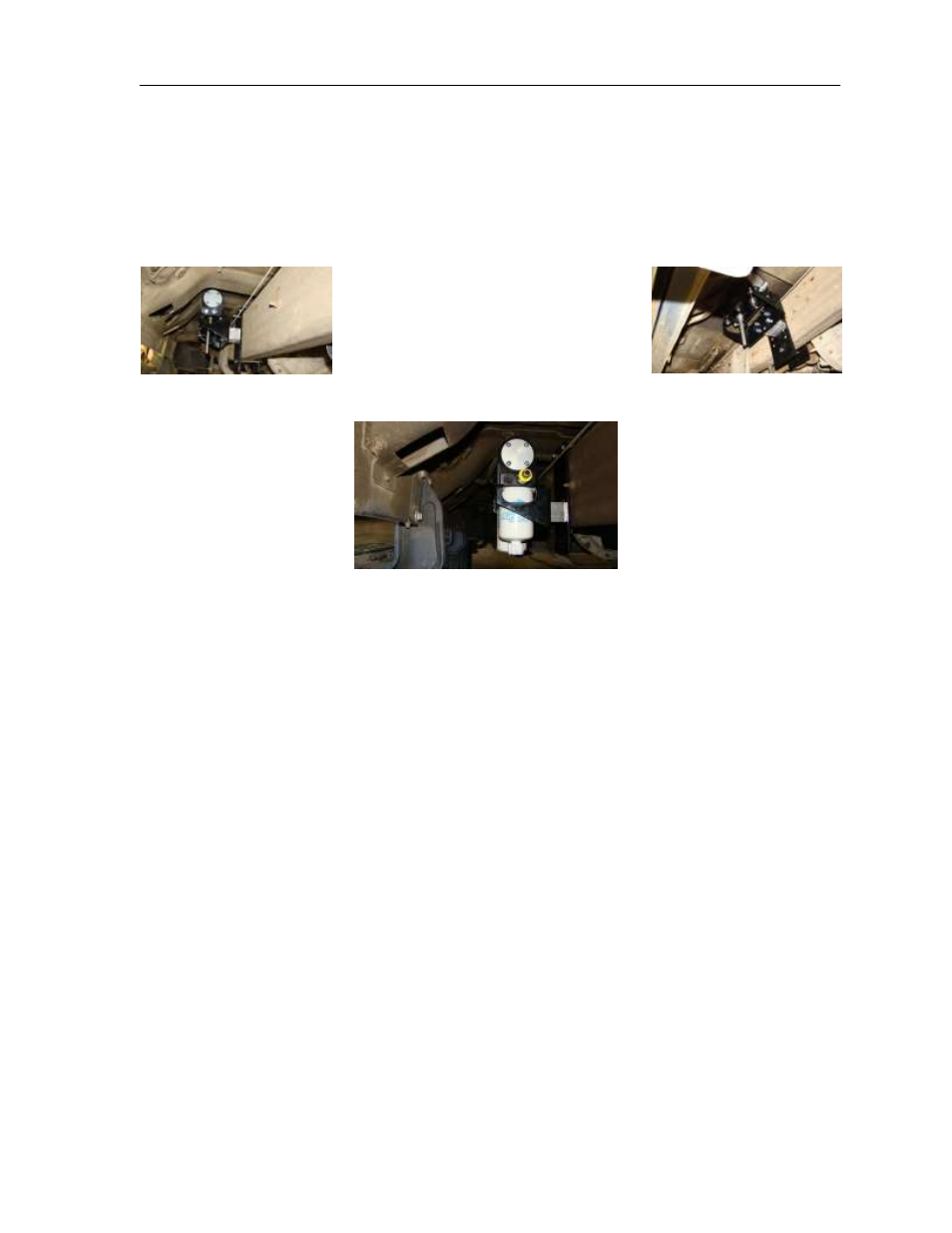

Figure 11
Figure 12
4-3.
Loose assemble the AirDog® and brackets to the vehicle by clamping the frame
between the mounting plate and back plate with bolts, lock washers, and nuts.
Figure 13
4-4. Position the AirDog® on the frame as necessary, for clearance. Properly torque the
fasteners!
