18
AirDog
®
II Ford PowerStroke 2008 - 2010 6.4L
Section 9 AirDog ® II Fuel Pump

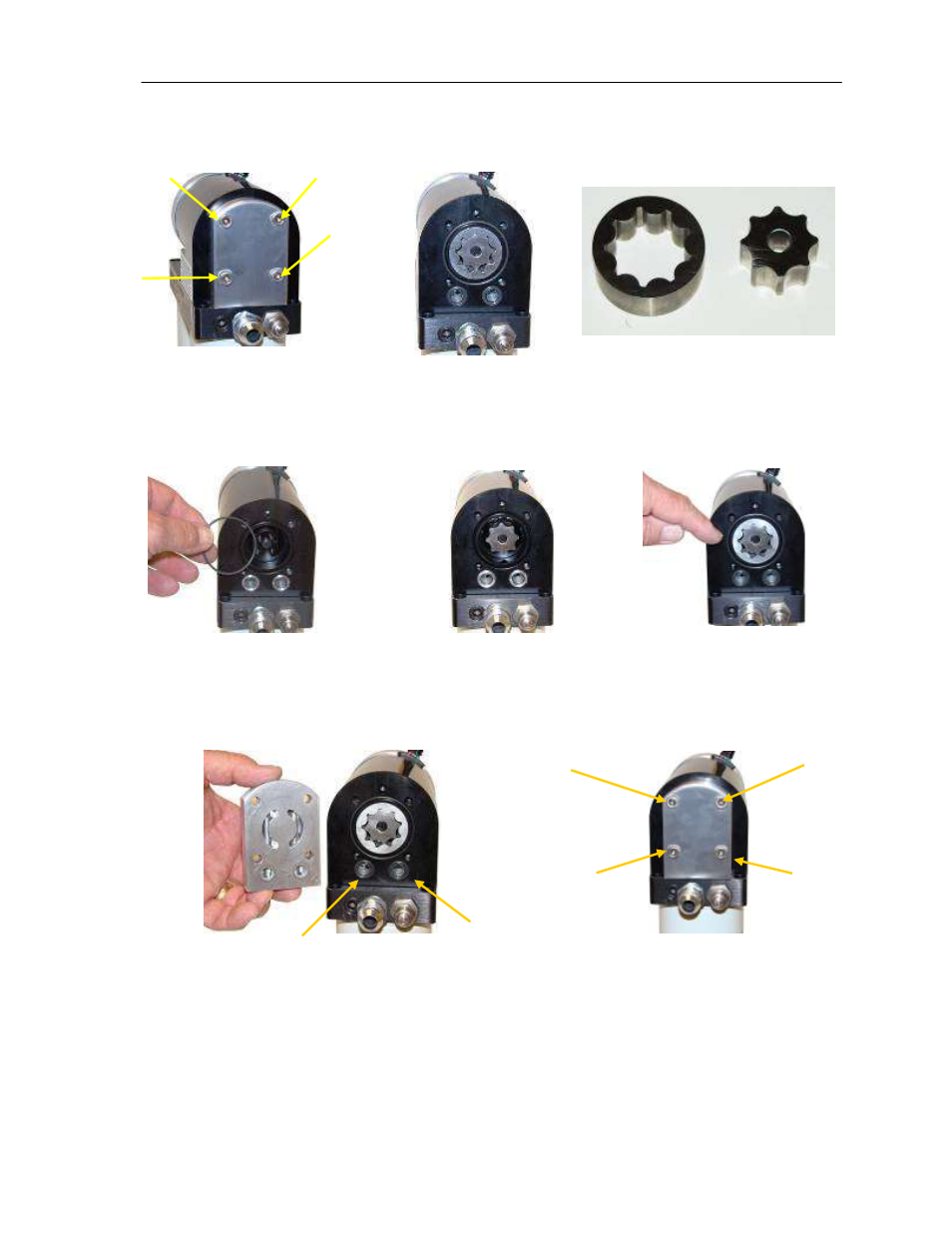

Cleaning Debris from the Gerotor Assembly
Step 1 Step 2 Step 3
Remove the four (4) socket Carefully remove the O-rings, Remove and clean the gerotor.
head cap crews that secure you will need to re-use it.
Be very careful not to damage
the gerotor cap. the gerotor.
Step 4 Step 5 Step 6
Remove the O-rings and clean
Replace the center gear. Align and install the outer
the inside of the gerotor pocket. gear and O-rings.
Step 7
Step 8
1 4
3 2
Install the gerotor cap. (See Note Below) Loose assemble the cap
be very careful not to dislodge or pinch screws. Torque the cap
the O-rings. screws in an opposing
pattern.
NOTE: The inner and outer gears of the gerotor are marked with a small indented square to
designate orientation. Install the inner gear and the outer gear with the indented square facing
the gerotor cap. Failure to do so can result in pump failure.
