11
AirDog
®
II Ford PowerStroke 2011 6.7L
Section 5-A Fuel Lines
AirDog
®
II Fuel Line to the Engine!

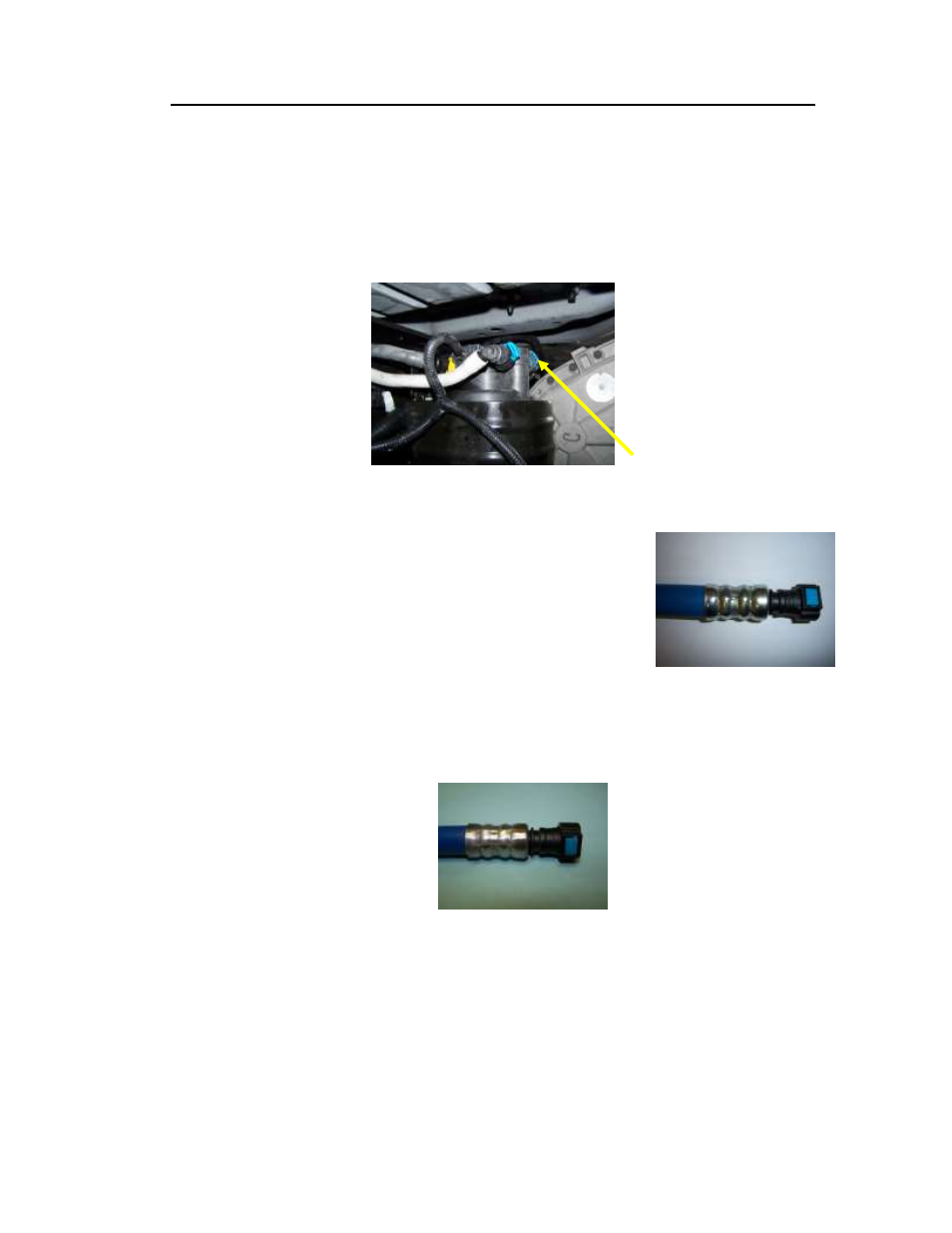

5A-1. Disconnect the fuel supply line coming from the tank to the inlet of OE filter canister.
This canister is located on the driver’s side inside frame rail. The fuel canister will stay in place.
Figure 12 DISCONNECT HERE
5A-2 Insert the female quick connect end (see figure 13) of the
“Pressure Hose Assembly” into the male quick connect
fitting previously installed in the port marked “ENGINE”.
You will hear a “click” when it connects.
Figure 13
5A-3. Connect the other end of the “Pressure Hose Assembly” (Figure 14) to
the top of the filter canister mentioned in step 5A-1 shown in figure 12. It will “click”
when properly connected.
Figure 14
5A-4 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
