AirDog
®
II Ford PowerStroke 2011 6.7L
Section 4 AirDog ® II & Mounting Brackets
Installing the AirDog
®
II & Mounting Brackets on the
Truck’s Frame, cont’d.
NOTE: The AirDog
®
II installs easily and is well protected from road debris when mounted on
the inside of the driver’s side frame. However, due to clearance issues some vehicles may need
to mount the system on the outside of the frame. Mount the AirDog
®
II as shown in Figure 10
below.

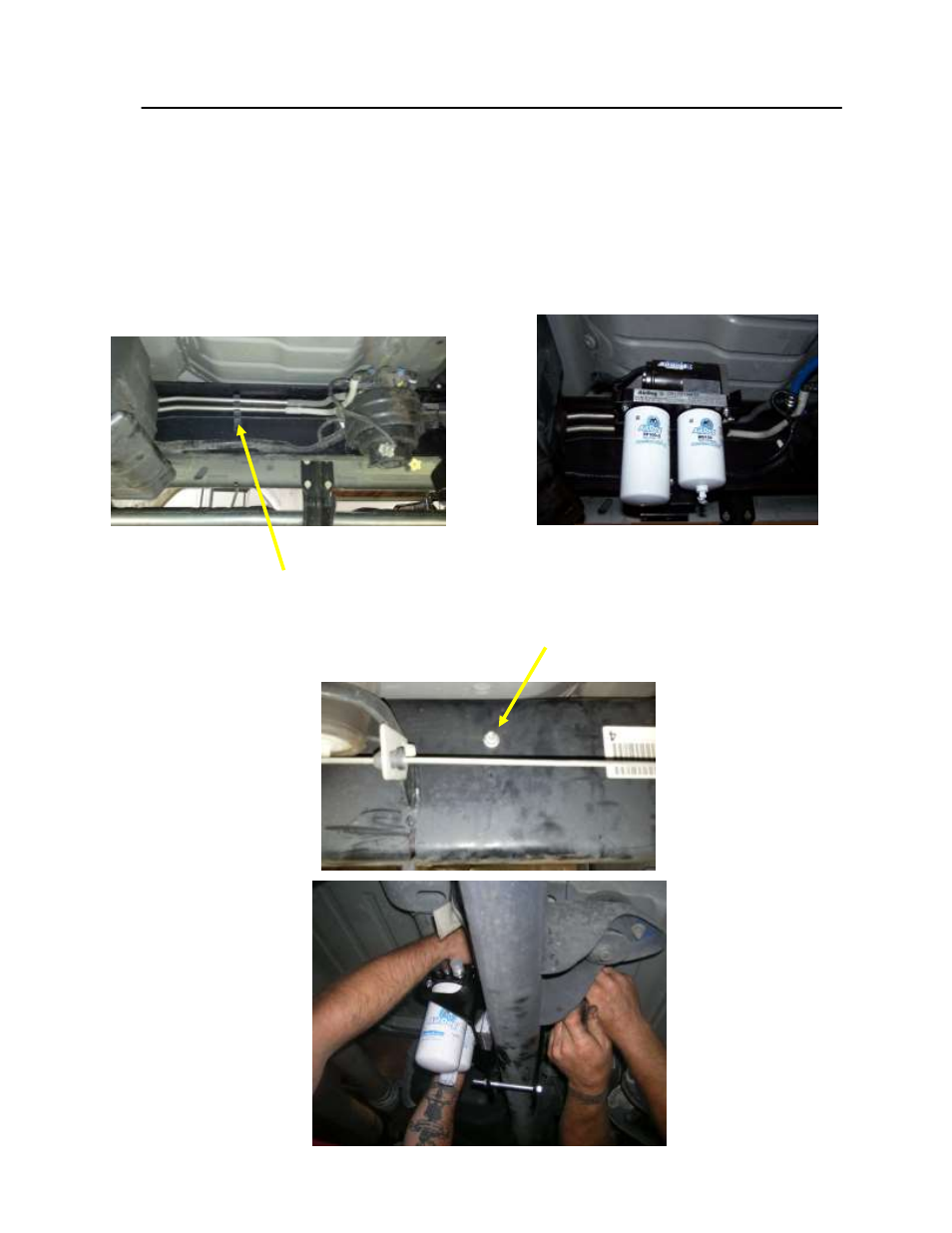

Inside Driver’s Side Frame Rail
Figure 9
Figure 10
4-6.
Clamp the frame between the AirDog®II bracket assembly and the backing plate using
the 3/8” bolts, lock washers, and nuts included in the kit. Be sure to tighten as much as
possible!!
It may be necessary to remove fuel line holder (shown in figure 9) when
installing outer frame mounting bracket.
