Section 9 AirDog®II Fuel Pump

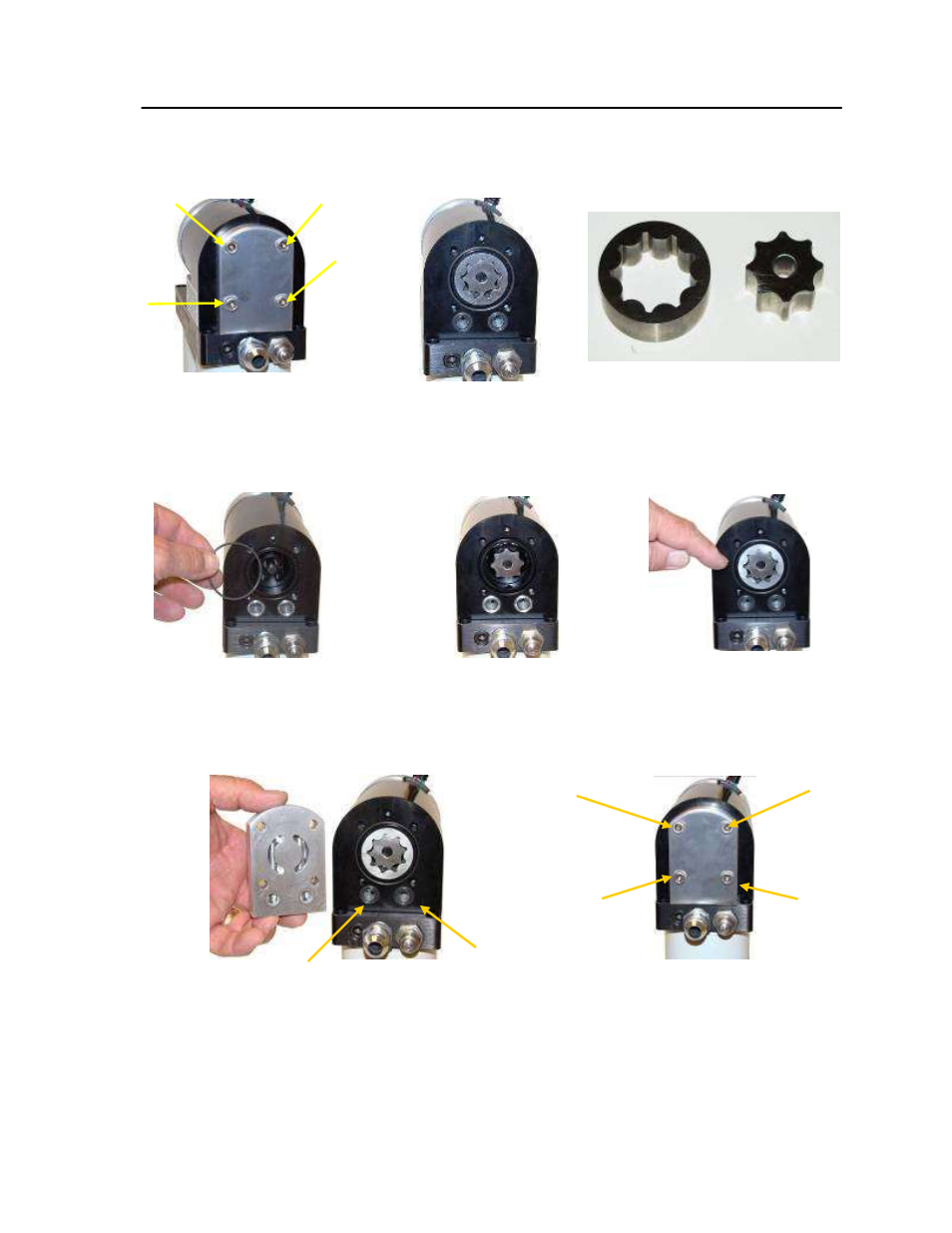

Cleaning Debris from the Gerotor Assembly

Step 1 Step 2

Step 3

Remove the four (4) socket Carefully remove the O-rings, Remove and clean the gerotor.
head cap crews that secure you will need to re-use it.

Be very careful not to damage

the gerotor cap.

the gerotor.

Step 4

Step 5

Step 6

Remove the O-rings and clean

Replace the center gear.

Align and install the outer

the inside of the gerotor pocket

gear and O-rings.

Step 7

Step 8

Install the gerotor cap. Be very

Loose assemble the cap

careful not to dislodge or pinch

screws. Torque the cap

the O-rings.

screws in an opposing

pattern.
