14
AirDog
®
II Ford PowerStroke 1999 - 2003 7.3L
Section 6 Electrical Harness
The AirDog
®
II is equipped with a relay controlled wiring harness.

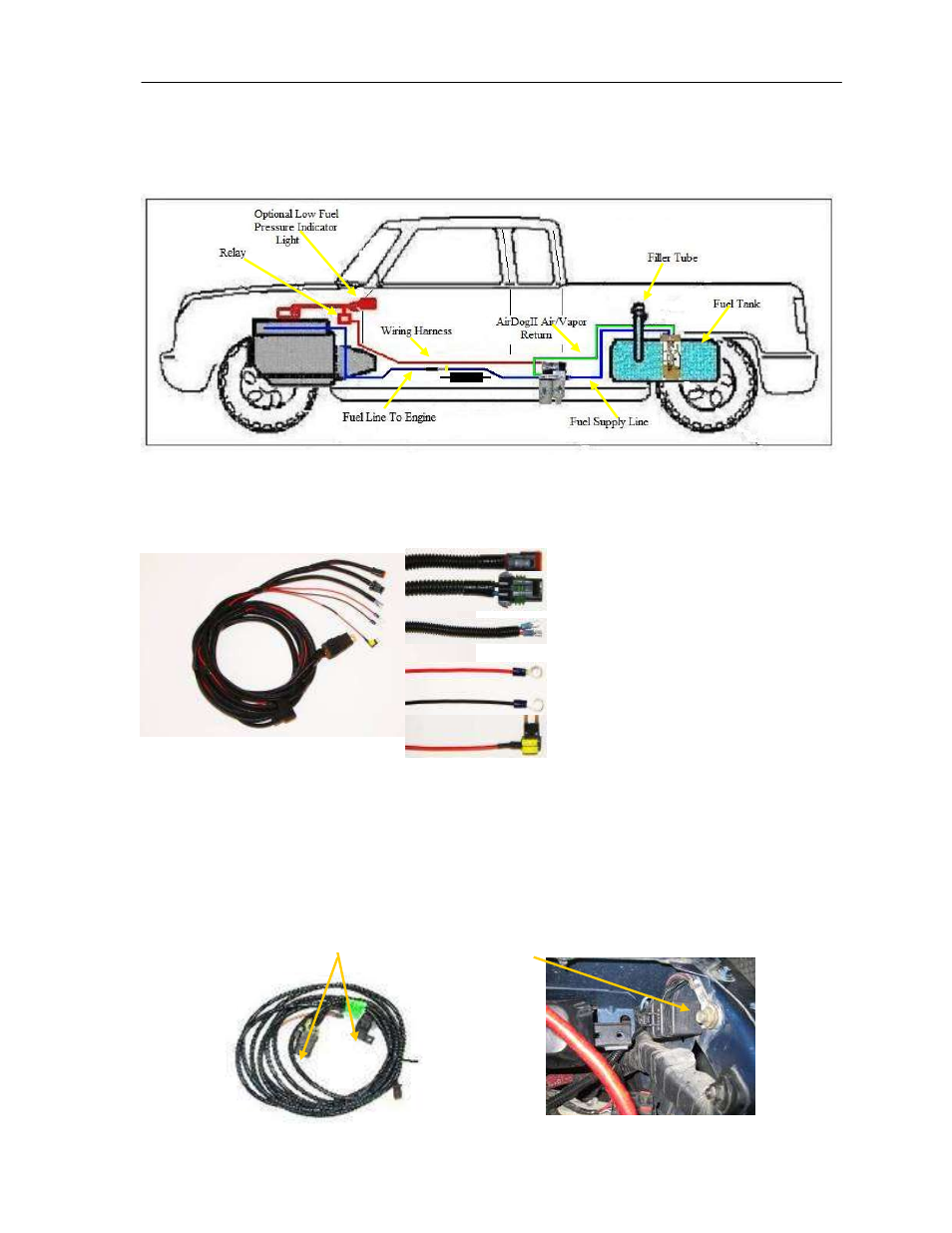

WIRING DIAGRAM (In Red)
Figure 45
The AirDog
®
II wiring harness!
AirDog®II Pump Motor Lead
Pressure Sensor/Switch Lead*
Indicator Light Lead*
Battery Positive Lead
Battery Negative Lead
Mini Fuse Tap Relay Lead
Figure 46
CAUTION: If the OPTIONAL Low Pressure Indicator Light is not used, be sure to insulate
the two (2) #10 Indicator Light connectors and pressure sensor lead to prevent accidental
contact. *The light kit is sold separately and is not included in the kit.
Securing the Relay and Fuse Holder to the Vehicle
6-1. Secure the relay and fuse holder to the vehicle.
Figure 47 Figure 48
