9
Raptor™ 100 & 150 1998.5- 2002 Dodge Cummins
Section 4 Raptor™ Fuel Pump & Mounting Brackets
Section 4: Mounting the Raptor™ to the Truck’s Frame.
The Raptor™ Fuel Pump is best mounted with the electric motor up, as shown.
4-1. Install 1/2” O-ring Boss X 3/4” male fitting (08J2044-3/4UNF) into the Raptor™ port
marked “IN”.

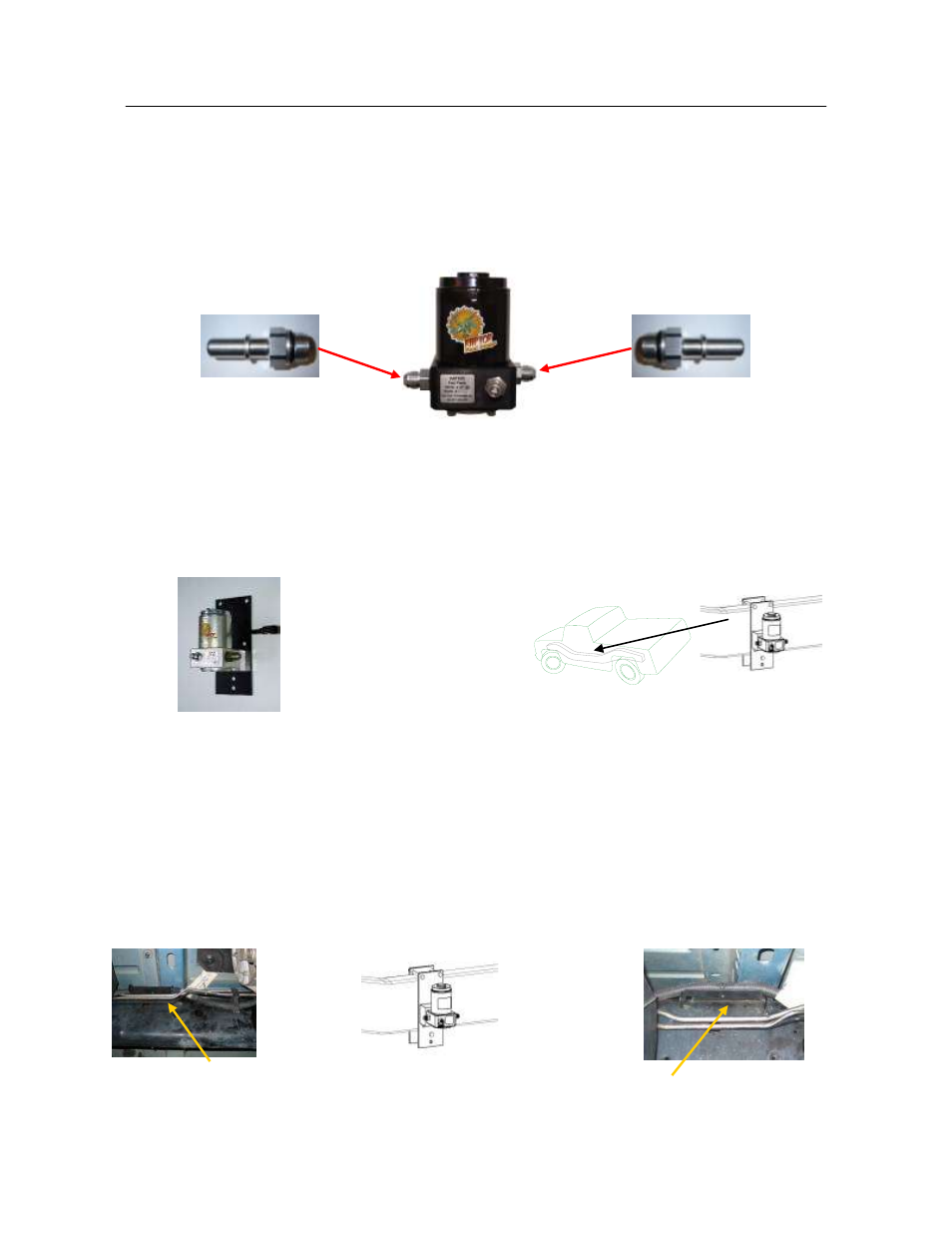

FUEL “IN” PORT FUEL “OUT” PORT
Figure 2
4-2. Install 1/2” O-ring Boss X 3/4” male fitting (08J2044-3/4UNF) into the port marked
“OUT”. Properly torque the fitting.
NOTE: The kitting provided is intended for inside or outside frame rail mounting. Mounting
inside the frame (Fig. 4) will give more protection from road debris.
Figure 3 Figure 4
4-3. Assemble the Raptor™ to the mounting bracket as shown in Fig. 3 with the supplied
allen head bolts. Hold the assembly next to the selected location on the frame to check for
clearance (Fig. 4). Adjust the Raptor™ up or down on the mounting bracket to clear fuel
lines or wiring on the frame. Use the spacer block to clear lines and wiring harnesses on
the frame. Be sure to tighten pump and spacer to frame bracket before moving to step 4-4
4-4. Loose assemble the mounting bracket and pump assembly to the frame with the backing
plate using the 4½” x 3/8” bolts, lock washers, and nuts. After satisfactorily positioning
the bracket and pump assembly, properly torque the fasteners before mounting the
brackets to the frame.
Figure 5
Figure 6
NOTE: Some pickup model frame rails have a bracket that is used to support the frame during
the manufacturing process. If this bracket is on your frame rail and obstructs the proper
positioning of the Raptor™ mounting bracket, you may remove it! Be very careful not to damage
the frame.
